99PERIODIC SERVICE
C Air suspension seat
BReplacing Light Bulb
1. Head light
Take the bulb out of the light body and replace with a
new one.
2. Other lights
Detach the lens and replace the bulb.
FUSE
No.
CAPACITY
(A)
Protected circuit
(1) 5A Meter backup
(2) 15A Flasher (Hazard)
(3) 15A Dome light, Brake lamp
(4) 15A Head light
(5) 25A Auxiliary power
(6) 15A Tail / Position lamp, Horn
(7) 10A
Air conditioner compressor,
Front side work light
(8) 25A Air conditioner (Fan motor)
(9) 15A Front work light
(10) 15A Rear work light
(11) 5A
Engine, PTO(Power Take Off ),
Alternator
(12) 5A Meter panel, Buzzer
(13) 10A Turn signal
(14) 10A Transmission control
(15) 5A Air conditioner, Auxiliary control
(16) 15A Wiper
(17) 10A Beacon
(18) 5A Audio (Radio)
(19) 15A Cigarette lighter
(20) 5A Starter relay
(21) 30A Main key
(22) 30A Auxiliary Power
(23) 120A Charge
(24) 120A Heater
(25) 60A Head light, Flasher, Dome light
(26) 60A Air conditioner (Fan motor)
(A) 25A
Spare
(B) 15A
(C) 10A
(D) 5A

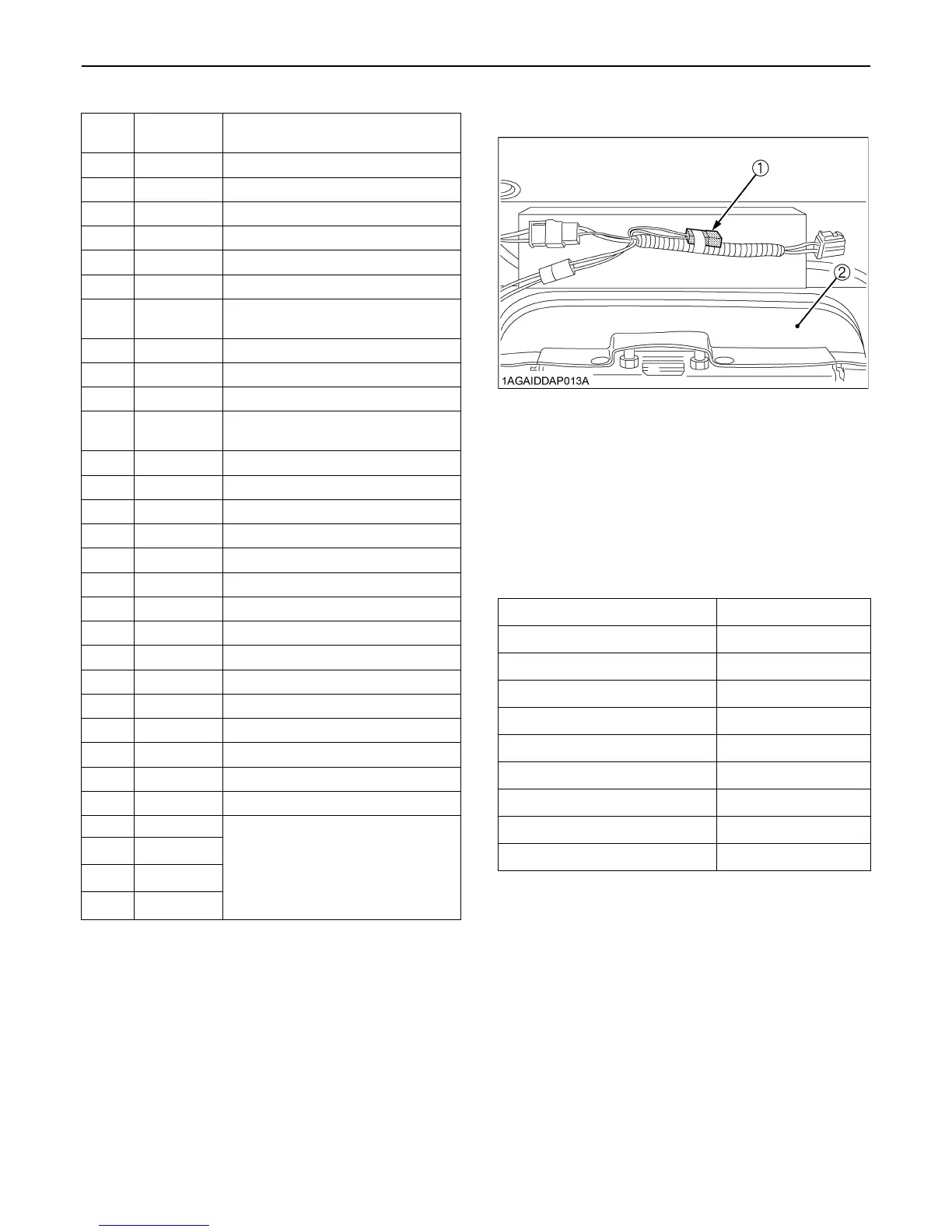

(1) Fuse (15 A)
(2) Seat
Light Capacity
Head light 60 / 55 W
Tail light 10 W
Turn signal / hazard light (Front) 21 W
Turn signal / hazard light (Rear) 21 W
Brake stop light 21 W
Front work light (Front side) 21 W
Work light 55 W
Dome light (room lamp) 10 W
Sidemarker light 10 W
