PARTS
OM 0297SB-AU 39

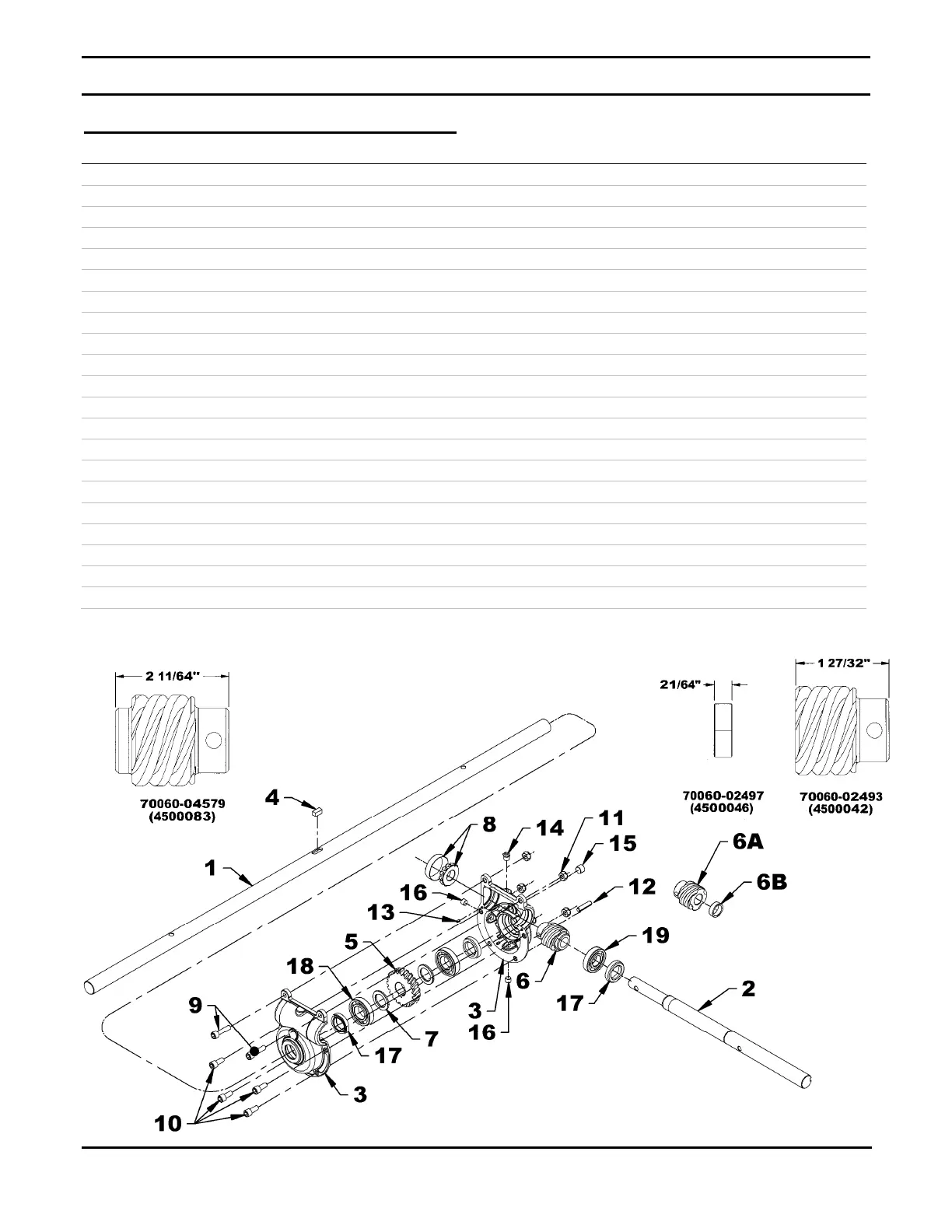

WORM GEAR BOX (70060-02702)
REF. DESCRIPTION QTY # PART CODE
1
Output shaft 39"
1 70060-02703 4500055
2
Input shaft 17 3/16"
1 70060-02492 4500041
3
Gear box casing (2 shells)
1 70060-02491 4500040
4
Key 5/16" x 5/16" x 5/8"
1 70060-02499 4500048
5
Helicoïdal gear
1 70060-02494 4500043
6
Worm
1 70060-04579 4500083
6a
Worm without shoulder
1 70060-02493 4500042
6b
Spacer ring
1 70060-02497 4500046
7
Spacer
2 70060-02496 4500045
8
Tapered roller bearing 47mm ext. 20mm int.
1 70060-02500 4300049
9
Allen socket head cap screw 5/16"NC x 1 1/4" GR5 PTD
2 70060-02504 0800035
10
Allen socket head cap screw 5/16"NC x 3/4" GR5 PTD
4 70060-02503 0800034
11
Nylon insert lock nut 5/16"NC PTD
6 O/L 1000005
12
Spring pin 5/16" x 1 1/4"
1 70060-01909 663243
13
Dowel pin M4 x 6mm
2 70060-02498 4500047
14
Breather 1/8"NPT
1 70060-00840 654927
15
Allen plug 1/4"NPT
1 70060-70419 663570
16
Allen plug 1/8"NPT
2 70060-01428 656090
17
Oil seal 47mm ext x 25mm x 7mm
3 70060-02502 4300051
18
Ball bearing 52mm ext. 1" int.
2 70060-02517 4300046
19
Ball bearing 47mm ext. 20mm int.
1 70060-02501 4300050
