4. Reinstall the precleaner over the paper element and
install the assembly on the base.
5. Reinstall the air cleaner cover and secure it with 2
knobs.
NOTE :
• Operating in dusty condition may require
more frequent maintenance than above.
EVERY 50 HOURS
1. Checking brake pedal
WARNING
To avoid serious injury or death:
• When making adjustments, park the machine on
a flat area, block wheels, stop engine and
remove the key.

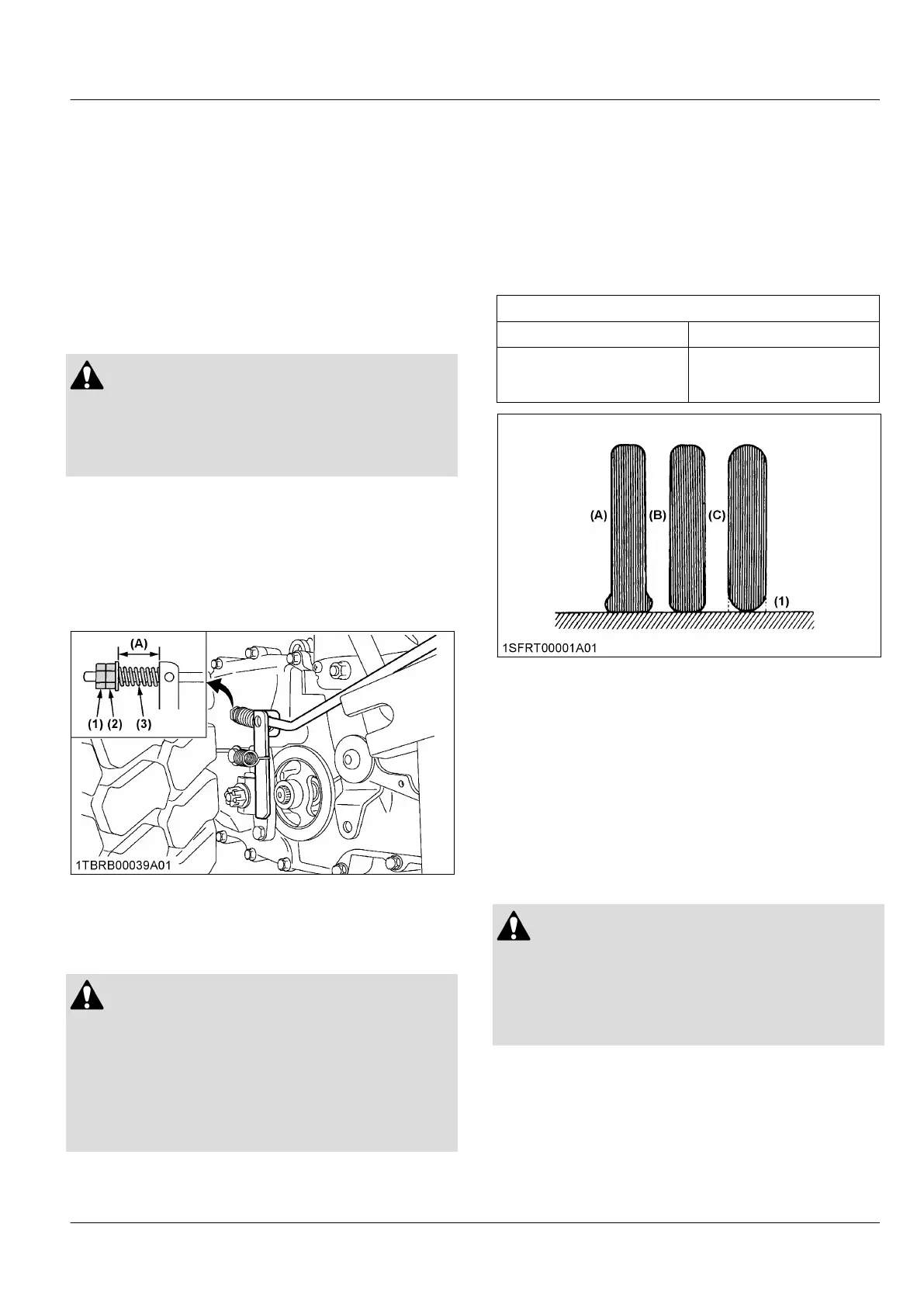

1. Check the length of brake spring when the parking
brake is applied. Correct length ranges from 28 to
29 mm (1.1 in.).
2. If it is not correct, loosen the lock nut (1) and turn
the nut (2) in the desired direction until the proper
play is achieved.
3. After adjustment, retighten lock nut securely.
(1) Lock nut
(2) Nut
(3) Spring
(A) Length 28 to 29 mm (1.1 in.)
2. Checking the tire pressure
WARNING
To avoid serious injury or death:
• Do not attempt to mount a tire on a rim. This
should be done by a qualified person with the
proper equipment.
• Always maintain the correct tire pressure.
Do not inflate the tires above the recommended
pressure shown in the operator's manual.
IMPORTANT :
• Do not use tires larger than specified.
2.1 Inflation pressure
Though the inflation pressure is factory-set to the
prescribed level, it naturally drops slowly in the course
of time. Thus, check it and inflate as necessary.
Normal wheel tire pressures cold
Front Rear
100 kPa
14 psi
1.0 kgf/cm
2
110 kPa
16 psi
1.1 kgf/cm
2
(1) Ground (A) “INSUFFICIENT”
(B) “NORMAL”
(C) “EXCESSIVE”
IMPORTANT :
• When jacking up the rear tires, be sure
1. To block the front tires.
2. To position a jack inside beside either of the
supporting plates.
EVERY 100 HOURS
1. Changing engine oil
WARNING
To avoid serious injury or death:
• Be sure to stop the engine and remove the key
before changing the oil.
• Allow the engine to cool down sufficiently. Oil
can be hot and may cause burns.
T2090BR
Every 100 hours of operation or annually change the
engine oil.
1. To change the used oil, unhook the drain hose,
direct the hose down and open the drain valve.
The used oil can be drained out more easily if the
engine is warm.
EVERY 50 HOURS PERIODIC SERVICE
T2090BR-AU,T2290KW-AU,T2290KWT-AU
