3. Tighten or loosen the adjusting nut as needed to
achieve the 0.4 mm (0.015 in.) air gap. Perform this
operation at all 3 inspection windows.
(A) Electric clutch
(Q) Adjustment nut
This adjustment should be done every 500 hours of
operation or annually, whichever comes first. In
case the machine is heavily used, air gap settings
should be checked more often.
If the air gap is too narrow, the clutch armature may
drag when disengaged, resulting in premature
failure.
2. Cleaning combustion chamber
(T2090BR)
If you do not have the proper tools and/or are not
mechanically proficient, consult your local KUBOTA
Dealer for this service.
EVERY 600 HOURS
1. Replacing transaxle filter
(T2290KWT)
WARNING
To avoid serious injury or death:
• Park the machine on a firm and level surface.
• Apply the parking brake.
• Be sure to stop the engine and remove the key
before changing or checking the oil.
• Allow the transmission case to cool down
sufficiently, as oil can be hot and may cause
burns.
1. Apply the bypass valve.
2. Remove the hex head bolts (4), and filter guard (3).
Clean any loose debris from around the perimeter
of the oil filter (2).
3. Place an oil drain pan (12" or more diameter and 8
qt. capacity is optimal) beneath the oil filter.
Remove the oil filter (2) and discard it.
NOTE :
• Always replace the filter when preforming
any internal maintenance to the transaxle.
4. After the oil has drained, inspect all parts for
excessive wear or damage. Replace if necessary.
5. Wipe the filter base surface off and apply a film of
new oil to the gasket of the new replacement filter
(Hydro-gear part number 52114).
6. Install the new filter by hand, turn 3/4 to 1 full turn
after the filter gasket contacts the filter base
surface.

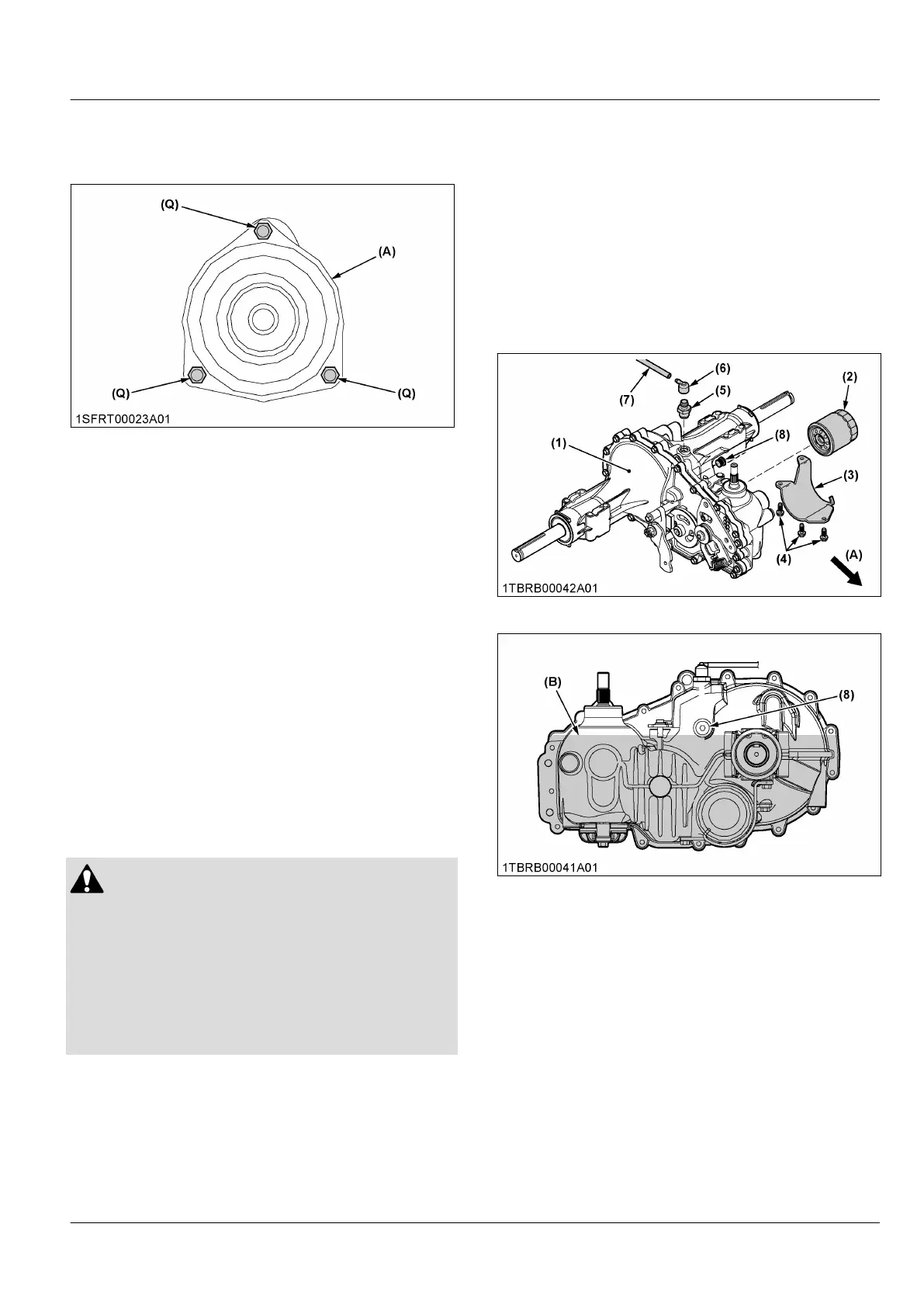

Left side view of transaxle
(1) Transaxle
(2) Transaxle oil filter
(3) Filter guard
(4) Hex flange head bolt
(5) Metal fitting assembly
(6) Barbed cap
(7) Hose
(8) Oil level check port plug
(A) “FRONT”
(B) “OIL LEVEL”
7. Re-install the filter guard (3) with 3 hex head bolts
(4). Torque bolts (4) to 7.35 N⋅m (5.42 lbf⋅ft)
securely.
8. Remove the oil level check port plug (9) from the
transaxle prior to filling with oil. This will allow the
transaxle to vent during oil fill.
9. Remove the hose (7), the barbed cap (6) and the
metal fitting assembly (5).
EVERY 500 HOURS PERIODIC SERVICE
T2090BR-AU,T2290KW-AU,T2290KWT-AU
