6. Operate the machine.
• Motion control lever on page 39
• Stop position of the motion control lever on
page 39
• Operating position of the motion control lever on
page 39
• Re-start on slopes on page 41
1. Operator's seat
WARNING
To avoid serious injury or death:
• Make adjustments to the seat only while the
machine is stopped.
• Make sure that the seat is completely secured
after each adjustment.
• Do not allow anyone other than the driver to
ride on the machine.

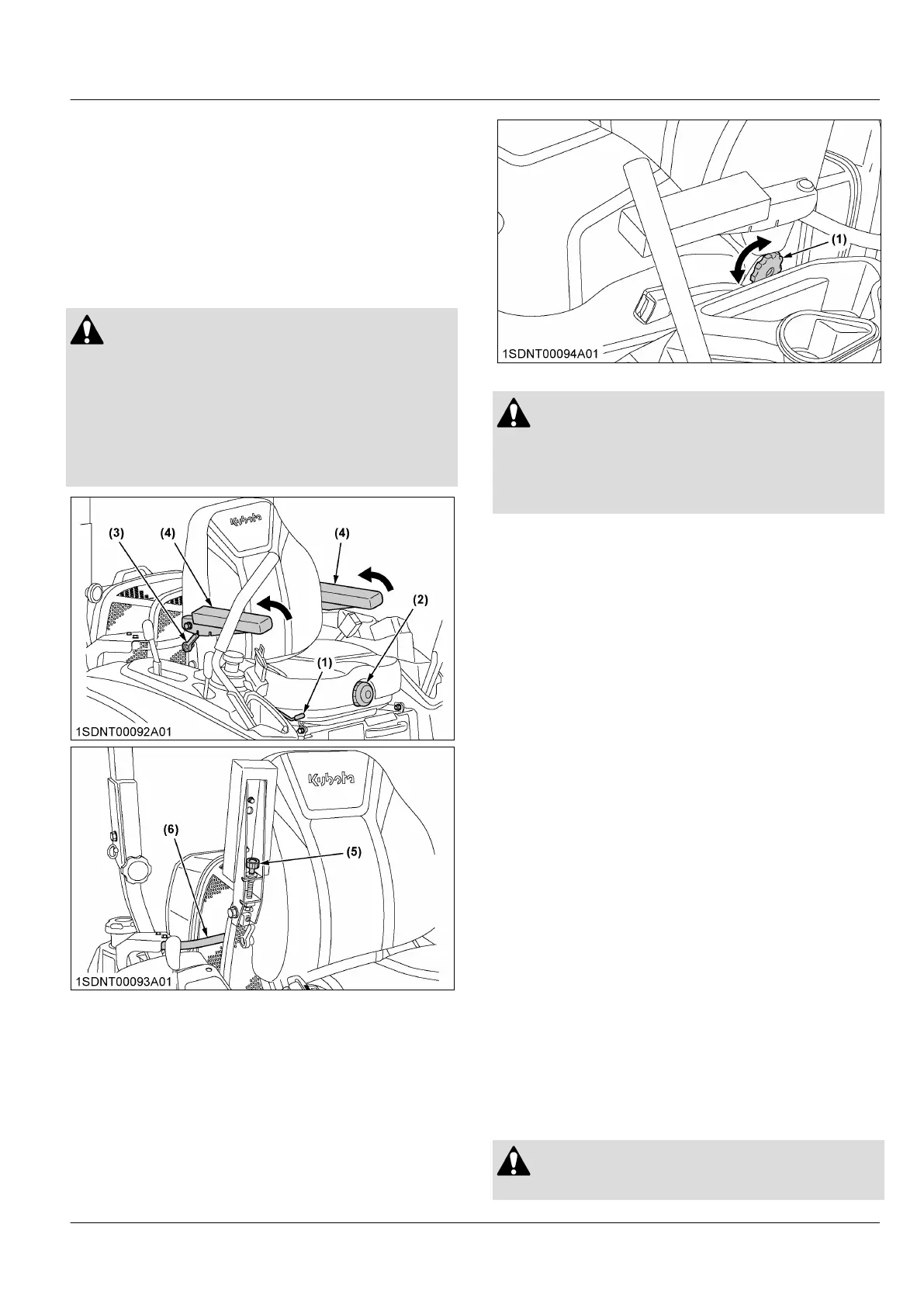

(1) Travel adjust lever
(2) Suspension adjust knob
(3) Lumbar support adjust lever
(4) Arm rest
(5) Arm rest angle adjuster
(6) Bypass pipe
(1) Backrest tilt adjust knob
WARNING
To avoid serious injury or death:
• Use extra caution when unlocking the travel
adjust lever because the seat might slide
forward by itself.
Travel adjustment
Unlock the travel adjust lever and slide the seat
backward or forward, as required. The seat will lock in
position when the lever is released.
Suspension adjustment
Turn the suspension adjust knob to achieve the
optimum suspension setting.
Lumbar support adjustment
Turn the lumbar support adjust lever to the desired
position.
Arm rest
Arm rest may be set at upright position if desired.
Arm rest angle adjustment
Turn the arm rest angle adjuster to the desired angle.
Backrest tilt adjustment
Turn the backrest tilt adjust knob to the desired angle.
IMPORTANT :
• After adjusting the operator's seat, be sure to
check to see that the seat is properly locked.
NOTE :
• Depending on the seat adjustment level, the
seat may contact the bypass pipe during
operating. In case of contact, readjust the travel
adjust lever, the suspension adjust knob, the
backrest tilt adjust knob or the lumbar support
adjust lever.
2. Seat belt
WARNING
To avoid serious injury or death:
STARTING THE MACHINE OPERATING THE MACHINE
