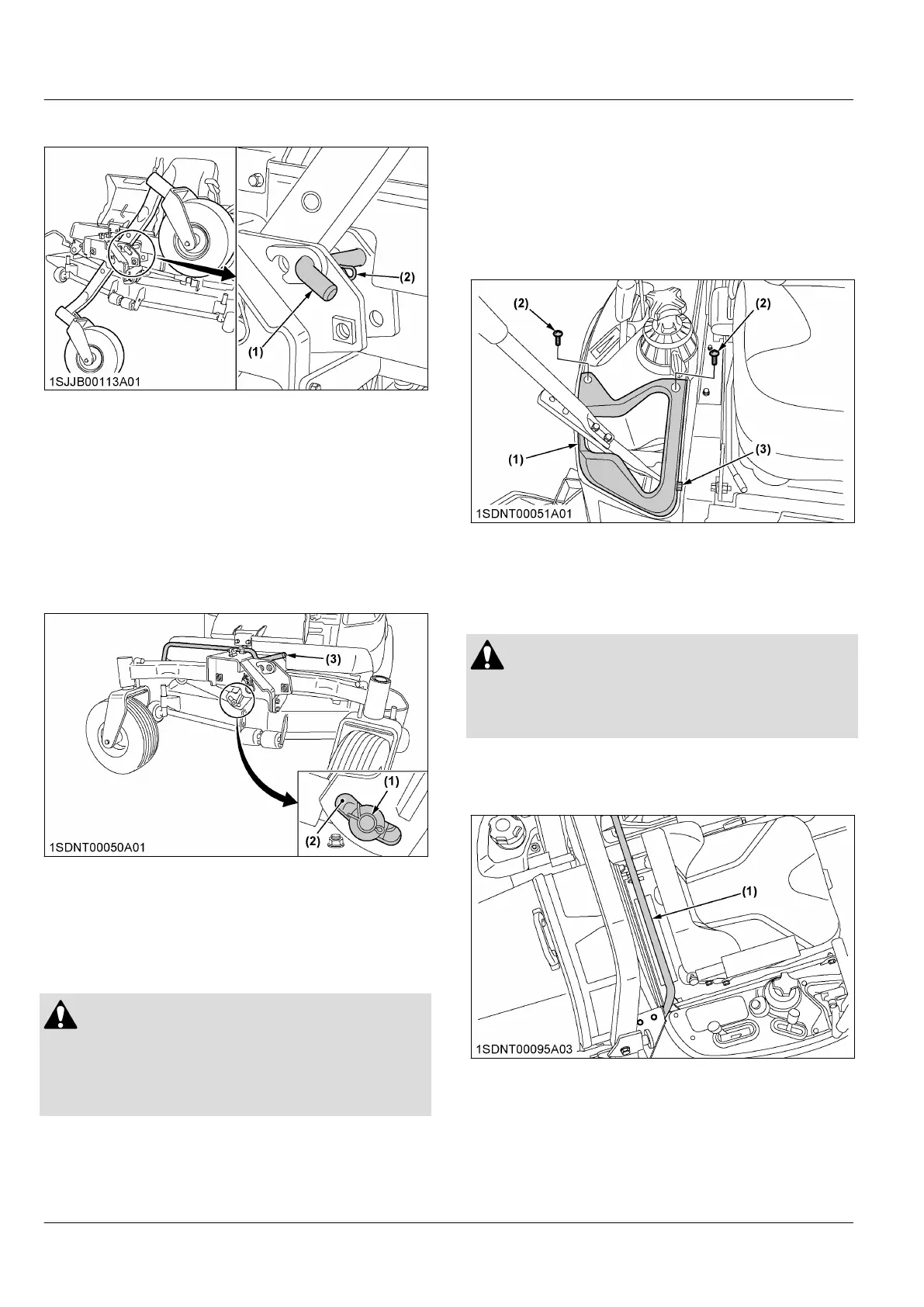

9. Insert the snap pin.
(1) L-pin
(2) Snap pin
Return to the normal position.
Reverse to the above procedure.
IMPORTANT :
• To ensure equal oscillation of the axle and
prevent loss of parts.
Be sure the clevis pin returns to the center
position of the front axle arm slot.
And be sure to install removed parts.
(1) Clevis pin
(2) Slot
(3) Tilt lever
OPENING THE LEVER GUIDE
WARNING
To avoid serious injury or death:
• Park the machine on a firm and level surface.
• Stop the engine, remove the key and apply the
parking brake.
1. Remove the screw of the lever guide.
2. Pull up the lever guide.
How to install the lever guide.
1. Install the lever guide.
2. Tighten the screw.
IMPORTANT :
• If the lever guide is out of alignment with the
motion control lever, move the lever guide to
align it with the motion control lever.
(1) Lever guide
(2) Screw
(3) Screw
LIFT-UP POINT
WARNING
To avoid serious injury, death or machine damage:
• Do not work under the machine unless it is
secured by safe stands or suitable blocking.
IMPORTANT :
• When you lift the unit, do not lift the bypass
pipe between the fuel tanks LH and RH.
(1) Bypass pipe
PERIODIC SERVICE OPENING THE LEVER GUIDE
