Kubota ZD1211-AU User Manual

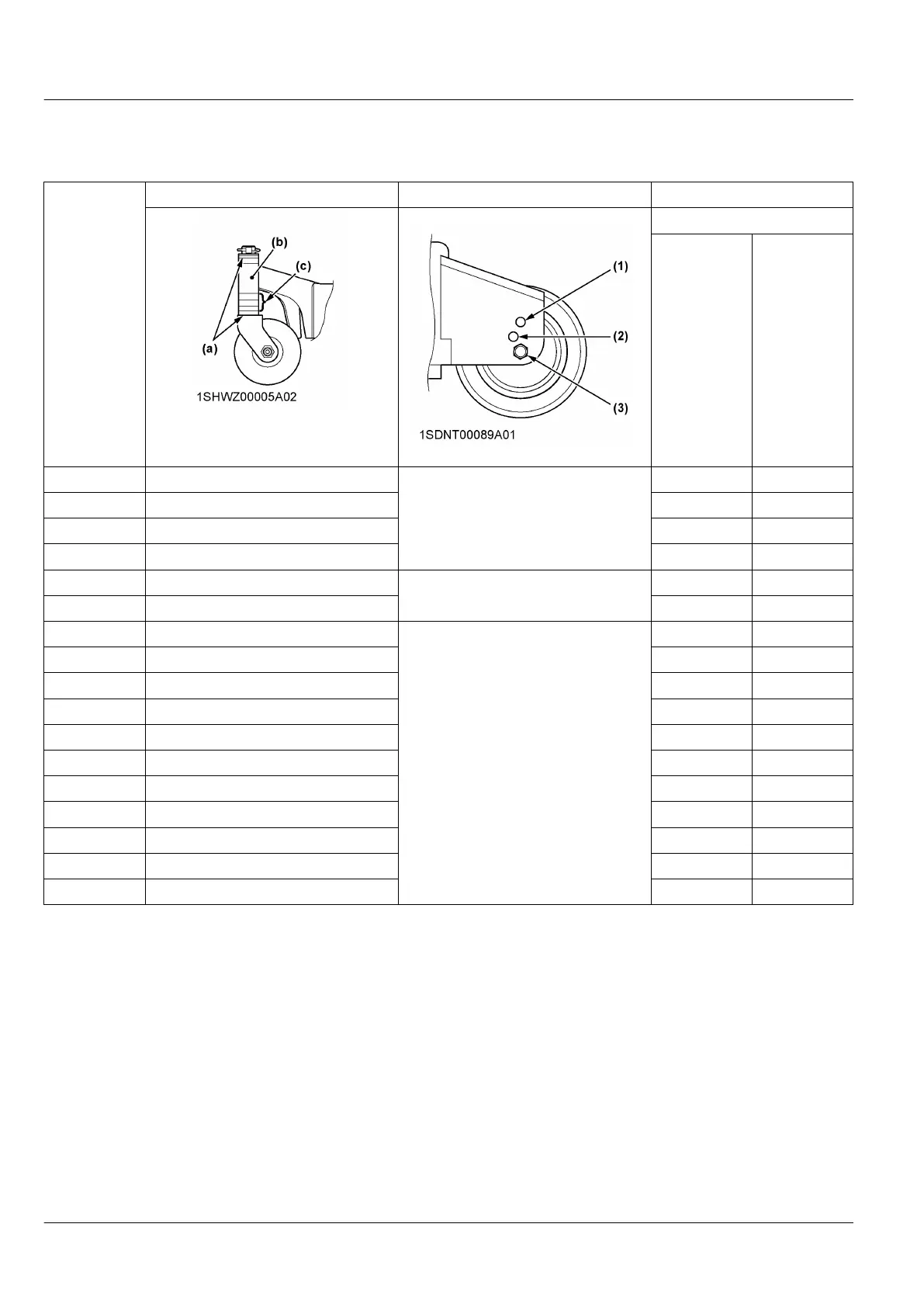

1. Cutting height reference chart
• Set position for recommended ground clearance 19 mm (0.75 in.).
Cutting height
inch (mm)
The number of collars under the boss Position of bolts Ground clearance mm (Ref.)
(a) Plain washer
(b) Boss
(c) Collar
Rear anti-scalp roller
Pin shift type
Bolt shift type
1.00" (25) 0
1
6 6
1.25" (32) 0 13 12
1.50" (38) 0 19 19
1.75" (44) 1 13 25
2.00" (50) 1
2
19 19
2.25" (58) 2 13 25
2.50" (64) 2
3
19 19
2.75" (70) 3 13 25
3.00" (76) 3 19 (31)
*1
3.25" (83) 4 13 (38)
*2
3.50" (89) 4 19
*3
(44)
*2
3.75" (95) 4 13
*2
(51)
*2
4.00" (102) 4 19
*2
(57)
*2
4.25" (108) 4 13
*2
(63)
*2
4.50" (114) 4 19
*2
(70)
*2
4.75" (121) 4 25
*2
(76)
*2
5.00" (127) 4 31
*2
(83)
*2
*1 For cutting heights above 3.0". The anti-scalp rollers will still be effective against scalping.
*2 Use it if necessary.
*3 For cutting heights above 3.5". The anti-scalp rollers will still be effective against scalping.
OPERATING THE MOWER ADJUSTING THE CUTTING HEIGHT
46
ZD1211,ZD1221

Kubota ZD1211-AU Specifications

General

Engine Type	Diesel
Engine Model	Kubota D1105
Engine Power	24.8 HP
Transmission	Hydrostatic
Deck Material	Steel
Deck Type	Fabricated
Cutting Height Range	25-127 mm (1-5 in)
Speed Range	0-8.5 mph
Type	Zero-Turn Mower
Cutting Width	60 inches (152 cm)
