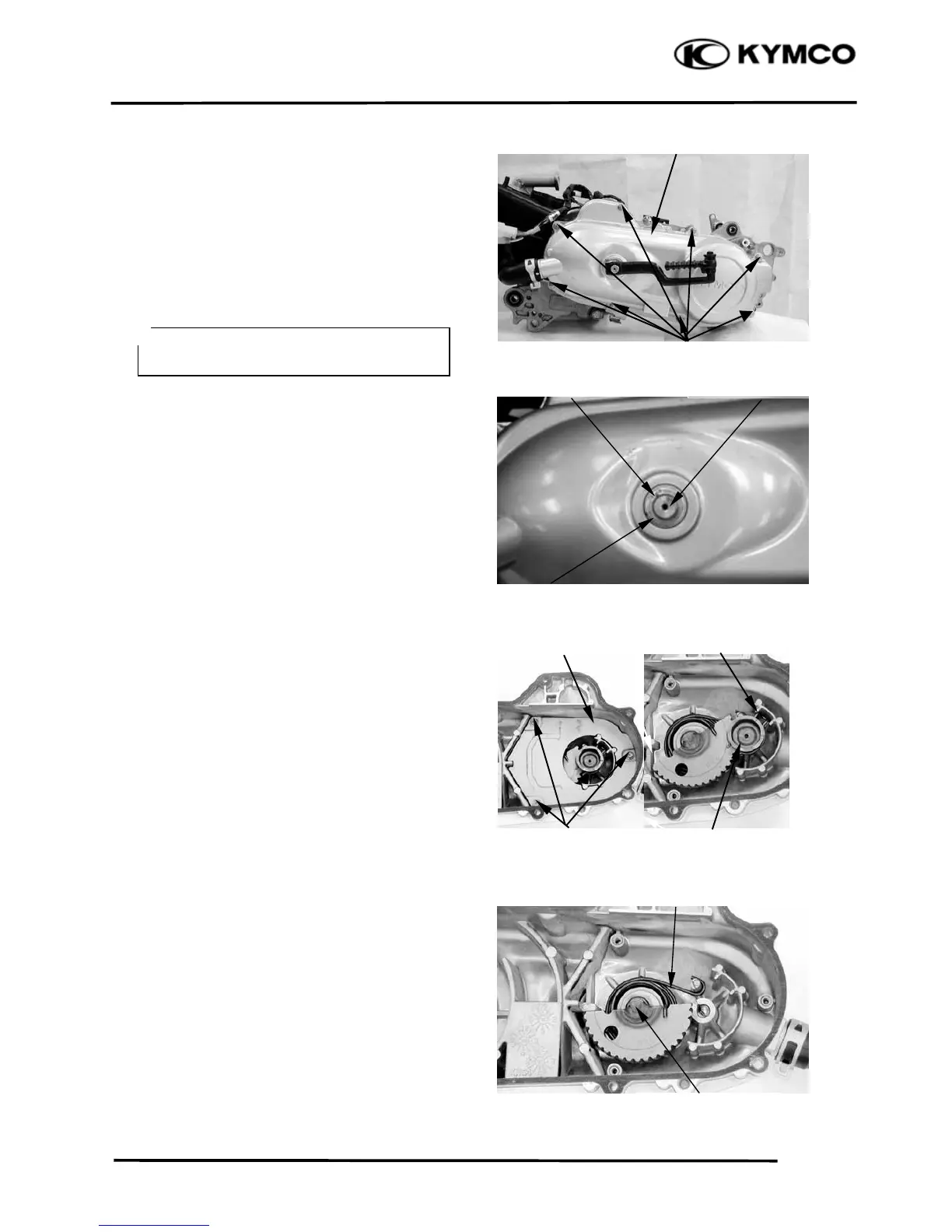

LEFT CRANKCASE COVER/KICK
STARTER
REMOVAL
Remove left foot board. (See page 2-7)
Remove the eight left crankcase cover bolts
and left crankcase cover.
Remove the gasket and dowel pins.
KICK STARTER
DISASSEMBLY
Remove the kick lever from the kick starter
spindle.
Remove the circlip and washer from the kick
starter spindle.
Remove three bolts at the kick starter spindle
cover, then remove kick starter spindle cover.
Gently turn the kick starter spindle to remove
the starter driven gear together with the
friction spring.
Remove the kick starter spindle and return
spring from the left crankcase cover.
Remove the kick starter spindle bushings.
Return Spring
Kick Starter S
p
indle
Friction Spring
Starter Driven Gea
r
Kick Starter S
p
indle
Circlip
Washe
r
Bolts
Left Crankcase Cove
r
Bolts
Kick Starter Spindle
Cover
Use specified genuine parts fo
r
replacement.
＊
