3. INSPECTION/ADJUSTMENT
3-12

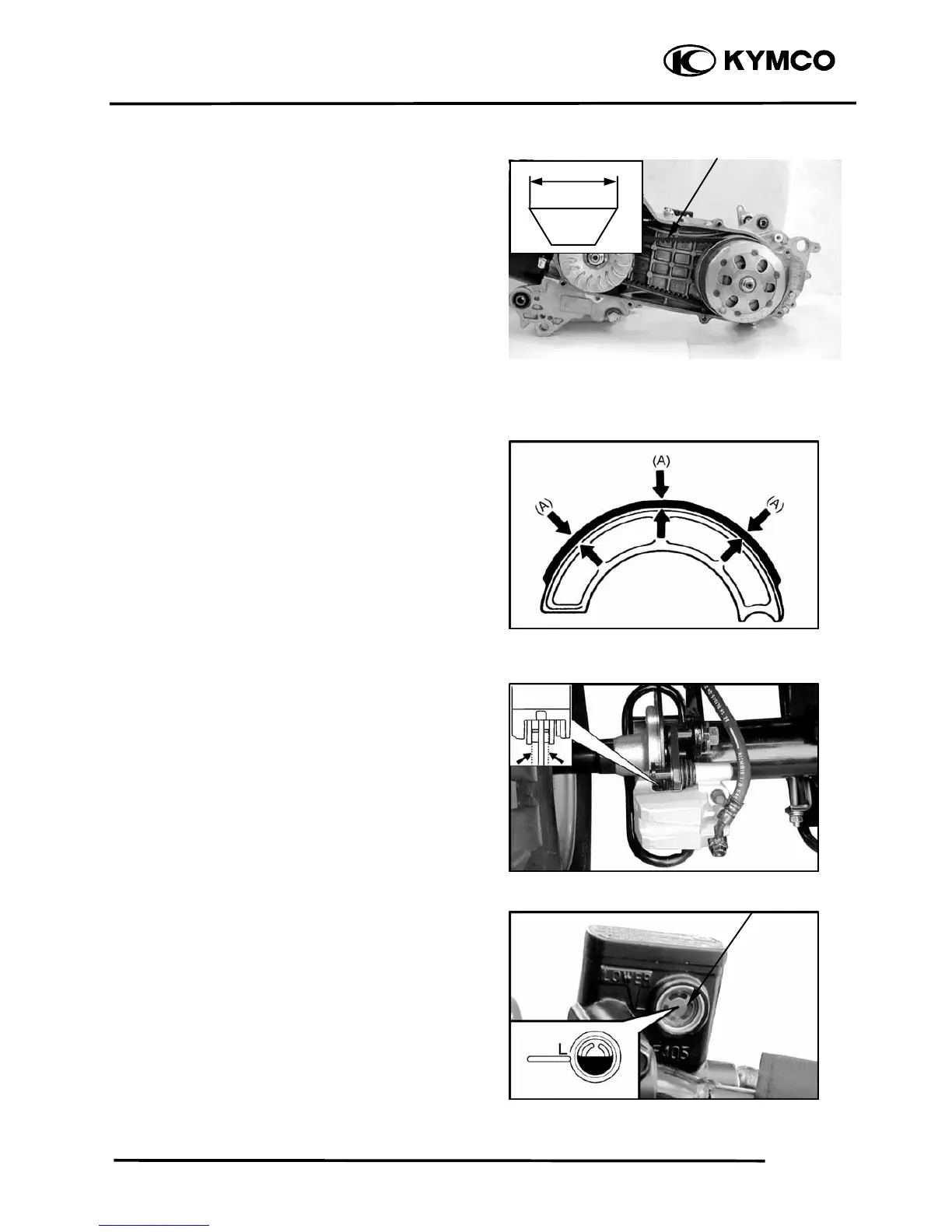

DRIVE BELT
Remove the left crankcase cover.
Inspect the drive belt for cracks, scaling,
chipping or excessive wear.
Measure the V-belt width
Service limit:
90cc: 16.5 mm (0.66 in)
70cc: 16.5 mm (0.66 in)
50cc-4T: 17 mm (0.68 in)
50cc-2T: 17.5 mm (0.7 in)
Replace the drive belt if out of specification.
BRAK SHOES
The checking of brake shoes wear will
disassemble the brake. If the lining
thickness below to the wear limit (A) 2 mm
(0.08 in), to replace the shoes as a set.
BRAKE PADS
A wear indicator is provided on each brake.
The indicators allows checking of brake
pads wear. Check the position of the
indicator. If the indicator reaches the wear
limit line, to replace the pads.
BRAKE FLUID
Check if the fluid level is below the lower
level mark through the inspection window.
