15. IGNITION SYSTEM
15-5

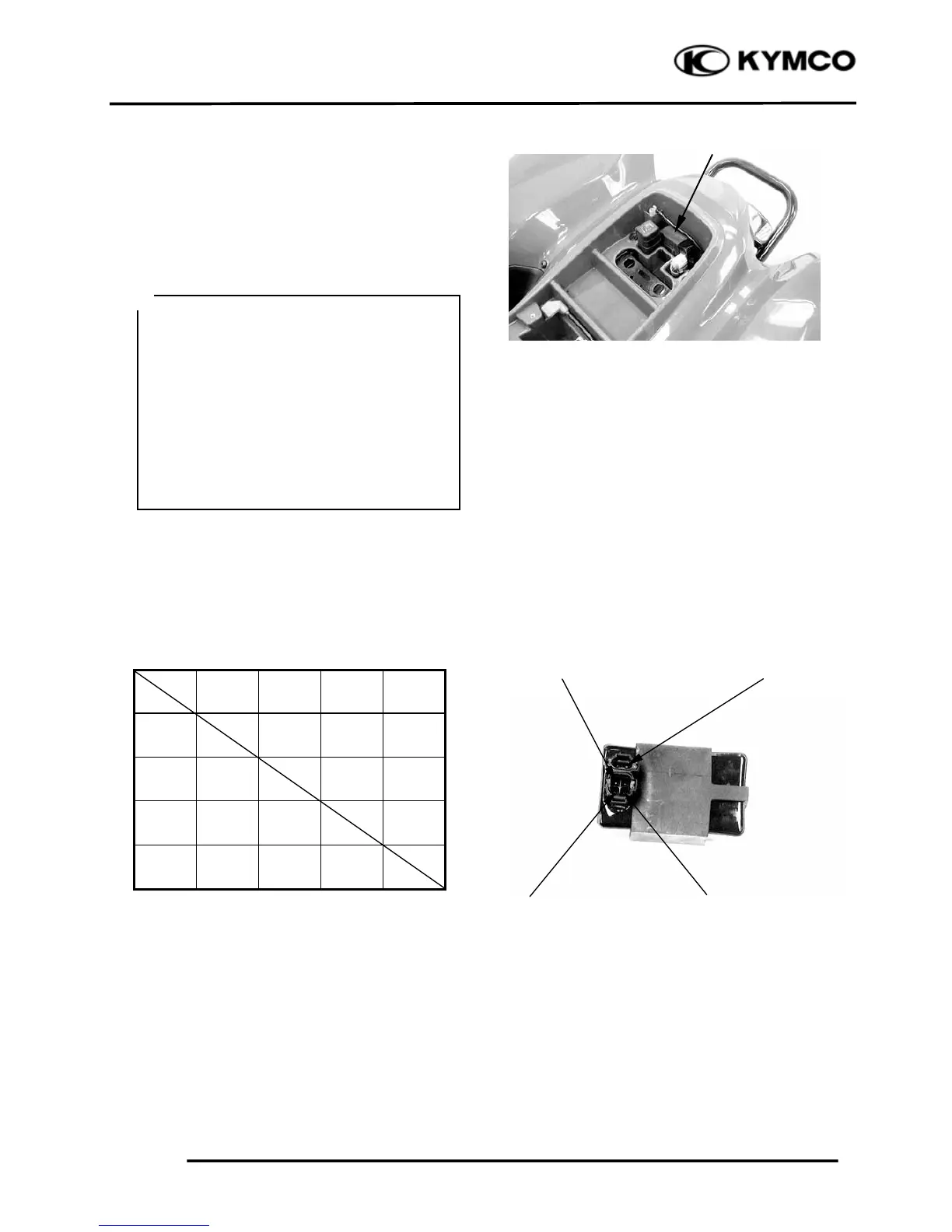

CDI UNIT INSPECTION
Remove seat. (
Ö
2-3)
Disconnect the CDI coupler and remove the
CDI unit.
Measure the resistance between the
terminals using the electric tester.
90cc/70cc/50cc-4T (OFF ROAD) Unit: MΩ
Probe⊕
(
-
)
Probe
Black
Black/
Yellow
Blue/
Yellow
Green
Black ∞∞∞
Black/
Yellow
∞∞∞
Blue/
Yellow
∞∞ ∞
Green 4.9~5.5 4.9~5.5 4.9~5.5
Note: The readings in this table are taken
with a YF-3501 Tester.
CDI Uni
t
Green
Black
Black
/
Yellow
Blue/Yellow
• Due to the semiconductor in circuit, it is
necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
• Use a YF-3501 Electric Tester.
• In this table, “Needle swings then
returns” indicates that there is a charging
current applied to a condenser. The needle
will then remain at “∞” unless the
condenser is discharged.
＊
