3. INSPECTION/ADJUSTMENT
3-17
Inspect the wheel.
Replace if damage or bends
Always balance the wheel when a tire or
wheel has been changed or replaced.
DRIVE CHAIN SLACK
ADJUSTMENT
Before checking and/or adjusting, rotate the
rear wheels several revolutions and check
slack at several points to find the tightest
point. Check and/or adjust the chain slack
with the rear wheels in this “tightest”
position.
Place the machine on a level place.

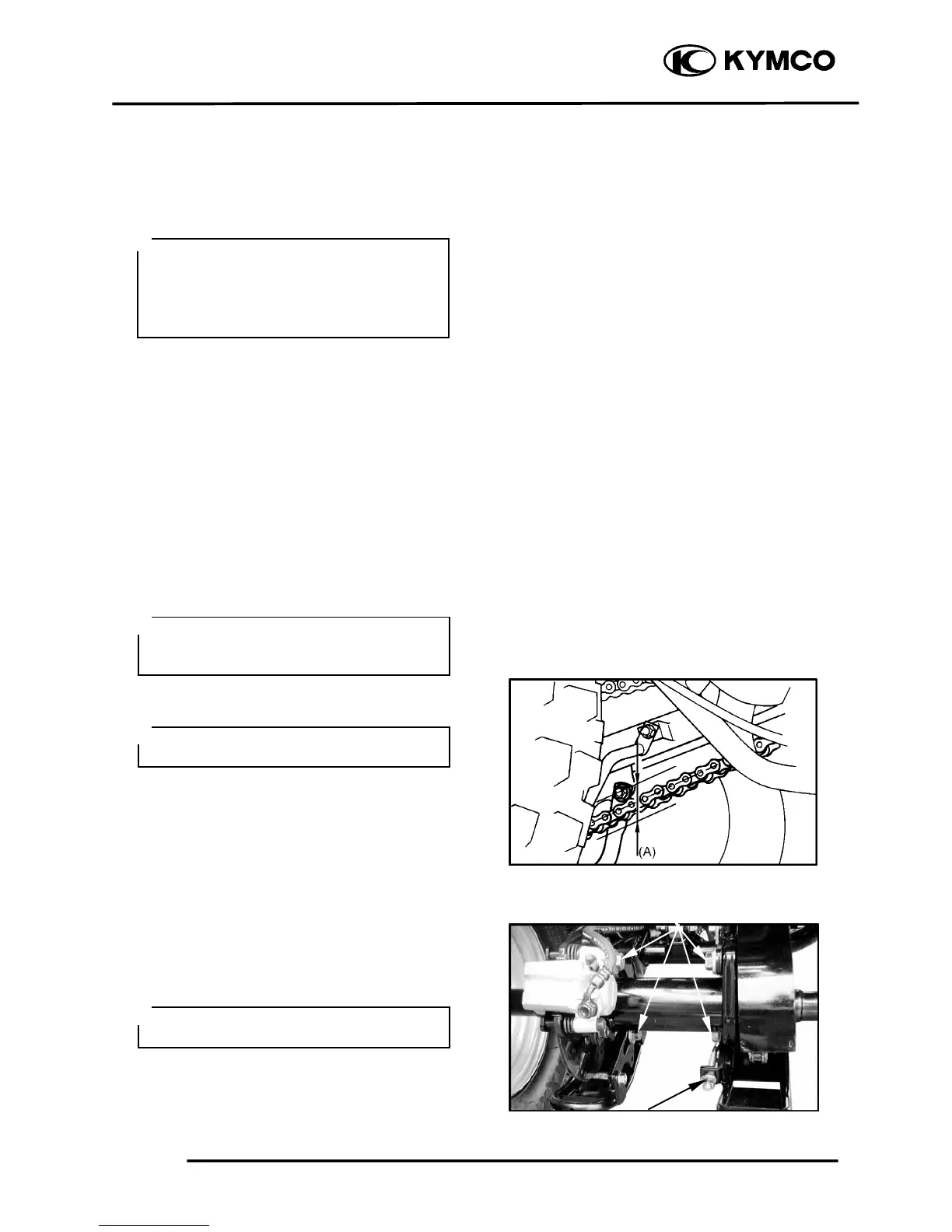

Check drive chain slack (A).
Adjust if out of specification.
Drive chain slack:
Approximately 10~20 mm (0.4~0.8 in)
Adjust drive chain slack:
Elevate the rear wheels by placing a suitable
stand under the rear of frame.
Loosen the upper and lower axle holding
bolts.
Bolts
• Never attempt even small repairs to the
wheel.
• Ride conservatively after installing a
tire to allow it to seat itself properly on
the rim.
＊
Too little of chain slack will overload the
engine and other vital parts; keep the
To Next Page
