Brake Shoes
INSTALLATION

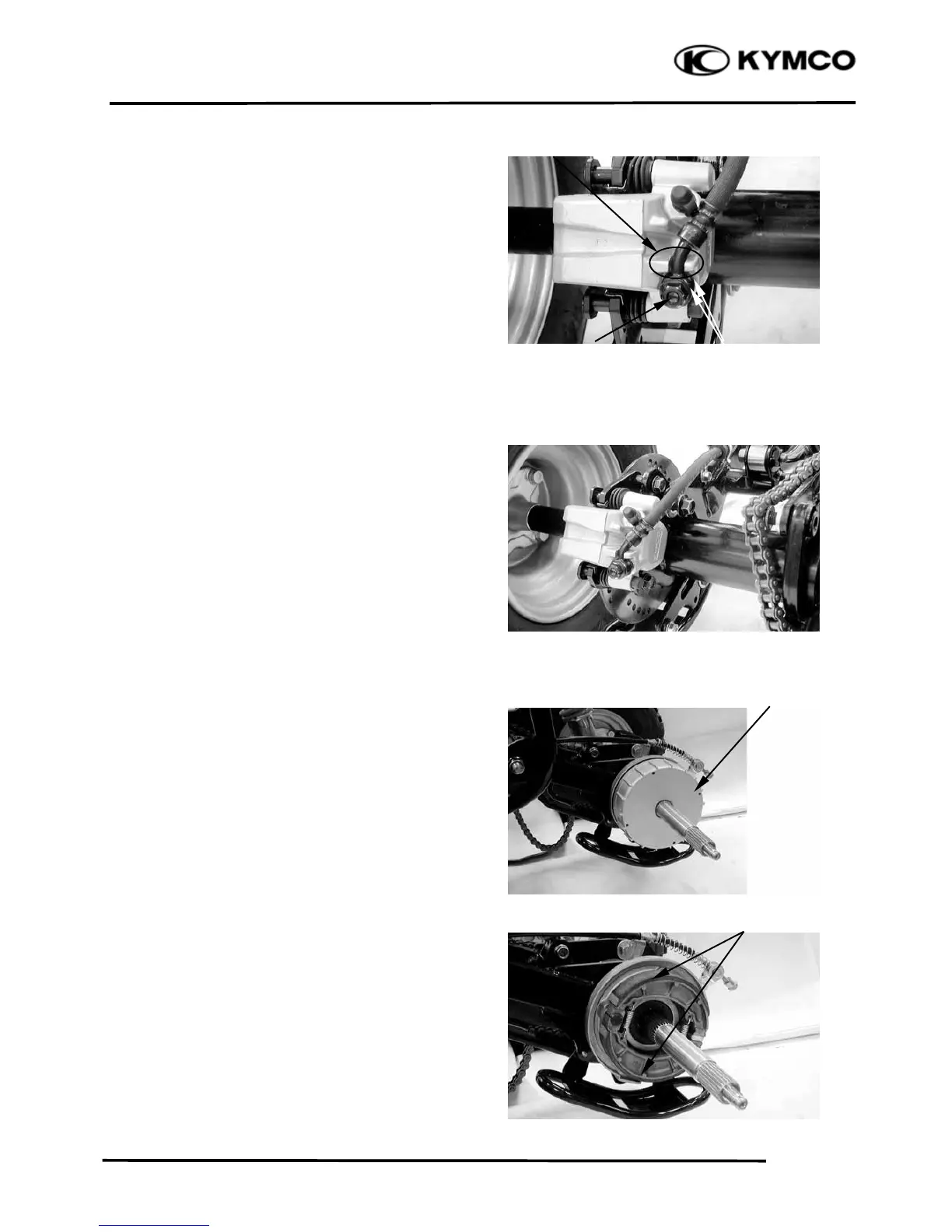

Connect the brake fluid tube to the brake
caliper, aligning the fluid tube with groove
in the caliper and tighten the fluid tube bolt.
Torque: 35 N-m (3.5 kgf-m, 25 lbf-ft)
Add the recommended brake fluid into the
brake reservoir and bleed air from the brake
system. (
Refer to 13-15.
)
Install the brake caliper onto rear axle hub
and tighten the bolts.
Torque: 32 N-m (3.2 kgf-m, 23 lbf-ft)
DRUM BRAKE
REMOVAL
Remove wheel hub and axle hub. (See page
13-5)
Remove brake drum.
Remove brake shoes.
To Next Page
