14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
14-6

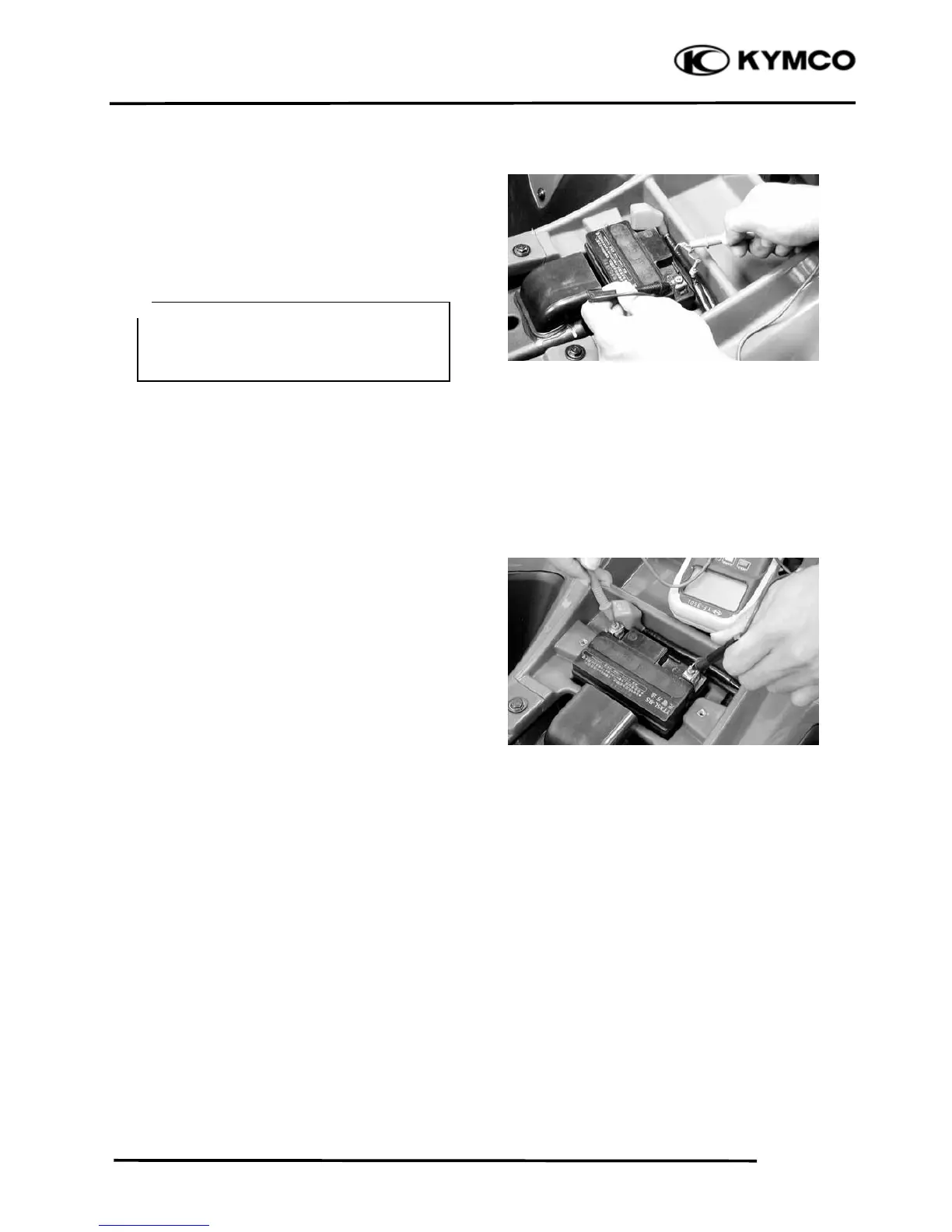

CHARGING SYSTEM
SHORT CIRCUIT TEST
Disconnect the ground wire from the battery
and connect an ammeter across the battery
negative (-) terminal and the ground wire.
Turn the ignition switch OFF and check for
short circuit.
If any abnormality is found, check the
ignition switch and wire harness for short
circuit.
CHARGING VOLTAGE TEST
This inspection must be performed with an
electric tester when the battery is fully
charged.
Warm up the engine for inspection.
Connect the electric tester across the battery
terminals.
Attach a tachometer to the engine.
Start the engine and gradually increase the
engine speed to measure the limit voltage.
Limit Voltage:13.5～15.5V (5000rpm
max.)
If the limit voltage is not within the
specified range, check the
regulator/rectifier.
Connect the electric tester positive (+)
terminal to ground wire and the tester
negative (-) terminal to the battery
negative (-) terminal.
＊
To Next Page
