13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-16

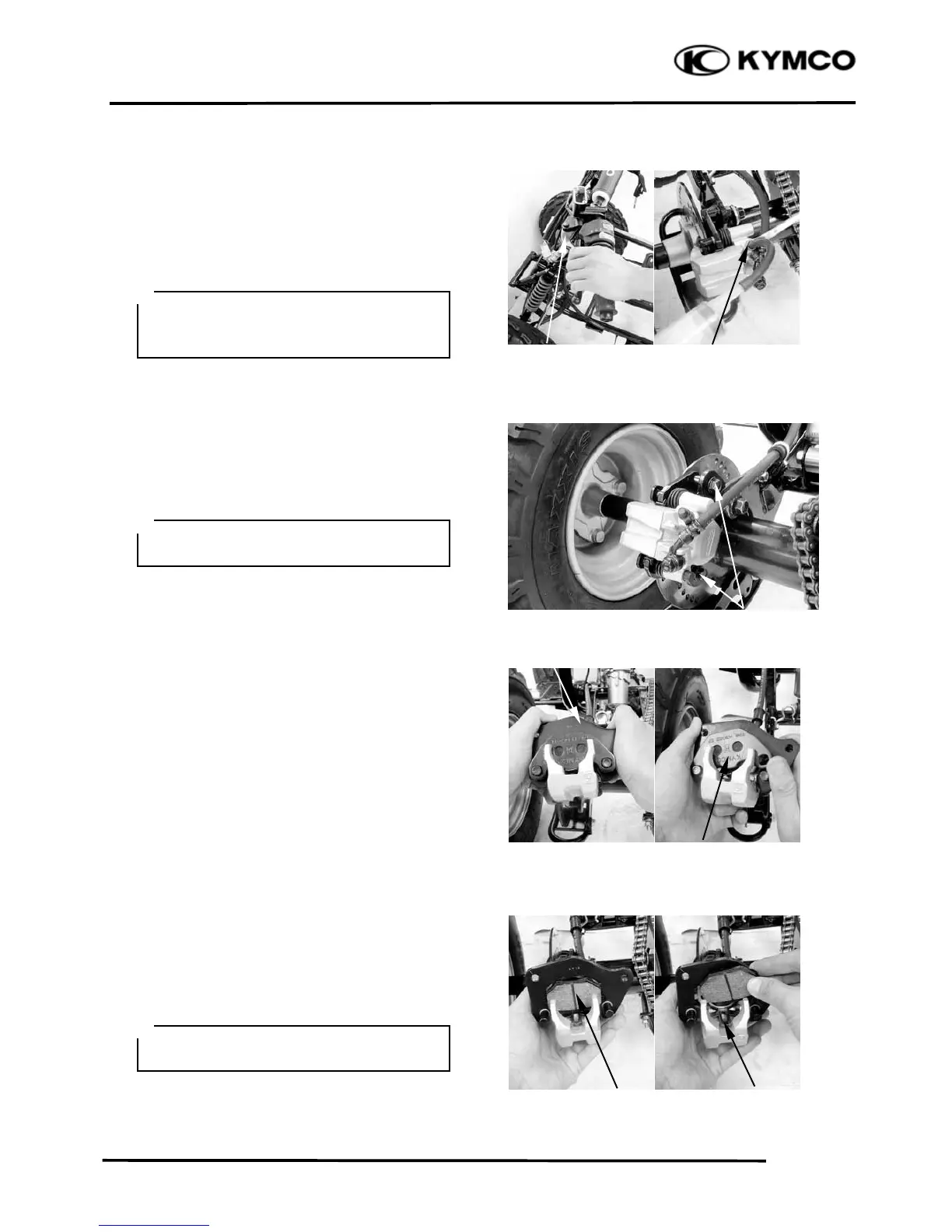

BRAKE SYSTEM BLEEDING
Connect a transparent hose to the bleed
valve and fully apply the brake lever after
continuously pull it several times. Then,
loosen the bleed valve nut to bleed air from
the brake system. Repeat these steps until
the brake system is free of air.
BRAKE PAD/DISK
BRAKE PAD REPLACEMENT
Remove the two bolts attaching the brake
caliper holder.
Remove the brake caliper.
Push the brake caliper holder and then
remove brake pad.
Remove the other brake pad.
ASSEMBLY
Assemble the brake pads in the reverse
order of removal.
Brake Leve
Pad Spring
Bolts
Brake Bad
Brake Bad
Make sure the pad spring has fitted.
＊
When bleeding air from the brake system,
the brake fluid level should be kept over
1/2 of the brake reservoir height.
＊
The brake pads can be replaced without
removin
To Next Page
