Kyocera ECOSYS M2030dn/PN User Manual

2PK/2PL/2PM/2PN
1-5-46

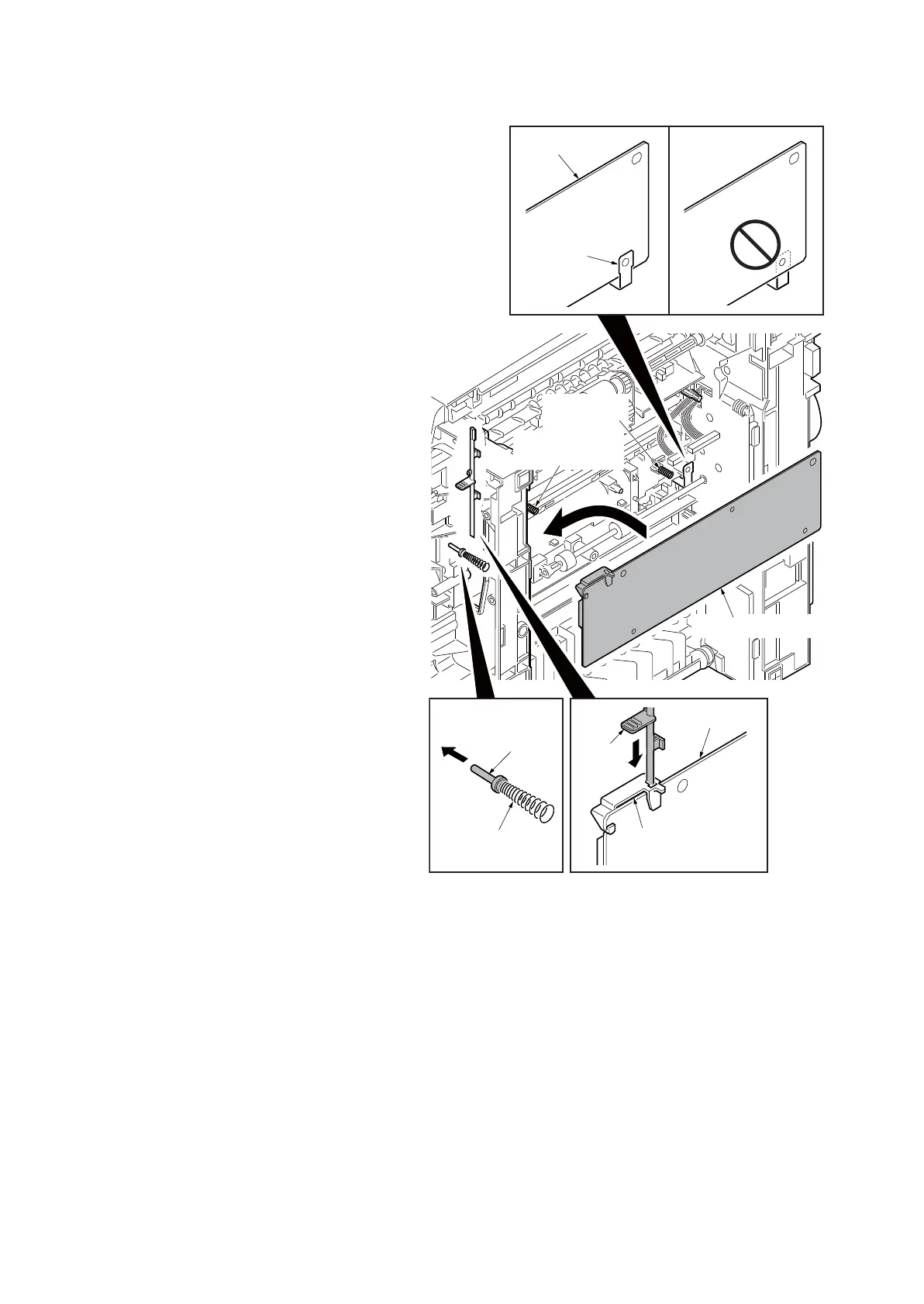

17. Check or replace the high voltage PWB
and refit all the removed parts.
When refitting the high voltage PWB, be
careful about following points.
- Position the ground plate so that it is
atop the high voltage PWB.
- Each interface is firmly in contact with
each spring.
- The bias contact pin must be installed
in the specified position.
- The cassette pin must be inserted in
the cassette pin holder.
Figure 1-5-69
Cassette
pin
Cassette pin holder
High voltage PWB
High voltage
PWB
High voltage PWB
Grounding
plate
Bias
contact pin
Spring
(Main charger)
Spring
(Developing)
Spring
(Transfer)
