2PK/2PL/2PM/2PN
2-1-22
(2) Original conveying section
The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) of main machine when it passes through the DP contact glass of main machine.

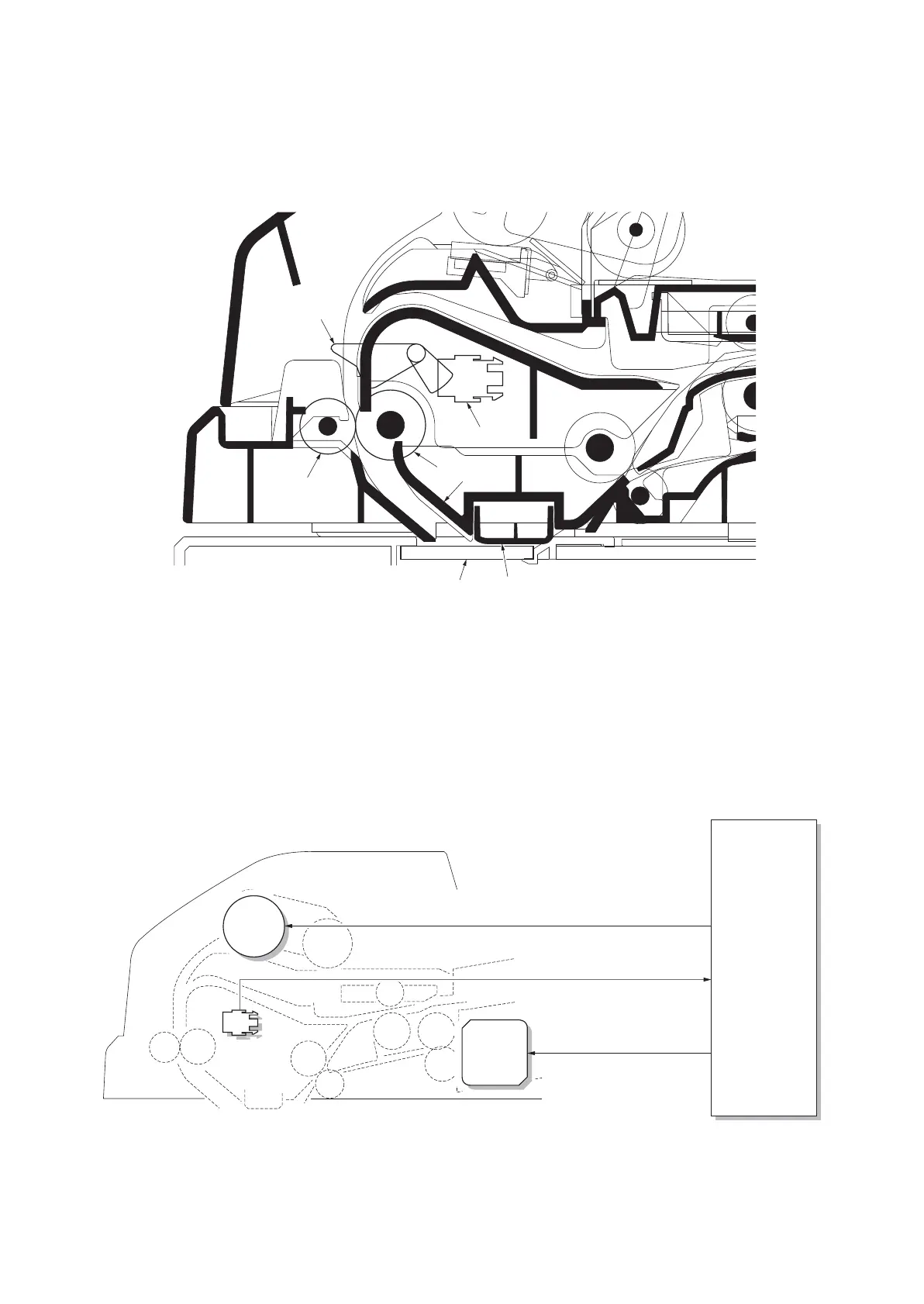

Figure 2-1-29 Original conveying section
Figure 2-1-30 Original conveying section block diagram
1
2
3
6
4
7
5
1. Conveying roller A
2. Conveying pulley
3. Conveying bottom
4. Reading guide
5. DP timing sensor (DPTS)
6. Actuator (DP timing sensor)
7. DP contact glass
DPDPWB
DPTS
TIMSWN
YC2-9
YC6-2
YC3-1,2,3,4
DPMOT1A, DPMOT2A
DPMOT1B, DPMOT2B
FEEDCL
DP
PFCL
DPPFM
