2PK/2PL/2PM/2PN
1-2-4
7.

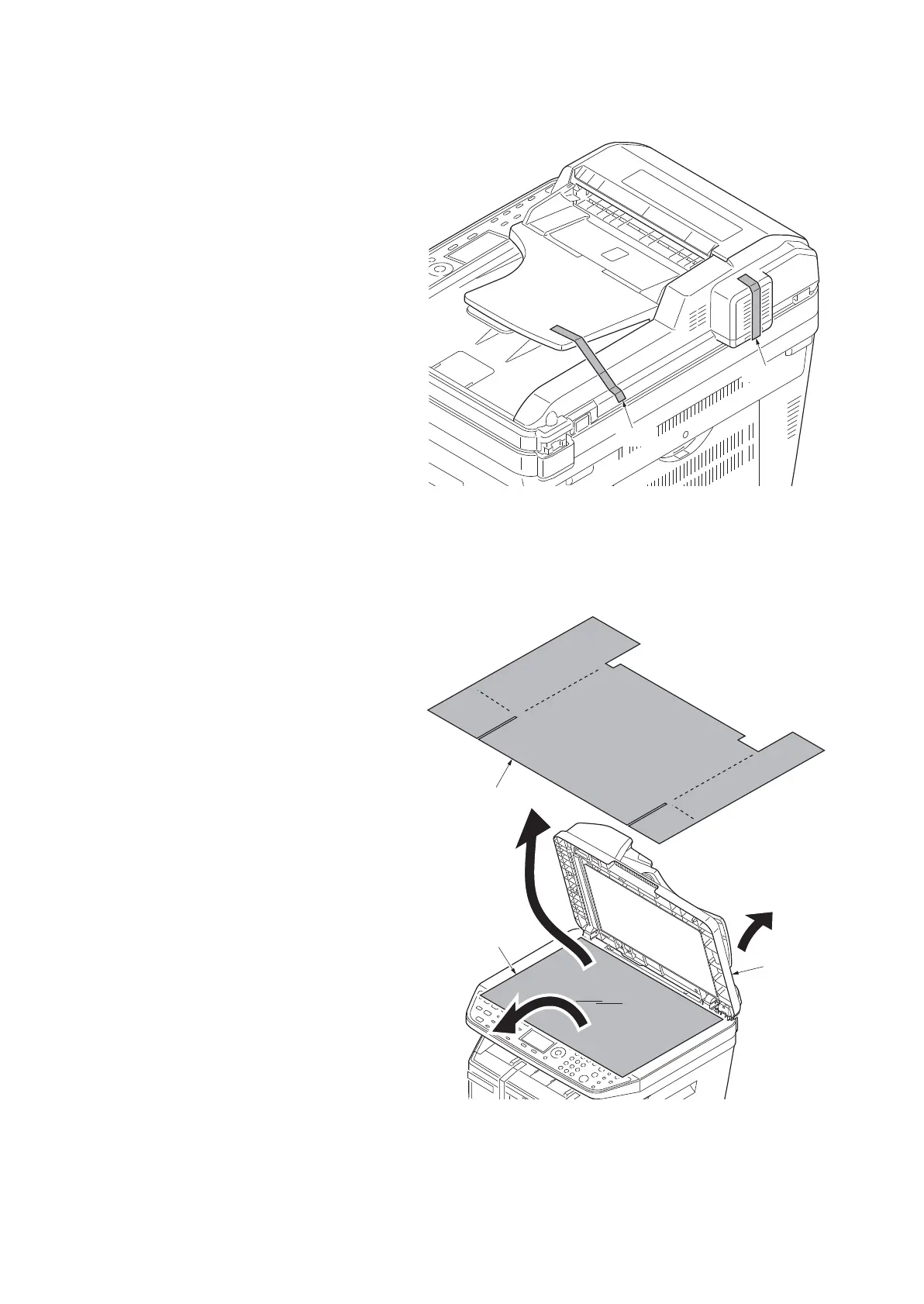

Remove two tapes.
Figure 1-
2-5
8.
Open the DP
.
9.
Remove the sheet.
10.
Remove the pape
r
.
Figure 1-
2-6
Ta
p
e
Ta
p
e
DP
Sheet
Paper
27
29
Table of Contents
Default Chapter
1
Service Manual
1
Revision History
3
Safety Precautions
5
Installation Precautions
7
Table of Contents
11
Specifications
15
Parts Names
20
Overall
20
Operation Panel
20
Machine Cross Section
23
1-2 Installation
25
Installation Environment
25
Unpacking
26
Removing the Tapes
27
Installing the Expansion Memory (Option)
30
Maintenance Mode
31
Executing a Maintenance Item
31
Maintenance Modes Item List
32
Contents of the Maintenance Mode Items
36
Event Log
37
Service Mode
110
Executing a Service Mode
110
Description of Service Mode
111
Service Status Page
112
Engine Information
113
1-4 Troubleshooting
123
Paper Misfeed Detection
123
Paper Misfeed Indication
123
Paper Misfeed Detection Condition
124
Self-Diagnostic Function
128
Self Diagnostic Codes
129
Image Formation Problems
139
Completely Blank Printout
140
All-Black Printout
141
Dropouts
141
Black Dots
142
Black Horizontal Streaks
142
Black Vertical Streaks
142
Unsharpness
143
Gray Background
143
Dirt on the Top Edge or Back of the Paper
143
Undulated Printing at the Right Edge (Scanning Start Position)
144
Electric Problems
145
Mechanical Problems
148
Send Error Code
149
Scan to SMB Error Codes
149
Scan to FTP Error Codes
150
Scan to E-Mail Error Codes
152
Error Codes
154
Error Code
154
Table of General Classification
155
U004XX Error Code Table: Interrupted Phase B
158
U006XX Error Code Table: Problems with the Unit
159
U008XX Error Code Table: Page Transmission Error
159
U009XX Error Code Table: Page Reception Error
159
U010XX Error Code Table: G3 Transmission
160
U011XX Error Code Table: G3 Reception
162
U017XX Error Code Table: V.34 Transmission
163
U018XX Error Code Table: V.34 Reception
164
U023XX Error Code Table: Relay Command Abnormal Reception
164
U044XX Error Code Table: Encrypted Transmission
164
Precautions for Assembly and Disassembly
167
Drum Unit
167
Precautions
167
Toner
167
How to Tell a Genuine Kyocera Toner Container
168
Outer Covers
169
Detaching and Refitting the Left Cover and Right Cover
169
Paper Feed Section
172
Detaching and Refitting the Paper Feed Assembly (Paper Feed Roller and Pickup Roller)
172
Detaching and Refitting the Retard Roller Assembly
174
Detaching and Refitting the MP Paper Feed Roller
176
Note on Removing and Installing the Upper Registration Roller and Lower Registration Roller
178
Optical Section
179
Detaching and Refitting the DP
179
Detaching and Refitting the Scanner Unit
180
Detaching and Refitting the Laser Scanner Unit (LSU)
183
Replacing the Image Scanner Unit (ISU)
187
Developer Section
193
Detaching and Refitting the Developer Unit
193
Drum Section
194
Detaching and Refitting the Drum Unit
194
Detaching and Refitting the Main Charger Unit
195
Transfer/Separation Section
196
Detaching and Refitting the Transfer Roller
196
Fuser Section
198
Detaching and Refitting the Fuser Unit
198
Switching the Fuser Pressure
202
Pwbs
203
Detaching and Refitting the Control PWB
203
Detaching and Refitting the Power Source PWB
206
Detaching and Refitting the High Voltage PWB
209
Detaching and Refitting the Scanner PWB
213
Detaching and Refitting the FAX Control PWB
214
1-5 Assembly and Disassembly
167
Others
215
Detaching and Refitting the Main Motor
215
Direction of Installing the Left Cooling Fan Motor, Right Cooling Fan Motor
216
Document Processor
217
Detaching and Refitting the DP Rear Cover and DP
217
Detaching and Refitting the DP Drive PWB
218
Detaching and Refitting the Feed Pulley and Forwarding Pulley
219
Detaching and Refitting the Separation Pad Assembly
222
Upgrading the Firmware
223
Remarks on Control PWB Replacement
225
Paper Feed/Conveying Section
227
Cassette Paper Feed Section
227
MP Tray Paper Feed Section
228
Paper Conveying Section
229
Drum Section
230
Main Charger Unit
231
Optical Section
232
Scanner Unit
232
Image Scanner Unit (ISU)
233
Laser Scanner Unit
235
Developing Section
237
Transfer/Separation Section
239
Cleaning Section
240
Fuser Section
242
Paper Exit Section
244
Duplex/Conveying Section
246
1-6 Requirements on PWB Replacement
223
2-1 Mechanical Construction
227
Document Processor
247
Original Feed Section
247
Original Conveying Section
248
Original Switchback/Eject Sections
249
2-2 Electrical Parts Layout
251
Electrical Parts Layout
251
Pwbs
251
Switches and Sensors
253
Other Electrical Components
254
Document Processor
255
2-3 Operation of the Pwbs
257
Power Source PWB
257
Control PWB
260
Scanner PWB
267
DP Drive PWB
270
Appendixes 2-4-1
273
Wiring Diagram
273
Repetitive Defects Gauge
275
Maintenance Parts List
276
Firmware Environment Commands
277
Maintenance Commands
285
5
Based on 1 rating
Ask a question
