2PK/2PL/2PM/2PN-5
1-3-19
U065 Adjust Scanner Motor Speed
Description
Adjusts the magnification of the original scanning.
Purpose
Make the adjustment if the magnification in the main scanning direction is incorrect.
Make the adjustment if the magnification in the auxiliary scanning direction is incorrect.
Method
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Adjustment: [Main Scan]
1. Change the setting value using the cursor left/rigrt keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the setting enlarges the image and decreasing it narrows the image.

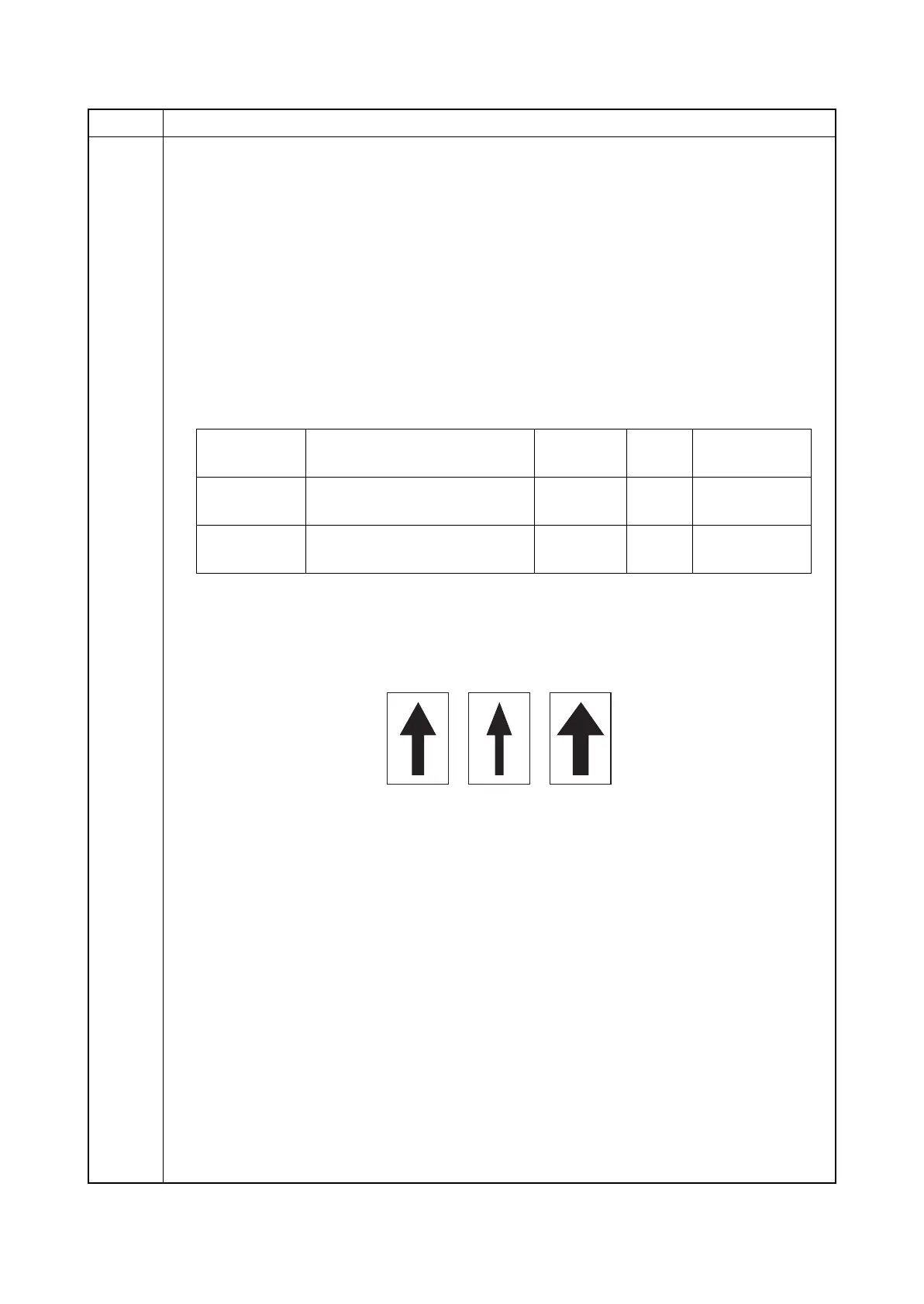

Figure 1-3-4
2. Press the start key. The value is set.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Main Scan Scanner magnification in the
main scanning direction
-32 to 127 0 0.1 %
Sub Scan Scanner magnification in the
auxiliary scanning direction
-25 to 25 0 0.1 %
Original Copy
example 1
Copy
example 2
