Kyocera FS-C8500DN User Manual

Troubleshooting 6-15
Clearing Paper Jams
If the paper jammed in the paper transport system, or no paper sheets
were fed at all, the Paper jam message appears and the location of the
paper jam (the component where the paper jam has occurred) is also
indicated. The printer automatically goes off-line when this message is
displayed. Remove jammed paper. After removing jammed paper, the
printer will re-start printing.
Possible Paper Jam Locations

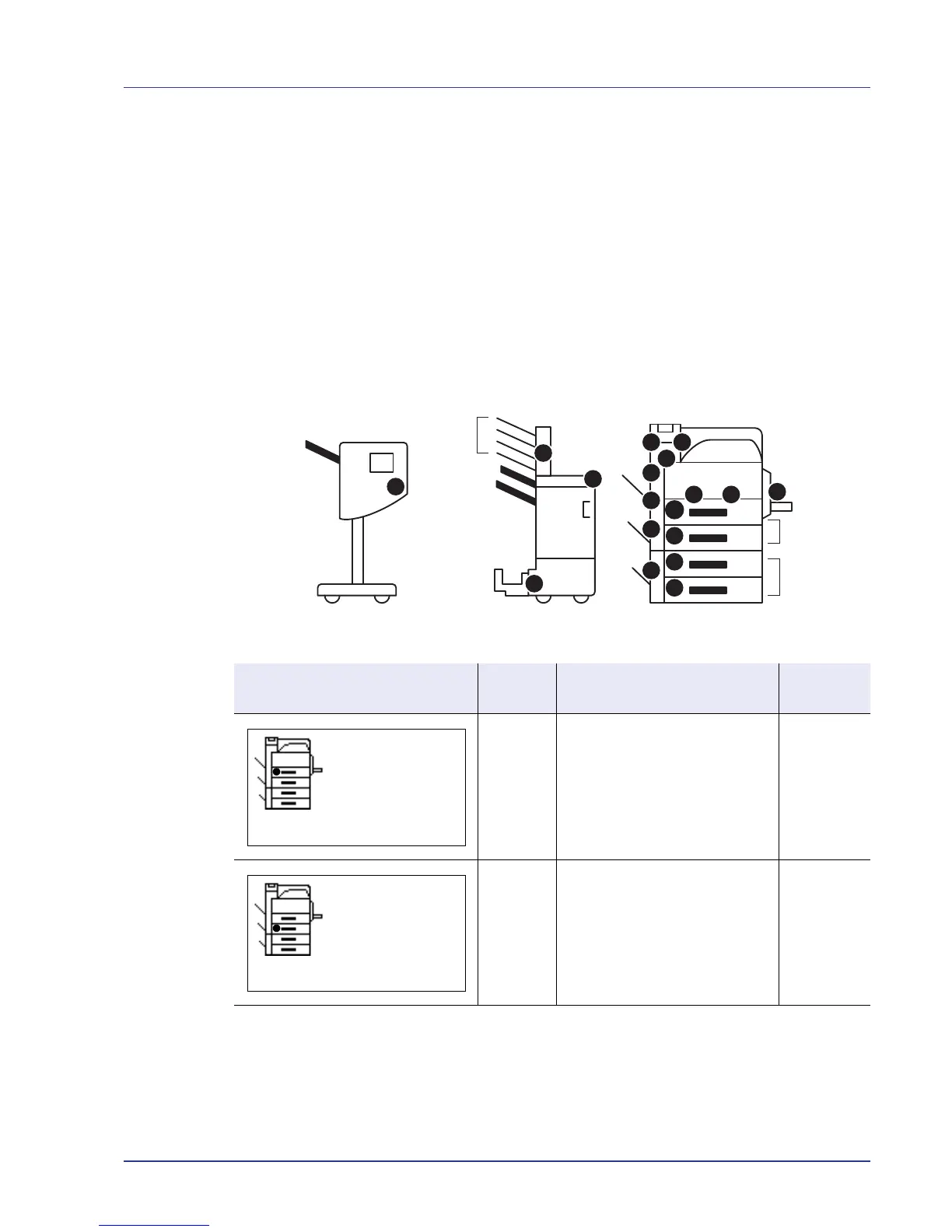

The figure below explains the printer’s paper paths including the options.
The locations where paper jams might occur are also shown here, with
each location explained in the table below. Paper jams can occur in more
than one component on the paper paths.
Paper Jam Message
Paper jam
location
Description
Reference
Page
A Paper is jammed at the paper
cassette (1).
page 6-18
B Paper is jammed at the paper
cassette (2).
page 6-19
Paper Feeder
Folding
Unit
Mail Box
Paper Cassette
3,000 Sheet Document FinisherDocument Finisher
MP Tray
A
B
C
C
D
DD
E
E
E
F
H
I
J
K
G G
G
Paper
jammed in
cassette 1.
[ Help ]
Paper
jammed in
cassette 2.
[ Help ]
