General Notes Validity of these instructions

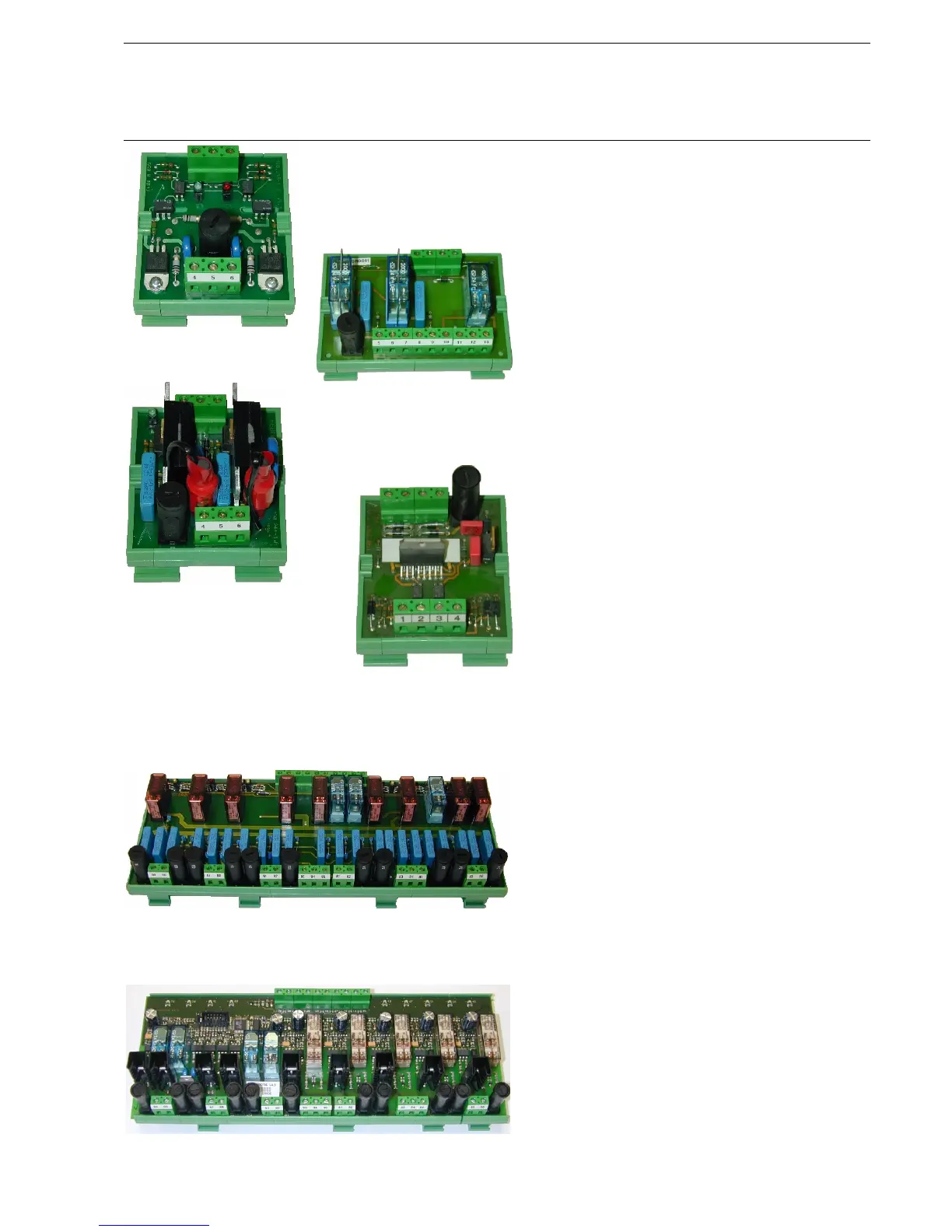

Relay module Type 6 60 R 0011
For three-point-step control output
Mechanical relay
L112 x W 70 x D 70 mm
Characteristics:
Continuous current 3.15 A
Wear dependent on the
connected motor load
Relay module Type 6 60 R 0013
For three-point-step control output
For motors with a torque
less than/equal to 20 Nm
(but dependent on internal
motor construction)
Wear-free electronic relay
L77 x W 70 x D 60 mm
Characteristics:
Leakage current max. 5 µA
Continuous current max. 0.05A
Relay module Type 6 60 R 0131
For three-point-step control output
For motors with a torque
greater than 20 Nm
Wear-free electronic relay
L77 x W 70 x D 80 mm
Characteristics:
Leakage current max. 5 mA
Continuous current max. 5A
Relay module Type 6 60 R 0019
For three-point-step control output
For dc motors with 24 V voltage
Wear-free electronic relay
Characteristics:
L77 x W 70 x D 70 mm
Continuous current max. 0.8A
Relay module Type 6 60 R 0016 / 0016 V4.3
For actuation of the burner elements
Gas valve 1
Gas valve 2
Oil valves
Ignition valve
Ignition transformer
Oil operation signal
Gas operation signal
Fan
Heated oil distribution
External pilot gas line
Pre-ventilation/Post-ventilation
Fault message
Characteristics>
L111,5 x W 286 x D 57.5 mm
L 104 x B 165 x T 70 mm
148
6 60 R 0016 V4.3 ab August 2006
6 60 R 0013
6 60 R 0131
6 60 R 0016 bis August 2006
6 60 R 0011
6 60 R 0019
