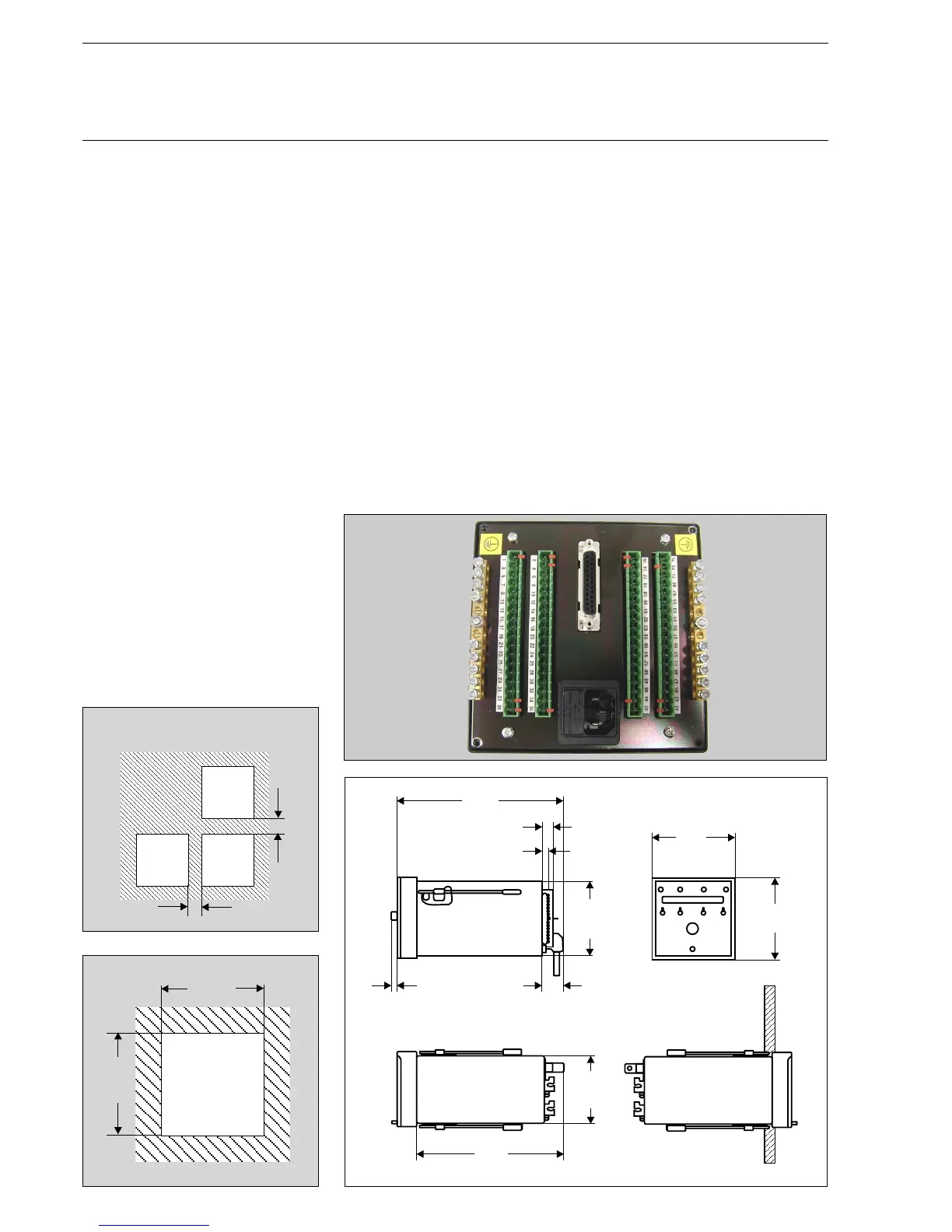

149
Single cut-out
+2
137
+2
137
Minimum intervals
with more than one cut-outs
8 208
8 208 20
Technical Data
Dimensions (L x W x D) mm:
FMS 4 / FMS 5 Combustion Management System 147 x 147 x 328
Mounting depth 295
Relay module 6 60 R 0011 (not shown) 77 x 112 x 70
Relay module 6 60 R 0013 77 x 70 x 60
Relay module 6 60 R 0131 77 x 70 x 80
Relay module 6 60 R 0019 (not shown) 77 x 70 x 60
Relay module 6 60 R 0016 110 x 289 x 60
Weight:
FMS 4 / FMS 5 Combustion Management System 3.4 kg
Relay module 6 60 R 0013 0.1 kg
Relay module 6 60 R 0131 0.18 kg
Relay module 6 60 R 0016 0.75 kg
Protection class to
DIN 40 050: FMS 4 / FMS 5 Combustion Management System IP 40
Relay module IP 00
Installation: FMS 4 / FMS 5 Combustion Management System Panel mounting
Relay module Cabinet mounting, mounting rail/top hat rail
Position of use any
1
47
14
7
2
9
5
5
1
3
5,
51
35,
4
0
10
12
2
0
3
2
8
