HDO6000 High Definition Oscilloscope

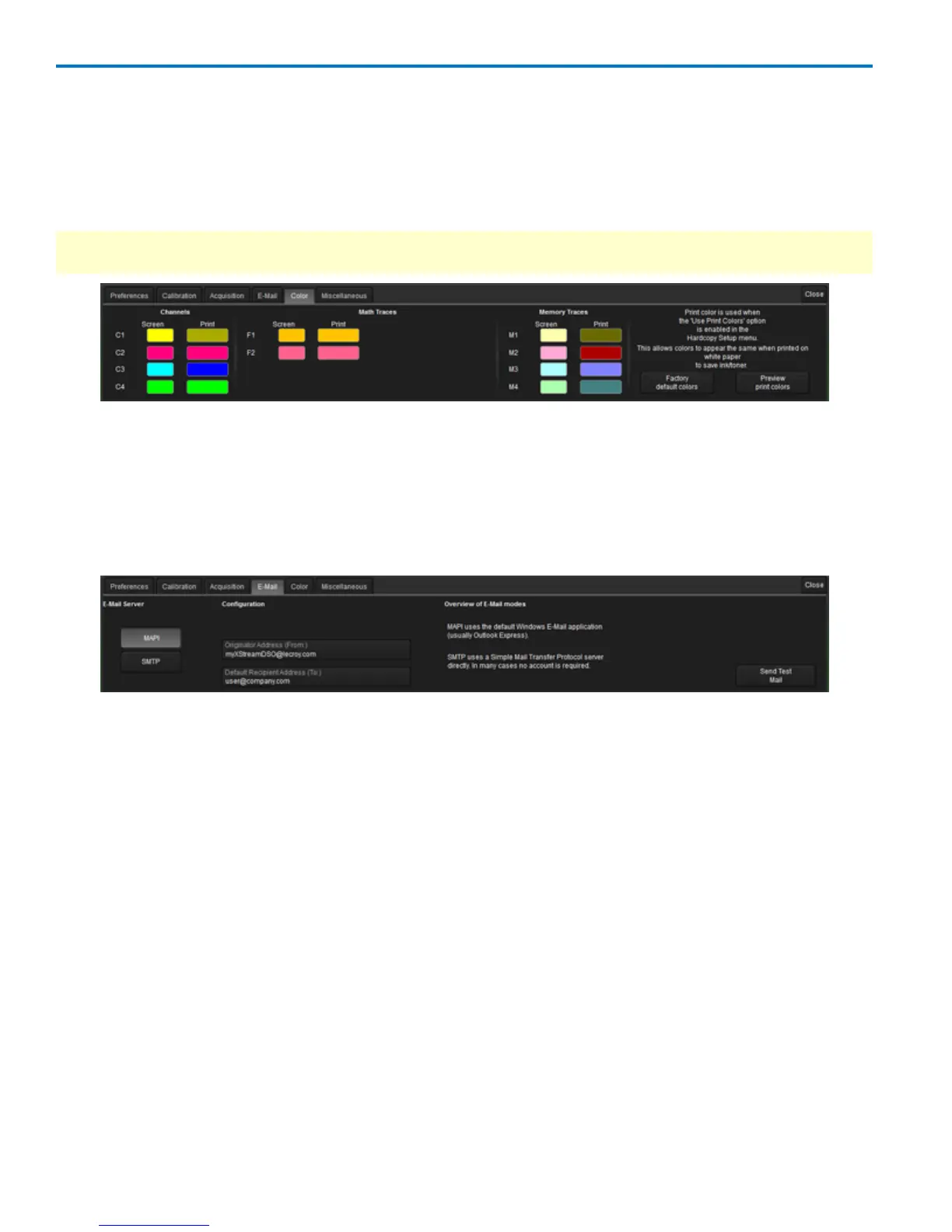

Color Settings
Preferences Color settings assign the colors used for channel, math, and memory traces. All dialogs,
tables, and trace descriptor boxes will match the color of the trace assigned here. You can choose
different colors to be used on the instrument and in print.
For convenience, you can Preview print colors to see how the settings will appear in print output.
NOTE: Print colors are used only when the Colors control is set to Print on the Hardcopy dialog in Utilities
→ Utilities Setup.... Otherwise, the Screen colors are used for print output as well as on screen.
To make any setting, just touch the color swatch for either Screen or Print next to the trace number, and
make a selection from the Color pop-up menu.
Touch Factory default colors to recall the original color settings for your instrument.
E-Mail
Use the E-mail dialog to set up e-mail on the oscilloscope.
E-Mail Server- Choose a server protocol from the following options:
l MAPI (Messaging Application Programming Interface) is the Microsoft interface specification that
allows different messaging and workgroup applications (including e-mail, voice mail, and fax) to
work through a single client, such as the Exchange client. MAPI uses the default Windows e-mail
application.
l SMTP (Simple Mail Transfer Protocol) is a TCP/IP protocol for sending messages from one com-
puter to another through a network. This protocol is used on the Internet to route e-mail. In many
cases no account is needed.
Configuration - Provide values based on your selected server protocol:
l If you chose MAPI, touch inside the Originator Address (From:) data entry field and provide the
instrument's e-mail address. Then touch inside the Default Recipient Address (To:) data entry field
and provide the recipient's e-mail address.
l If you chose SMTP, touch inside the SMTP Server data entry field and provide the name of your
server. Touch inside the Originator Address (From:) data entry field and provide the instrument's e-
mail address. Then touch inside the Default Recipient Address (To:) data entry field and provide the
recipient's e-mail address.
Send Test Mail - Click this button to send a confirmation message to ensure proper e-mail configuration.
108
922499 Rev B
