Operator's Manual

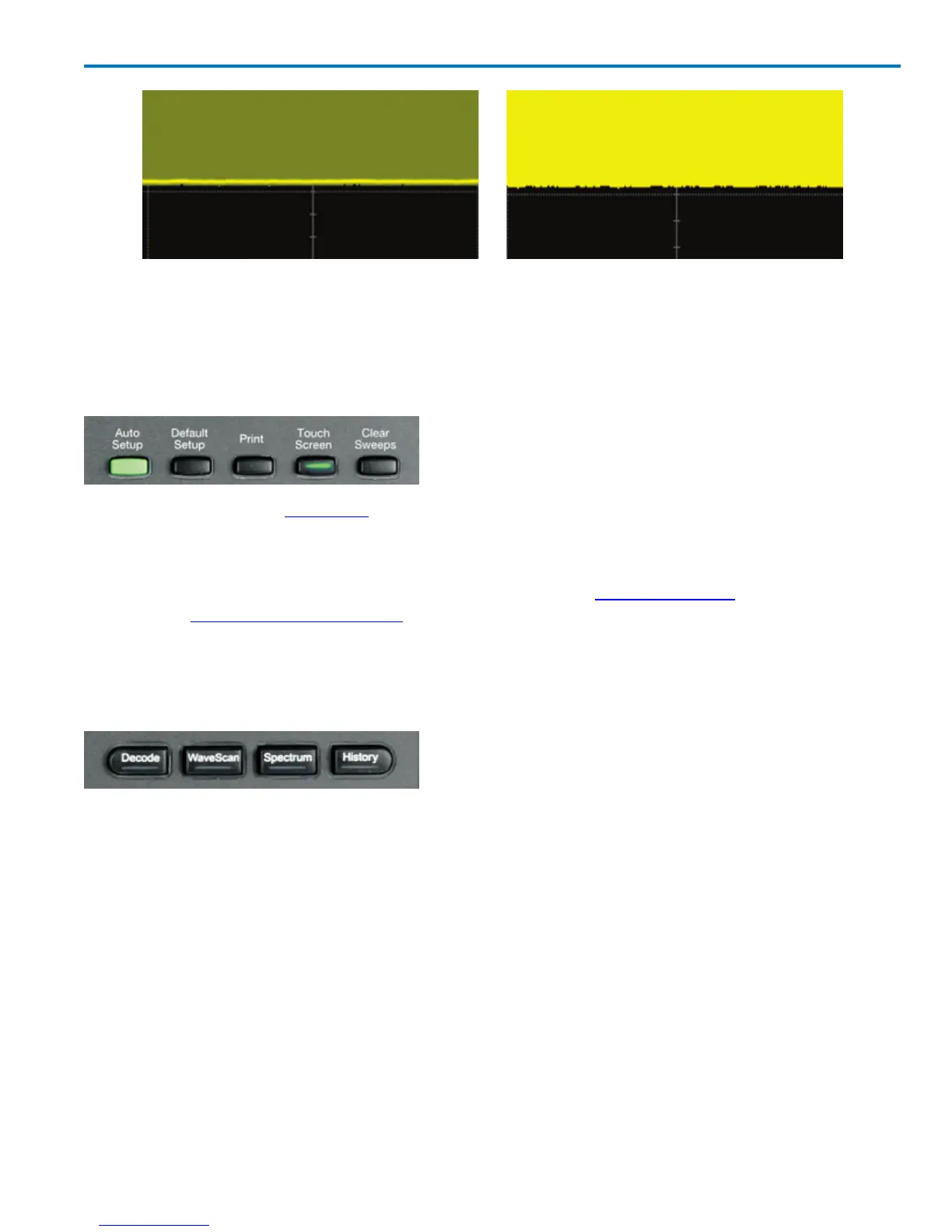

Intensity 40% (left) dims samples that occur ≤ 40% of the time to highlight the more frequent samples, vs.
intensity 100% (right) which shows all samples at the same intensity.
Miscellaneous Front Panel Controls
Top Row
Auto Setup - Performs an Auto Setup. After the first press, you will be prompted for a confirmation. Press
the button again or use the touch screen to confirm.
Default Setup - Resets the oscilloscope to the factory default configuration.
Print - Captures the entire screen and outputs it according to your Hardcopy settings. It can also be
configured to output a LabNotebook entry.
Touch Screen - Enables or disables touch screen functionality.
Clear Sweeps - Resets the acquisition counter and any cumulative measurements.
Bottom Row
Decode - Opens the Serial Decode dialog if you have serial data decoder options installed.
WaveScan - Opens the WaveScan dialog.
Spectrum - Opens the Spectrum Analyzer dialog if you have that option installed.
History - Opens the History Mode dialog.
922499 Rev B
21
