Operator's Manual
Miscellaneous Settings

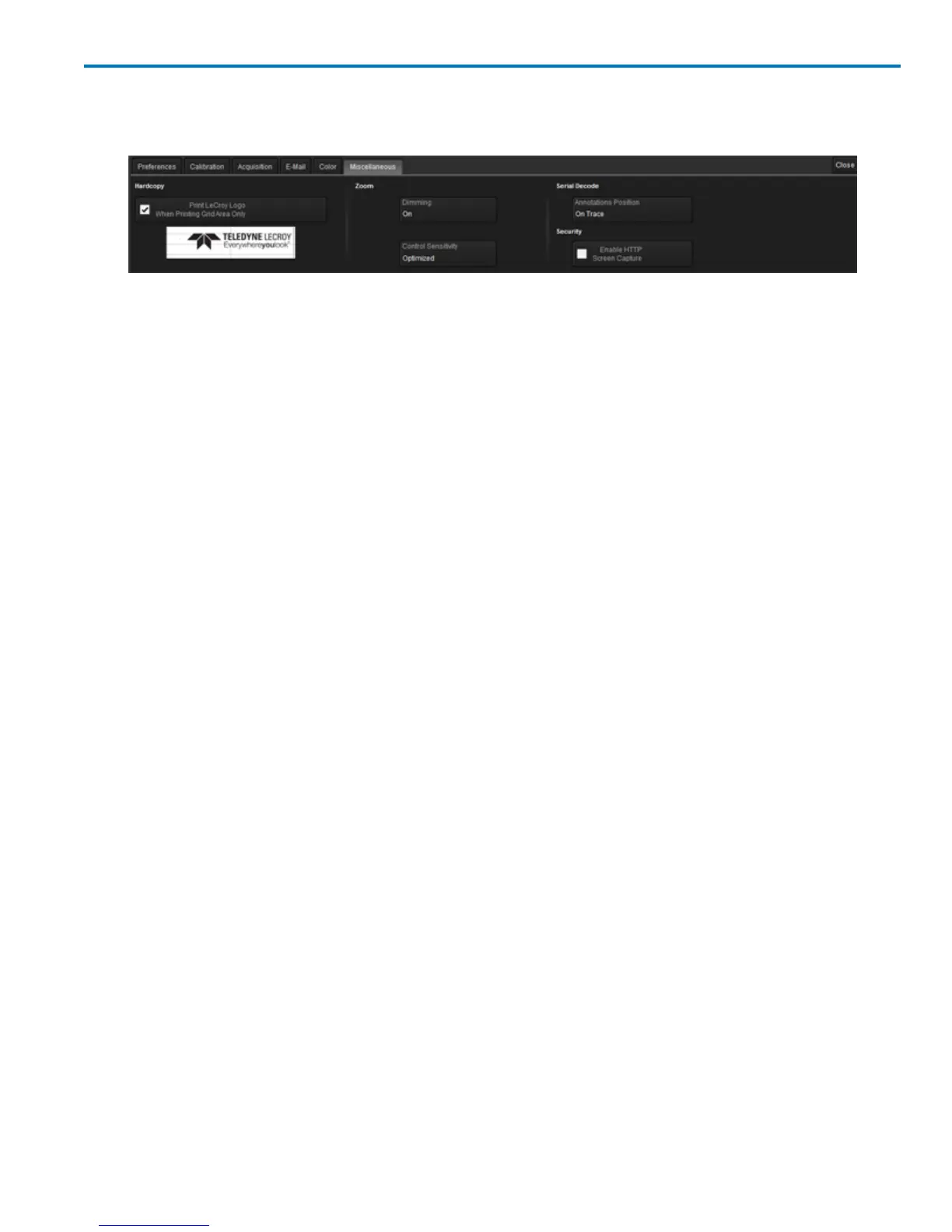

These other Preference settings are located on the Miscellaneous dialog.
Hardcopy: You can add the Teledyne LeCroy logo to print output by checking Print LeCroy Logo When
Printing Grid Area Only. This identifies the instrument as the source of the image.
Zoom: You can adjust zoom behavior as follows:
l Dimming darkens/shades those areas of the source waveform that are not part of the Zoom trace.
l Control Sensitivity adjusts the sensitivity of the Front Panel knobs. Optimized applies an accel-
eration algorithm to the knobs. Legacy detects rotation of the front panel knobs in a manner similar
to our legacy oscilloscopes.
Serial Decode Annotation Position: If you have Serial Trigger or Decode options installed on your
oscilloscope, this control determines the placement of annotation labels relative to the trace line.
l On Trace places the label close to the line.
l On Noisy Trace sets the label further from the line to accommodate potential noise spikes in the
trace.
Security: Check Enable HTTP Screen Capture to enable remote capture of the oscilloscope display over
the Internet.
922499 Rev B
109
