Operator's Manual

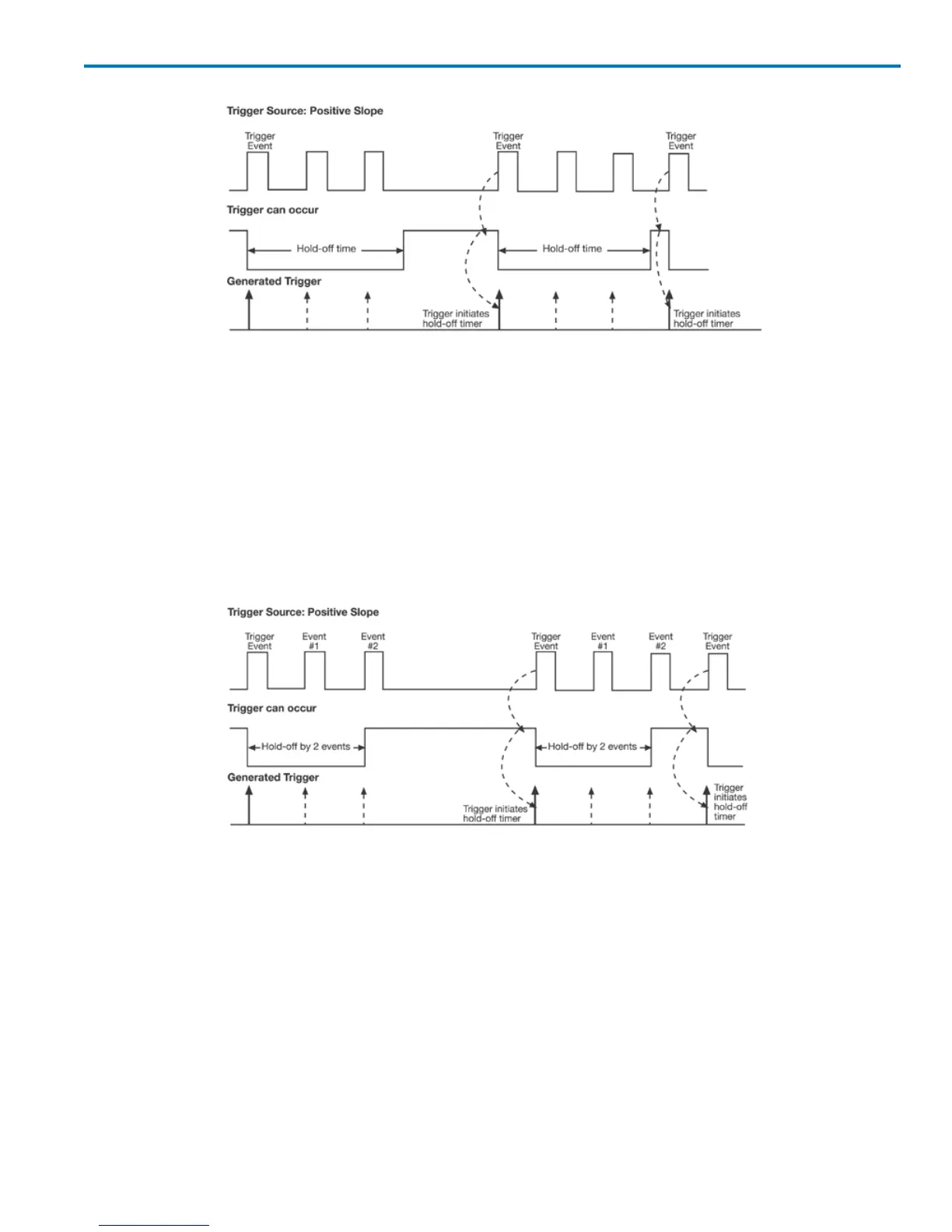

Edge trigger with holdoff by time.
Hold Off by Events
For purposes of Hold Off, Events refers to the number of times the trigger conditions have been met,
counted either from the beginning of the acquisition or since the last trigger. For example, if the hold-off
number of Events is 2 counted from the beginning of the acquisition, the trigger fires on the third event.
In the figure below, the bold edges on the trigger source indicate that a positive slope has been selected.
The broken, upward-pointing arrows indicate potential triggers, while the bold ones show where triggers
actually occur after the holdoff expires.
Edge trigger with holdoff by events.
922499 Rev B
45
