1160 LCD panel, LCD cable and hinges
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1050 Optical drive” on page 38
• “1080 Keyboard” on page 42
• “1090 Keyboard bezel” on page 44
• “1100 LCD unit” on page 48
• “1150 LCD front bezel” on page 62

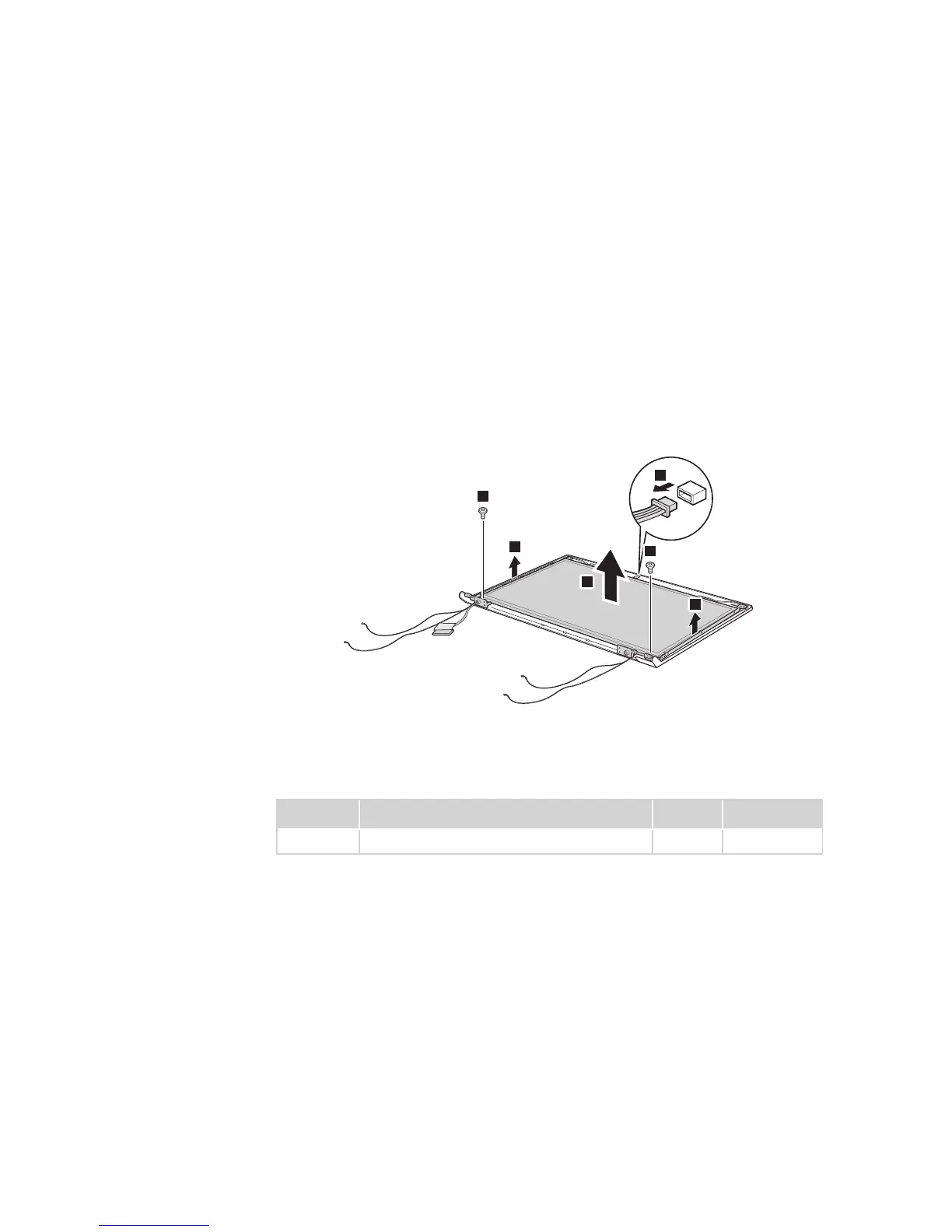

Figure 16. Removal steps of LCD panel, LCD cable and hinges
Remove two screws
1
. Remove the connector shown by arrow
2
. Lift the
LCD panel in the direction shown by arrow
3
.
When installing: Make sure that the connector is attached rmly.
Step Screw (quantity) Color Torque
1
M2 × 3.5 mm, at-head, nylok-coated (2) Black 1.6 kgfcm
To Next Page
