1170 Integrated camera
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1050 Optical drive” on page 38
• “1080 Keyboard” on page 42
• “1090 Keyboard bezel” on page 44
• “1100 LCD unit” on page 48
• “1150 LCD front bezel” on page 62
• “1160 LCD panel, LCD cable and hinges” on page 63

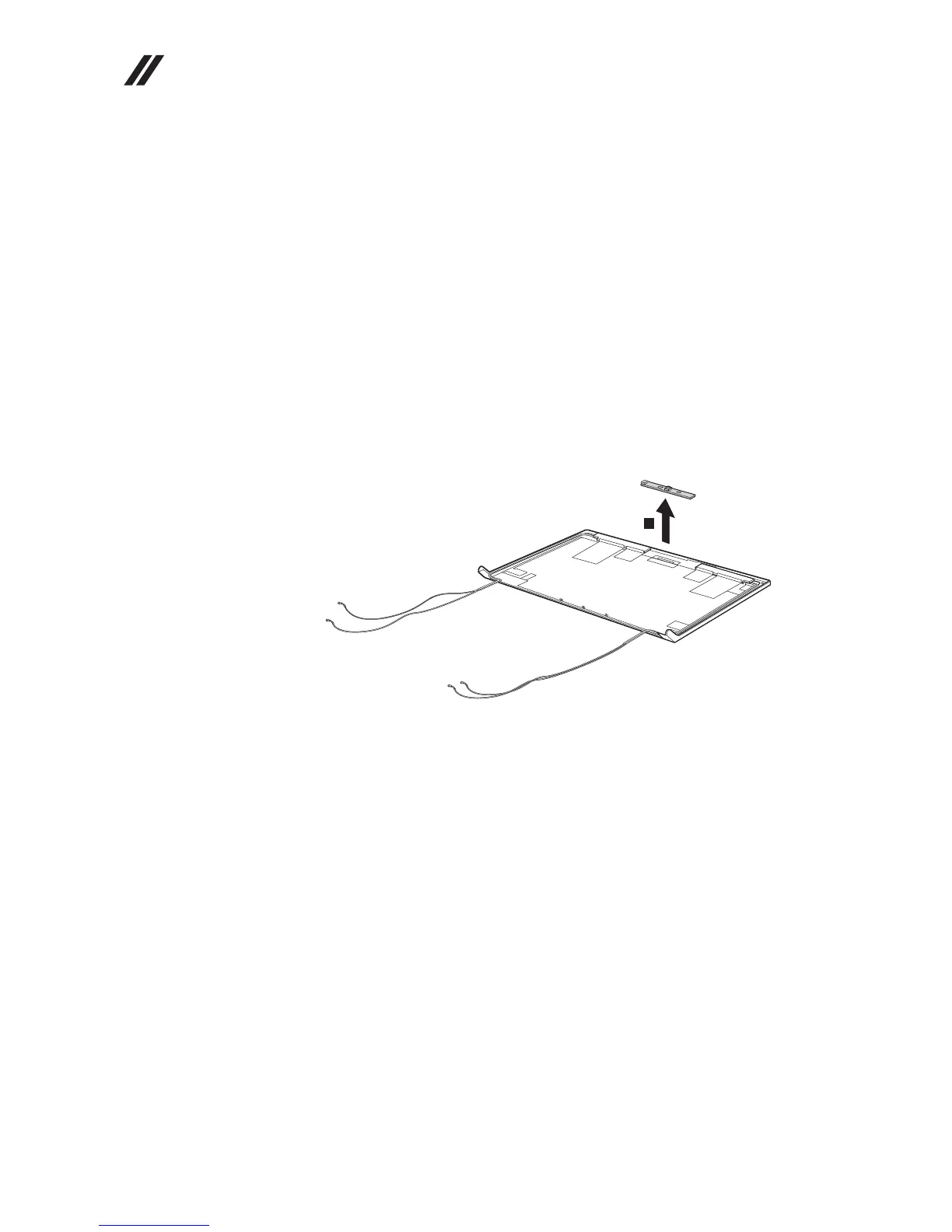

Figure 17. Removal steps of integrated camera
Note: The integrated camera is stuck on the top center of the LCD cover.
Remove the integrated camera from the LCD cover
1
.
When installing: Stick the integrated camera to the top center of the LCD
cover and ajust the placement of it to make sure the connector is attached
rmly.
