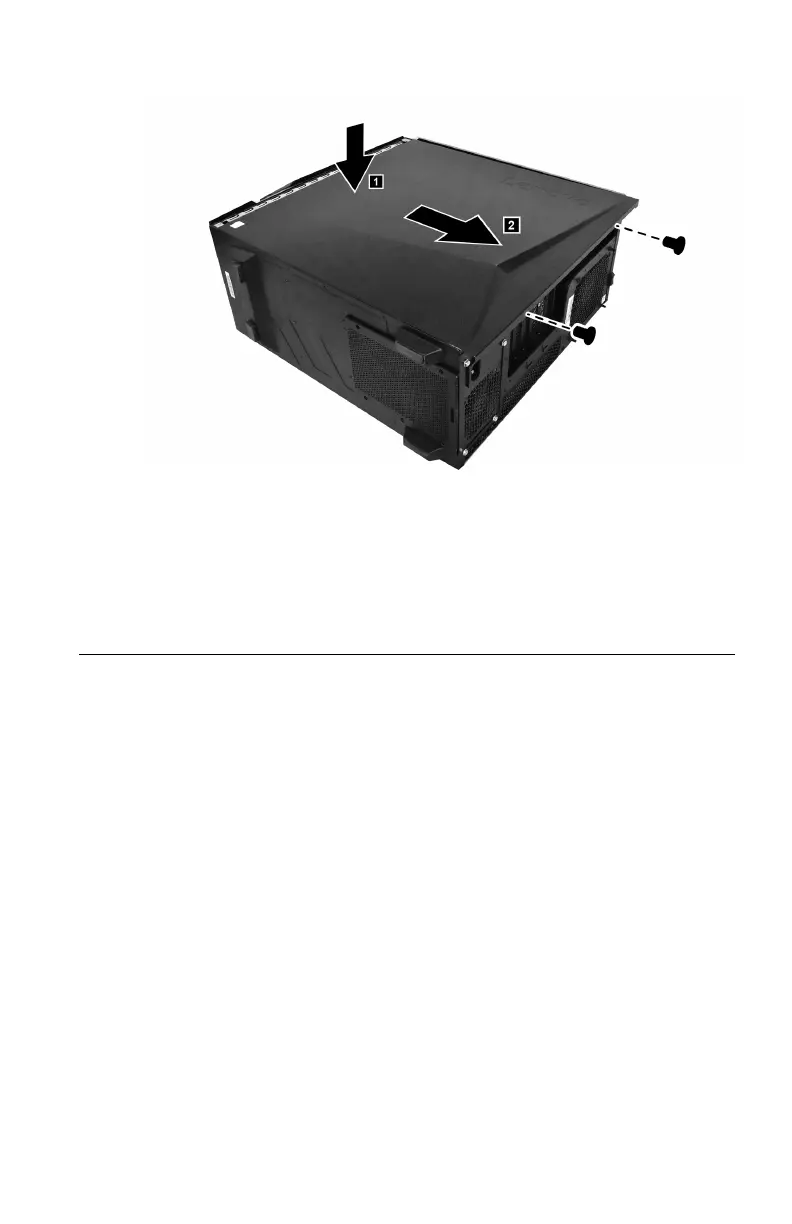

Step 6. Reinstall the computer cover ii:
a. Align the cover with the guide track on the computer case, then slide
the cover in.
b. Press the left side the cover, then push it in till the cover locked
properly.
c. Secure the computer cover with two screws.
Removing the front bezel
Note: For this procedure, it helps to lay the computer flat.
To remove the front bezel:
Step 1. Remove the computer cover. Refer to “Removing the computer cover”.
Step 2. Remove the front bezel by releasing the three plastic tabs inside the
chassis and pulling the bezel out as shown.
Chapter 8. Replacing hardware 37
