Electrical installation
Mounting of function module (option)
5
104
EDK82MV371 DE/EN/FR 7.0

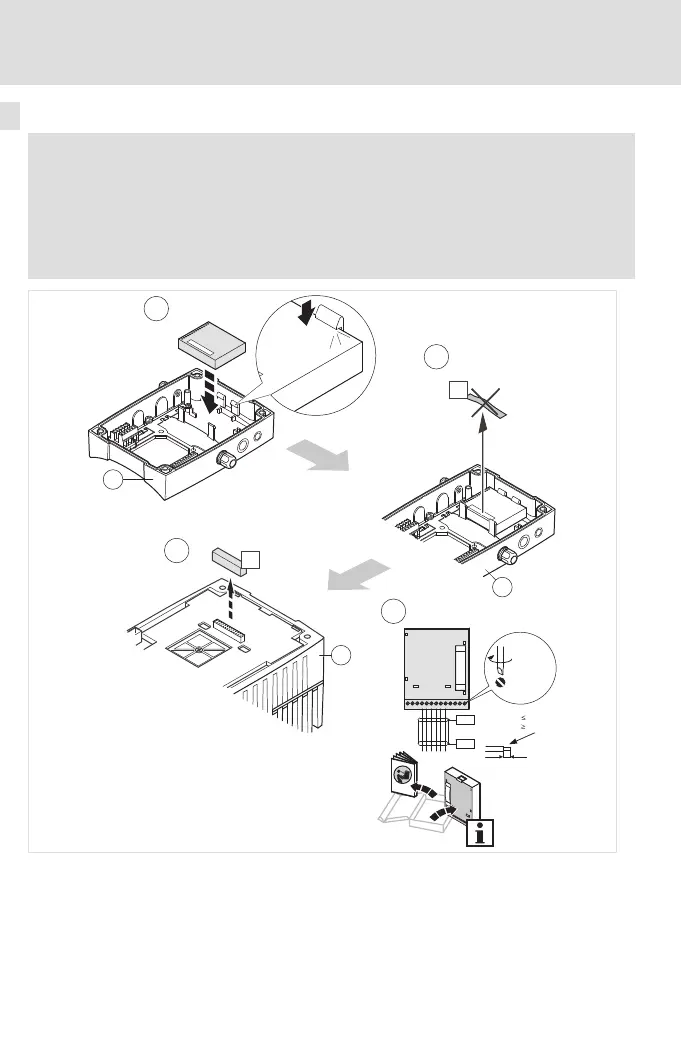

Mounting of function module (option)
Stop!
ƒ Control cables must always be shielded to prevent interference
injections!
ƒ Remove the FIF cover on the electronic module and the protection cover
of the function module. Otherwise the motec or the function module
may be damaged.
1a
1
4
6mm
2
1 mm
AWG 18
X3
PES
PES
klick
B
1a
2
3
1b
0.5...0.6 Nm
4.4...5.3 lb-in
A
8200mot153
1. Plug the function module into the support.
2. Remove the protection cover of the function module and keep it.
3. Remove the FIF cover and keep it!
4. Wiring: see mounting instructions for the function module
