Product description
Scope of supply
EL 1xx CAN/PLC/MPI
3
13
LDCDS−EL100 EN 8.0
3.2
Scope of supply
Number
Description
1
HMI
4
4
4
6
8
Screw clamp fixings
for EL 103 ECO (PLC)
for EL 105(m) CAN/PLC/MPI
for EL 106 CAN/PLC/MPI
for EL 108 CAN/PLC/MPI
for EL 110(s) CAN/PLC/MPI
1
Mounting instructions
1
DVD "L−force PC−based Automation"
3.3
Overview
3.3.1

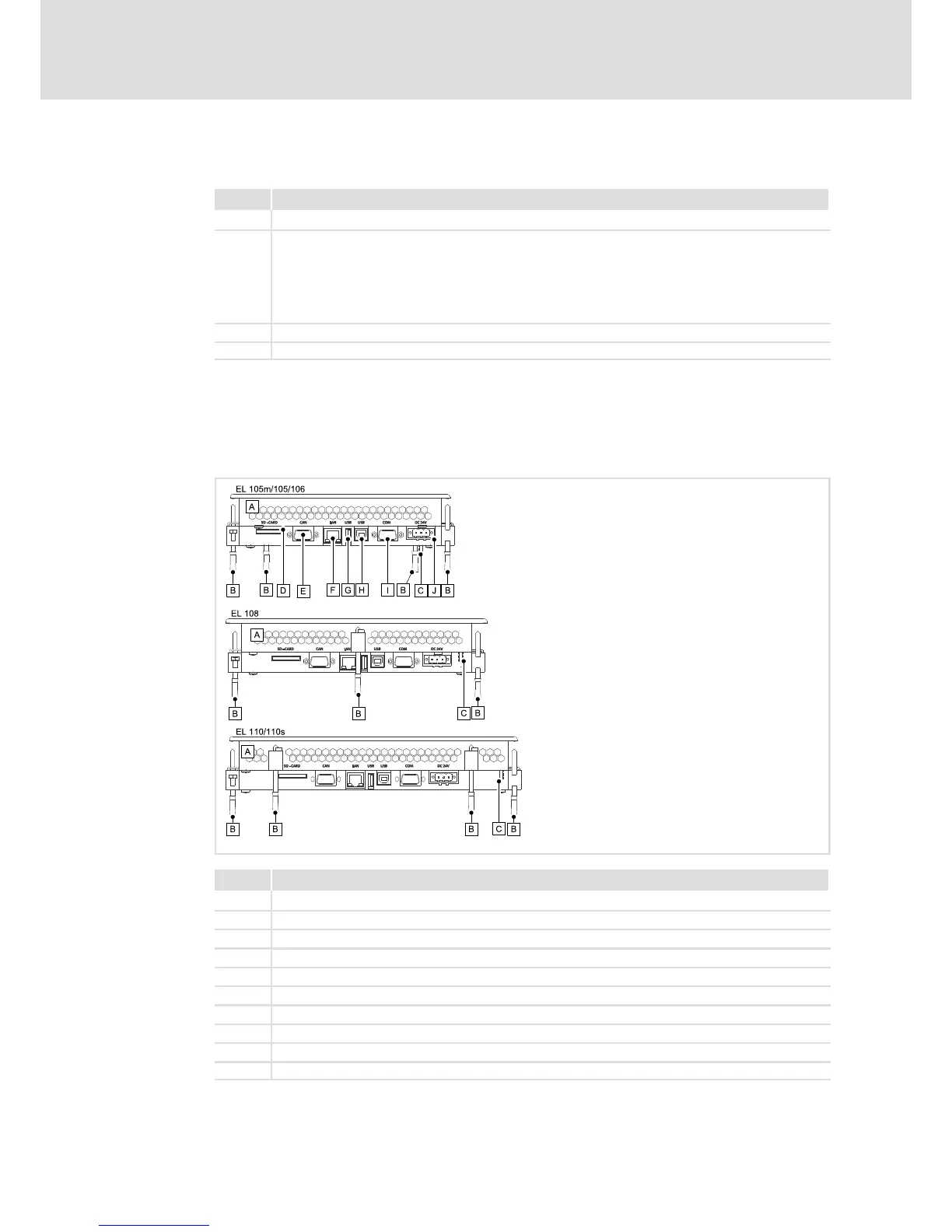

EL 1xx CAN/PLC/MPI
EL100−001
Pos.
Description
HMI
Screw clamp fixings
PE connection
SD/SDHC card slot
CAN or MPI port
Ethernet port
USB−A port
USB−B port
Serial RS232 interface
Connection supply
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Documentation
6
Validity Information
6
Target Group
6
Document History
7
Terminology Used
7
Conventions Used
7
Notes Used
8
2 Safety Instructions
9
General Safety Instructions
9
Product−Specific Safety Instructions
11
3 Product Description
12
Application as Directed
12
Scope of Supply
13
Overview
13
EL 1Xx CAN/PLC/MPI
13
EL 1Xx ECO (PLC)
14
4 Technical Data
15
General Data and Operating Conditions
15
Electrical Data
16
EL 1Xx CAN/PLC/MPI
16
EL 1Xx ECO (PLC)
19
Mechanical Data
21
EL 1Xx CAN/PLC/MPI
21
EL 1Xx ECO (PLC)
22
5 Mechanical Installation
23
6 Electrical Installation
24
Important Notes
24
Wiring According to EMC
24
Wiring
25
EL 1Xx CAN/PLC/MPI
25
EL 1Xx ECO (PLC)
29
7 Commissioning
31
Connecting External Devices
31
Initial Switch−On
32
Establish Ethernet Connection
33
Configure Ethernet Interface
33
Activate Communication between el 1Xx and Visiwinnetâ Smart
34
Establish CAN Fieldbus Connection
35
Configure CAN Interface
35
Establish MPI Connection
36
UPS Functionality
37
Installing Fonts
38
8 Operation
39
Operating System Components
39
Control Panel Applets
40
Startup
41
Registry
42
Visiwinnetâ
43
Display
43
Server
44
Fieldbus
44
MPI Configuration
45
CAN Gateway
45
Creating a PLC Sample Program
49
General Information on PLC Programming
49
Start PLC Designer
50
Create PLC Program
50
Create Sym File
53
Transfer Program to HMI
55
Start Program on HMI
57
Build up CAN Communication with Distributed I/O Module
57
Access el 1Xx Via Server Functionality
62
Enable Server Access
63
FTP Server − Transmit Data
65
Web Server (Sysadmin) − Manage Processes, Files, Registry
65
Telnet Server − Manage Files at the Windows Command Prompt
66
Vnc−Server − Operate the el 1Xx by Remote Control Via Internet or LAN
67
RAS Server − Operate Your el 1Xx by Remote Control Via Telephone Line
68
Communicating Via the CAN Gateway Function
69
Important Notes
69
Establishing Communication Using the System Bus Configurator
69
Establishing Communication Using the Global Drive Control (GDC)
73
Establishing Communication Using the L−Force Engineer
75
Establishing Communication Using the Drive PLC Developer Studio (DDS)
78
9 Maintenance
80
General Notes
80
Battery Replacement
80
10 Index
82
