Commissioning
Status display
5
EDKMF2133 DE/EN/FR 4.0
65
H2_statusanzeige-Statusanzeige

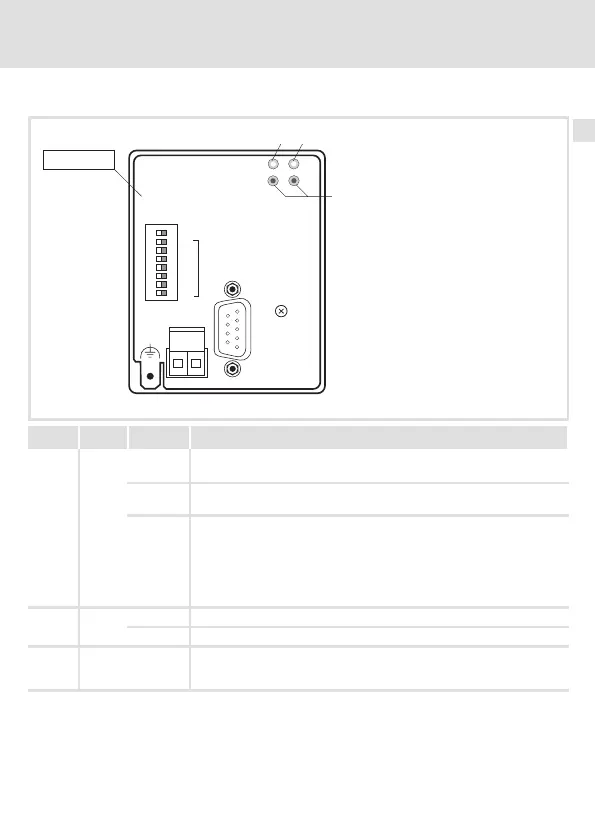

Status display
123456
7
8
2131
64
32
16
8
2
4
1
PROFIBUS DP
L
24V DC
+
_
ONOFF
Adresse
2133
01
2
EMF2133IB
2133PFB003
Pos Colour Status Notes
Green
ON Communication module is supplied with voltage and connected to the
controller.
OFF Communication module is not supplied with voltage. Controller or
external voltage supply is switched off.
BLINKING Communication module is supplied with voltage but is not connected
(yet) to the controller because
z
the communication module has not been plugged onto the
controller correctly
z
the data transfer of/to the controller is still not possible
(e.g. controller is in the initialisation phase).
Yellow
OFF Communication module has not been initialised yet.
BLINKING Communication is now possible through the communication module.
Red / Green Red and green drive LED indicate the operating status of 82XX,
8200 vector, 93XX, 9300 Servo PLC and Drive PLC
(see Operating Instructions for the device)
