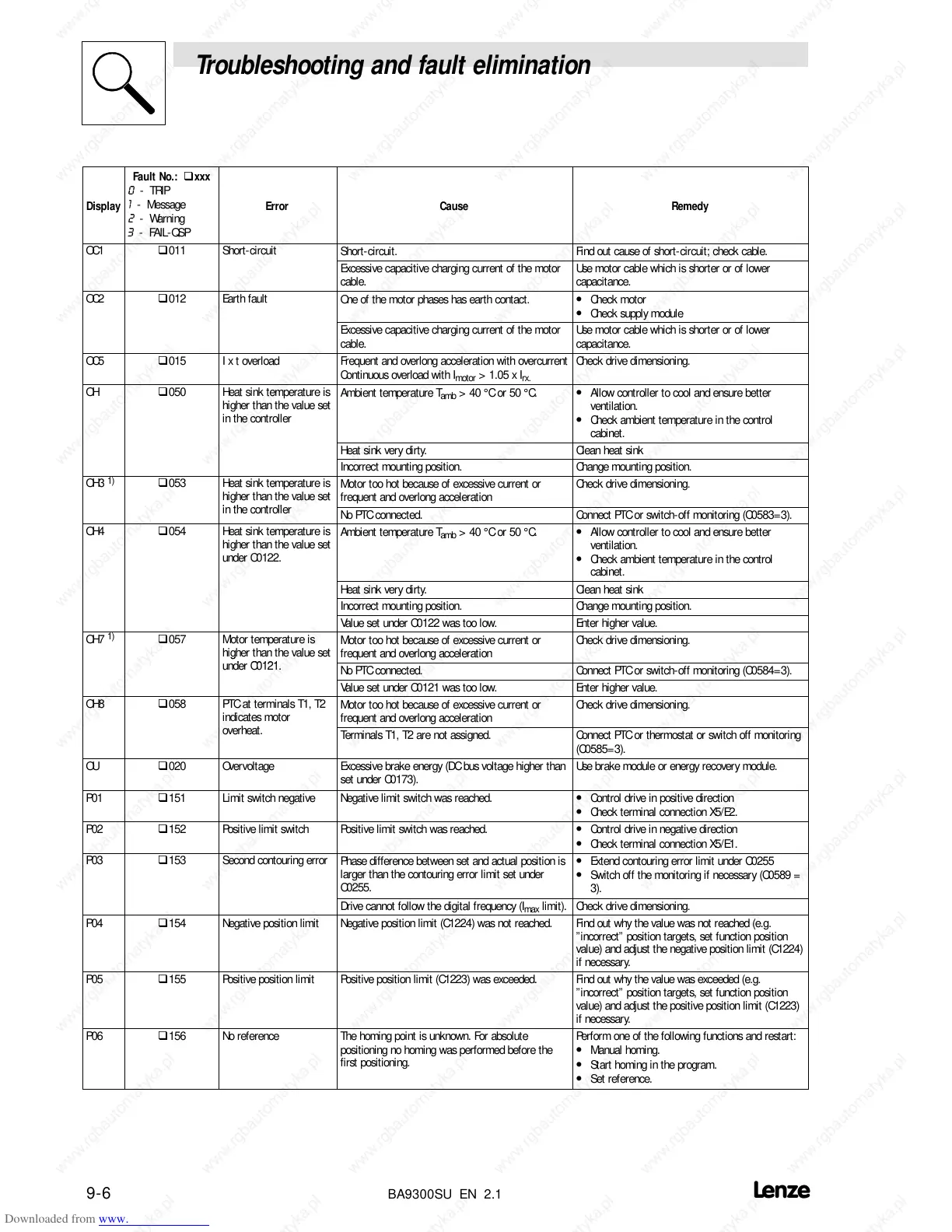

Troubleshooting and fault elimination
9-6

BA9300SU EN 2.1
Display RemedyCauseError
Fault No.:
q xxx
 -TRIP
 - Message
 - Warning
 -FAIL-QSP
OC1 q 011 Short-circuit
Short-circuit. Find out cause of short-circuit; check cable.
Excessive capacitive charging current of the motor
cable.
Use motor cable which is shorter or of lower
capacitance.
OC2 q 012 Earth fault
One of the motor phases has earth contact. • Check motor
• Check supply module
Excessive capacitive charging current of the motor
cable.
Use motor cable which is shorter or of lower
capacitance.
OC5 q 015 Ixtoverload Frequent and overlong acceleration with overcurrent
Continuous overload with I
motor
>1.05xI
rx.
Check drive dimensioning.
OH q 050 Heat sink temperature is
higher than the value set
in the controller
Ambient temperature T
amb
>40°Cor50°C. • Allow controller to cool and ensure better
ventilation.
• Check ambient temperature in the control
cabinet.
Heat sink very dirty. Clean heat sink
Incorrect mounting position. Change mounting position.
OH3
1)
q 053 Heat sink temperature is
higher than the value set
i
t
h
t
l
l
Motor too hot because of excessive current or
frequent and overlong acceleration
Check drive dimensioning.
g
in the controller
No PTC connected. Connect PTC or switch-off monitoring (C0583=3).
OH4 q 054 Heat sink temperature is
higher than the value set
under C0122.
Ambient temperature T
amb
>40°Cor50°C. • Allow controller to cool and ensure better
ventilation.
• Check ambient temperature in the control
cabinet.
Heat sink very dirty. Clean heat sink
Incorrect mounting position. Change mounting position.
Value set under C0122 was too low. Enter higher value.
OH7
1)
q 057 Motor temperature is
higher than the value set
d
C
0
1
2
1
Motor too hot because of excessive current or
frequent and overlong acceleration
Check drive dimensioning.
g
under C0121.
No PTC connected. Connect PTC or switch-off monitoring (C0584=3).
Value set under C0121 was too low. Enter higher value.
OH8 q 058 PTC at terminals T1, T2
indicates motor
h
t
Motor too hot because of excessive current or
frequent and overlong acceleration
Check drive dimensioning.
overheat.
Terminals T1, T2 are not assigned. Connect PTC or thermostat or switch off monitoring
(C0585=3).
OU q 020 Overvoltage Excessive brake energy (DC bus voltage higher than
set under C0173).
Use brake module or energy recovery module.
P01 q 151 Limit switch negative Negative limit switch was reached. • Control drive in positive direction
• Check terminal connection X5/E2.
P02 q 152 Positive limit switch Positive limit switch was reached. • Control drive in negative direction
• Check terminal connection X5/E1.
P03 q 153 Second contouring error
Phase difference between set and actual position is
larger than the contouring error limit set under
C0255.
• Extend contouring error limit under C0255
• Switch off the monitoring if necessary (C0589 =
3).
Drive cannot follow the digital frequency (I
max
limit). Check drive dimensioning.
P04 q 154 Negative position limit Negative position limit (C1224) was not reached. Find out why the value was not reached (e.g.
”incorrect” position targets, set function position
value) and adjust the negative position limit (C1224)
if necessary.
P05 q 155 Positive position limit Positive position limit (C1223) was exceeded. Find out why the value was exceeded (e.g.
”incorrect” position targets, set function position
value) and adjust the positive position limit (C1223)
if necessary.
P06 q 156 No reference The homing point is unknown. For absolute
positioning no homing was performed before the
first positioning.
Perform one of the following functions and restart:
• Manual homing.
• Start homing in the program.
• Set reference.
