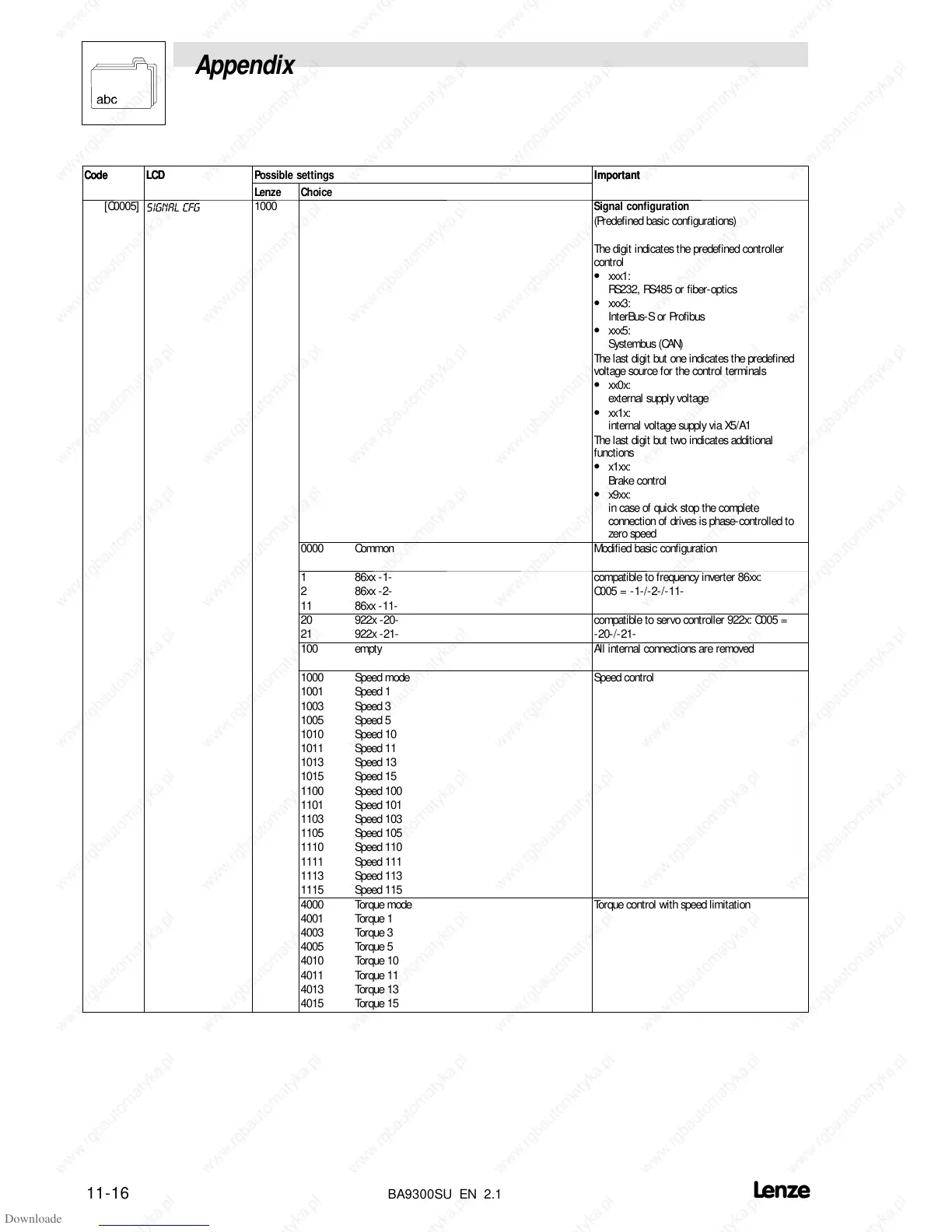

Appendix
11-16
BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
[C0005]
6,*1$/ &)*
1000 Signal configuration
(Predefined basic configurations)
The digit indicates the predefined controller
control
• xxx1:
RS232, RS485 or fiber-optics
• xxx3:
InterBus-S or Profibus
• xxx5:
Systembus (CAN)
The last digit but one indicates the predefined
voltage source for the control terminals
• xx0x:
external supply voltage
• xx1x:
internal voltage supply via X5/A1
The last digit but two indicates additional
functions
• x1xx:
Brake control
• x9xx:
in case of quick stop the complete
connection of drives is phase-controlled to
zero speed
0000 Common Modified basic configuration
1 86xx -1-
2 86xx -2-
11 86xx -11-
compatible to frequency inverter 86xx:
C005 = -1-/-2-/-11-
20 922x -20-
21 922x -21-
compatible to servo controller 922x: C005 =
-20-/-21-
100 empty All internal connections are removed
1000 Speed mode
1001 Speed 1
1003 Speed 3
1005 Speed 5
1010 Speed 10
1011 Speed 11
1013 Speed 13
1015 Speed 15
1100 Speed 100
1101 Speed 101
1103 Speed 103
1105 Speed 105
1110 Speed 110
1111 Speed 111
1113 Speed 113
1115 Speed 115
Speed control
4000 Torque mode
4001 Torque 1
4003 Torque 3
4005 Torque 5
4010 Torque 10
4011 Torque 11
4013 Torque 13
4015 Torque 15
Torque control with speed limitation
