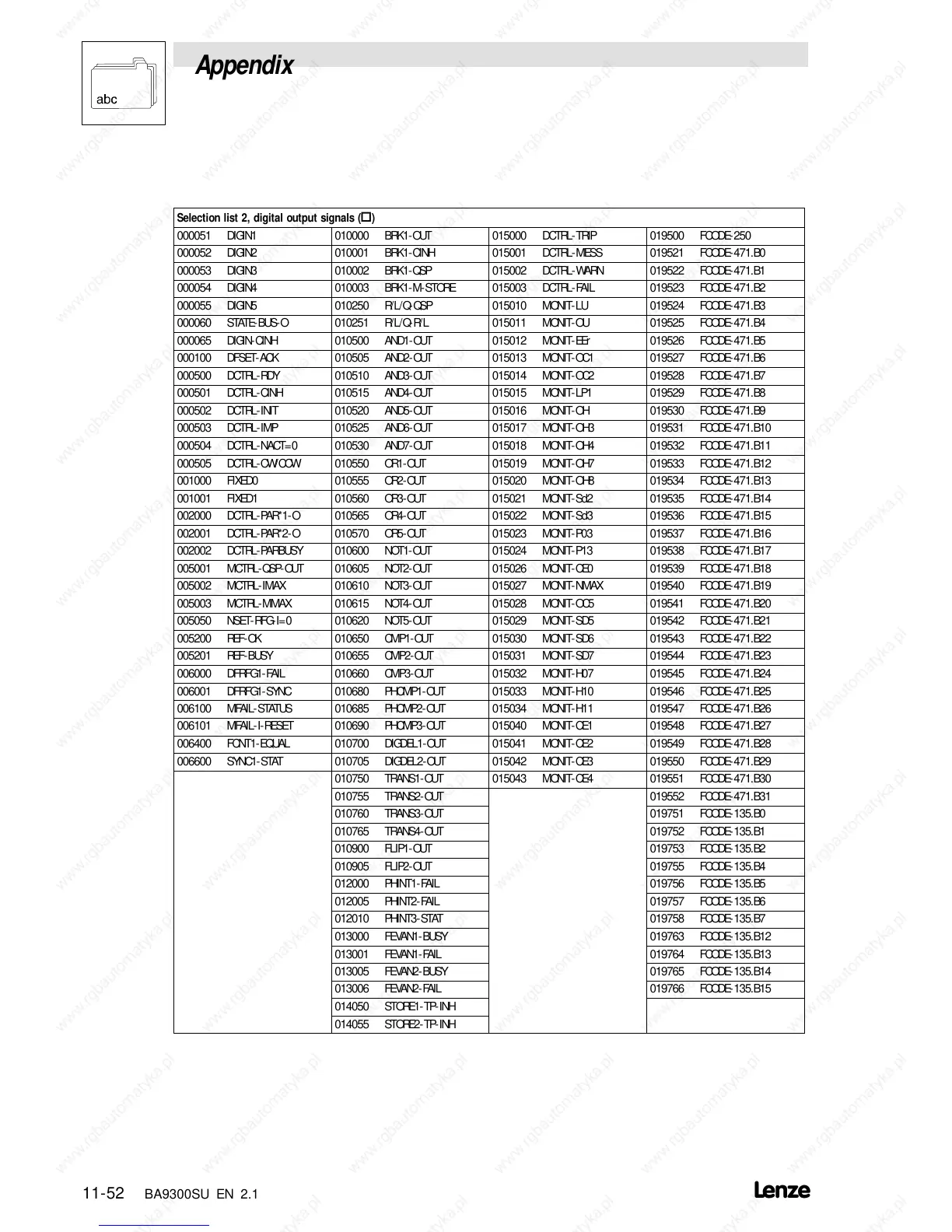

Lenze EVS9322-ES User Manual

Appendix
11-52

BA9300SU EN 2.1
Selection list 2, digital output signals (G)
000051 DIGIN1 010000 BRK1-OUT 015000 DCTRL-TRIP 019500 FCODE-250
000052 DIGIN2 010001 BRK1-CINH 015001 DCTRL-MESS 019521 FCODE-471.B0
000053 DIGIN3 010002 BRK1-QSP 015002 DCTRL-WARN 019522 FCODE-471.B1
000054 DIGIN4 010003 BRK1-M-STORE 015003 DCTRL-FAIL 019523 FCODE-471.B2
000055 DIGIN5 010250 R/L/Q-QSP 015010 MONIT-LU 019524 FCODE-471.B3
000060 STATE-BUS-O 010251 R/L/Q- R/L 015011 MONIT-OU 019525 FCODE-471.B4
000065 DIGIN-CINH 010500 AND1-OUT 015012 MONIT-EEr 019526 FCODE-471.B5
000100 DFSET-ACK 010505 AND2-OUT 015013 MONIT-OC1 019527 FCODE-471.B6
000500 DCTRL-RDY 010510 AND3-OUT 015014 MONIT-OC2 019528 FCODE-471.B7
000501 DCTRL-CINH 010515 AND4-OUT 015015 MONIT-LP1 019529 FCODE-471.B8
000502 DCTRL-INIT 010520 AND5-OUT 015016 MONIT-OH 019530 FCODE-471.B9
000503 DCTRL-IMP 010525 AND6-OUT 015017 MONIT-OH3 019531 FCODE-471.B10
000504 DCTRL-NACT= 0 010530 AND7-OUT 015018 MONIT-OH4 019532 FCODE-471.B11
000505 DCTRL-CW/CCW 010550 OR1-OUT 015019 MONIT-OH7 019533 FCODE-471.B12
001000 FIXED0 010555 OR2-OUT 015020 MONIT-OH8 019534 FCODE-471.B13
001001 FIXED1 010560 OR3-OUT 015021 MONIT-Sd2 019535 FCODE-471.B14
002000 DCTRL-PAR*1-O 010565 OR4-OUT 015022 MONIT-Sd3 019536 FCODE-471.B15
002001 DCTRL-PAR*2-O 010570 OR5-OUT 015023 MONIT-P03 019537 FCODE-471.B16
002002 DCTRL- PARBUSY 010600 NOT1-OUT 015024 MONIT-P13 019538 FCODE-471.B17
005001 MCTRL-QSP-OUT 010605 NOT2-OUT 015026 MONIT-CE0 019539 FCODE-471.B18
005002 MCTRL-IMAX 010610 NOT3-OUT 015027 MONIT-NMAX 019540 FCODE-471.B19
005003 MCTRL-MMAX 010615 NOT4-OUT 015028 MONIT-OC5 019541 FCODE-471.B20
005050 NSET-RFG-I=0 010620 NOT5-OUT 015029 MONIT-SD5 019542 FCODE-471.B21
005200 REF- OK 010650 CMP1-OUT 015030 MONIT-SD6 019543 FCODE-471.B22
005201 REF- BUSY 010655 CMP2-OUT 015031 MONIT-SD7 019544 FCODE-471.B23
006000 DFRFG1-FAIL 010660 CMP3-OUT 015032 MONIT-H07 019545 FCODE-471.B24
006001 DFRFG1-SYNC 010680 PHCMP1-OUT 015033 MONIT-H10 019546 FCODE-471.B25
006100 MFAIL-STATUS 010685 PHCMP2-OUT 015034 MONIT-H11 019547 FCODE-471.B26
006101 MFAIL-I-RESET 010690 PHCMP3-OUT 015040 MONIT-CE1 019548 FCODE-471.B27
006400 FCNT1-EQUAL 010700 DIGDEL1-OUT 015041 MONIT-CE2 019549 FCODE-471.B28
006600 SYNC1-STAT 010705 DIGDEL2-OUT 015042 MONIT-CE3 019550 FCODE-471.B29
010750 TRANS1-OUT 015043 MONIT-CE4 019551 FCODE-471.B30
010755 TRANS2-OUT 019552 FCODE-471.B31
010760 TRANS3-OUT 019751 FCODE-135.B0
010765 TRANS4-OUT 019752 FCODE-135.B1
010900 FLIP1-OUT 019753 FCODE-135.B2
010905 FLIP2-OUT 019755 FCODE-135.B4
012000 PHINT1-FAIL 019756 FCODE-135.B5
012005 PHINT2-FAIL 019757 FCODE-135.B6
012010 PHINT3-STAT 019758 FCODE-135.B7
013000 FEVAN1-BUSY 019763 FCODE-135.B12
013001 FEVAN1-FAIL 019764 FCODE-135.B13
013005 FEVAN2-BUSY 019765 FCODE-135.B14
013006 FEVAN2-FAIL 019766 FCODE-135.B15
014050 STORE1-TP-INH
014055 STORE2-TP-INH
