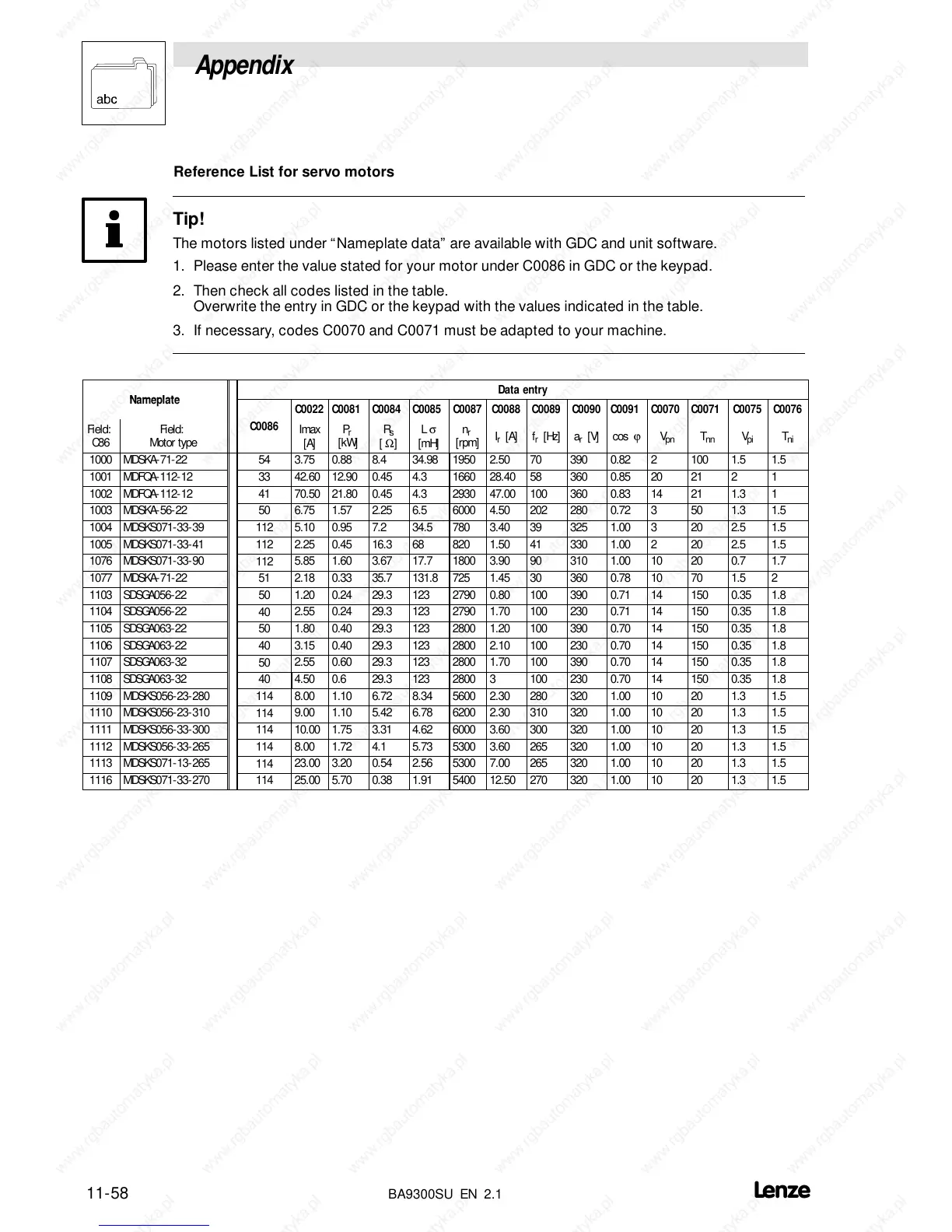

Reference List for servo motors
Tip!
The motors listed under “Nameplate data” are available with GDC and unit software.
1. Please enter the value stated for your motor under C0086 in GDC or the keypad.
2. Then check all codes listed in the table.
Overwrite the entry in GDC or the keypad with the values indicated in the table.
3. If necessary, codes C0070 and C0071 must be adapted to your machine.
N
a
m
e
p
l
a
t
e
Data entry
Nameplate
C0022 C0081 C0084 C0085 C0087 C0088 C0089 C0090 C0091 C0070 C0071 C0075 C0076
Field:
C86
Field:
Motor type
C0086
Imax
[A]
P
r
[kW]
R
s
[ Ω]
L σ
[mH]
n
r
[rpm]
I
r
[A] f
r
[Hz] a
r
[V] cos ϕ V
pn
T
nn
V
pi
T
ni
1000 MDSKA-71-22
54
3.75 0.88 8.4 34.98 1950 2.50 70 390 0.82 2 100 1.5 1.5
1001 MDFQA-112-12
33
42.60 12.90 0.45 4.3 1660 28.40 58 360 0.85 20 21 2 1
1002 MDFQA-112-12
41
70.50 21.80 0.45 4.3 2930 47.00 100 360 0.83 14 21 1.3 1
1003 MDSKA-56-22
50
6.75 1.57 2.25 6.5 6000 4.50 202 280 0.72 3 50 1.3 1.5
1004 MDSKS071-33-39
112
5.10 0.95 7.2 34.5 780 3.40 39 325 1.00 3 20 2.5 1.5
1005 MDSKS071-33-41
112
2.25 0.45 16.3 68 820 1.50 41 330 1.00 2 20 2.5 1.5
1076 MDSKS071-33-90
112
5.85 1.60 3.67 17.7 1800 3.90 90 310 1.00 10 20 0.7 1.7
1077 MDSKA-71-22
51
2.18 0.33 35.7 131.8 725 1.45 30 360 0.78 10 70 1.5 2
1103 SDSGA056-22
50
1.20 0.24 29.3 123 2790 0.80 100 390 0.71 14 150 0.35 1.8
1104 SDSGA056-22
40
2.55 0.24 29.3 123 2790 1.70 100 230 0.71 14 150 0.35 1.8
1105 SDSGA063-22
50
1.80 0.40 29.3 123 2800 1.20 100 390 0.70 14 150 0.35 1.8
1106 SDSGA063-22
40
3.15 0.40 29.3 123 2800 2.10 100 230 0.70 14 150 0.35 1.8
1107 SDSGA063-32
50
2.55 0.60 29.3 123 2800 1.70 100 390 0.70 14 150 0.35 1.8
1108 SDSGA063-32
40
4.50 0.6 29.3 123 2800 3 100 230 0.70 14 150 0.35 1.8
1109 MDSKS056-23-280
114
8.00 1.10 6.72 8.34 5600 2.30 280 320 1.00 10 20 1.3 1.5
1110 MDSKS056-23-310
114
9.00 1.10 5.42 6.78 6200 2.30 310 320 1.00 10 20 1.3 1.5
1111 MDSKS056-33-300
114
10.00 1.75 3.31 4.62 6000 3.60 300 320 1.00 10 20 1.3 1.5
1112 MDSKS056-33-265
114
8.00 1.72 4.1 5.73 5300 3.60 265 320 1.00 10 20 1.3 1.5
1113 MDSKS071-13-265
114
23.00 3.20 0.54 2.56 5300 7.00 265 320 1.00 10 20 1.3 1.5
1116 MDSKS071-33-270
114
25.00 5.70 0.38 1.91 5400 12.50 270 320 1.00 10 20 1.3 1.5
