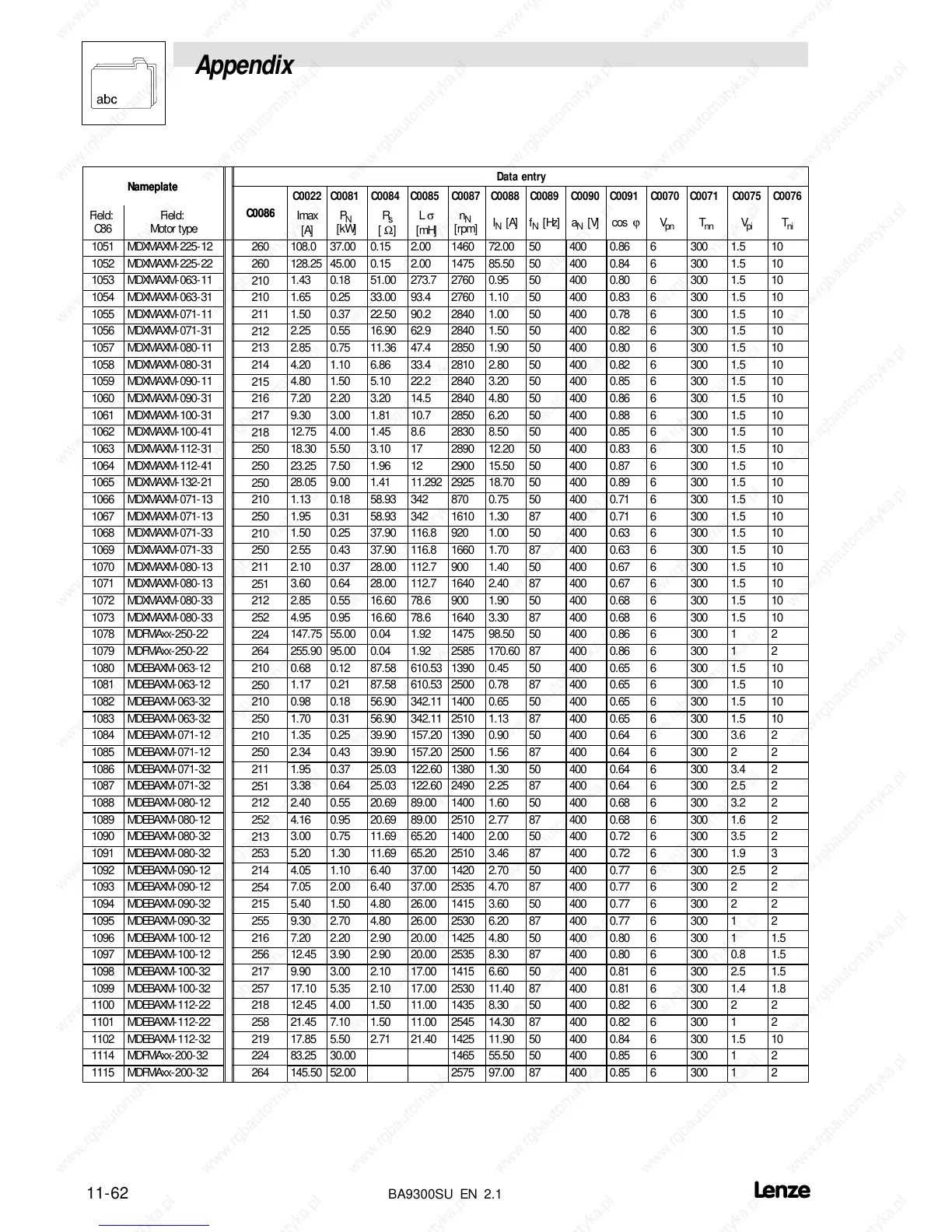

Lenze EVS9322-ES User Manual

Appendix
11-62

BA9300SU EN 2.1
Nameplate
Data entry
Nameplate
C0076C0075C0071C0070C0091C0090C0089C0088C0087C0085C0084C0081C0022
C0086
Field:
C86
T
ni
V
pi
T
nn
V
pn
cos ϕa
N
[V]f
N
[Hz]I
N
[A]
n
N
[rpm]
L σ
[mH]
R
s
[ Ω]
P
N
[kW]
Imax
[A]
C0086
Field:
Motor type
1051 MDXMAXM-225-12
260
108.0 37.00 0.15 2.00 1460 72.00 50 400 0.86 6 300 1.5 10
1052 MDXMAXM-225-22
260
128.25 45.00 0.15 2.00 1475 85.50 50 400 0.84 6 300 1.5 10
1053 MDXMAXM-063-11
210
1.43 0.18 51.00 273.7 2760 0.95 50 400 0.80 6 300 1.5 10
1054 MDXMAXM-063-31
210
1.65 0.25 33.00 93.4 2760 1.10 50 400 0.83 6 300 1.5 10
1055 MDXMAXM-071-11
211
1.50 0.37 22.50 90.2 2840 1.00 50 400 0.78 6 300 1.5 10
1056 MDXMAXM-071-31
212
2.25 0.55 16.90 62.9 2840 1.50 50 400 0.82 6 300 1.5 10
1057 MDXMAXM-080-11
213
2.85 0.75 11.36 47.4 2850 1.90 50 400 0.80 6 300 1.5 10
1058 MDXMAXM-080-31
214
4.20 1.10 6.86 33.4 2810 2.80 50 400 0.82 6 300 1.5 10
1059 MDXMAXM-090-11
215
4.80 1.50 5.10 22.2 2840 3.20 50 400 0.85 6 300 1.5 10
1060 MDXMAXM-090-31
216
7.20 2.20 3.20 14.5 2840 4.80 50 400 0.86 6 300 1.5 10
1061 MDXMAXM-100-31
217
9.30 3.00 1.81 10.7 2850 6.20 50 400 0.88 6 300 1.5 10
1062 MDXMAXM-100-41
218
12.75 4.00 1.45 8.6 2830 8.50 50 400 0.85 6 300 1.5 10
1063 MDXMAXM-112-31
250
18.30 5.50 3.10 17 2890 12.20 50 400 0.83 6 300 1.5 10
1064 MDXMAXM-112-41
250
23.25 7.50 1.96 12 2900 15.50 50 400 0.87 6 300 1.5 10
1065 MDXMAXM-132-21
250
28.05 9.00 1.41 11.292 2925 18.70 50 400 0.89 6 300 1.5 10
1066 MDXMAXM-071-13
210
1.13 0.18 58.93 342 870 0.75 50 400 0.71 6 300 1.5 10
1067 MDXMAXM-071-13
250
1.95 0.31 58.93 342 1610 1.30 87 400 0.71 6 300 1.5 10
1068 MDXMAXM-071-33
210
1.50 0.25 37.90 116.8 920 1.00 50 400 0.63 6 300 1.5 10
1069 MDXMAXM-071-33
250
2.55 0.43 37.90 116.8 1660 1.70 87 400 0.63 6 300 1.5 10
1070 MDXMAXM-080-13
211
2.10 0.37 28.00 112.7 900 1.40 50 400 0.67 6 300 1.5 10
1071 MDXMAXM-080-13
251
3.60 0.64 28.00 112.7 1640 2.40 87 400 0.67 6 300 1.5 10
1072 MDXMAXM-080-33
212
2.85 0.55 16.60 78.6 900 1.90 50 400 0.68 6 300 1.5 10
1073 MDXMAXM-080-33
252
4.95 0.95 16.60 78.6 1640 3.30 87 400 0.68 6 300 1.5 10
1078 MDFMAxx-250-22
224
147.75 55.00 0.04 1.92 1475 98.50 50 400 0.86 6 300 1 2
1079 MDFMAxx-250-22
264
255.90 95.00 0.04 1.92 2585 170.60 87 400 0.86 6 300 1 2
1080 MDEBAXM-063-12
210
0.68 0.12 87.58 610.53 1390 0.45 50 400 0.65 6 300 1.5 10
1081 MDEBAXM-063-12
250
1.17 0.21 87.58 610.53 2500 0.78 87 400 0.65 6 300 1.5 10
1082 MDEBAXM-063-32
210
0.98 0.18 56.90 342.11 1400 0.65 50 400 0.65 6 300 1.5 10
1083 MDEBAXM-063-32
250
1.70 0.31 56.90 342.11 2510 1.13 87 400 0.65 6 300 1.5 10
1084 MDEBAXM-071-12
210
1.35 0.25 39.90 157.20 1390 0.90 50 400 0.64 6 300 3.6 2
1085 MDEBAXM-071-12
250
2.34 0.43 39.90 157.20 2500 1.56 87 400 0.64 6 300 2 2
1086 MDEBAXM-071-32
211
1.95 0.37 25.03 122.60 1380 1.30 50 400 0.64 6 300 3.4 2
1087 MDEBAXM-071-32
251
3.38 0.64 25.03 122.60 2490 2.25 87 400 0.64 6 300 2.5 2
1088 MDEBAXM-080-12
212
2.40 0.55 20.69 89.00 1400 1.60 50 400 0.68 6 300 3.2 2
1089 MDEBAXM-080-12
252
4.16 0.95 20.69 89.00 2510 2.77 87 400 0.68 6 300 1.6 2
1090 MDEBAXM-080-32
213
3.00 0.75 11.69 65.20 1400 2.00 50 400 0.72 6 300 3.5 2
1091 MDEBAXM-080-32
253
5.20 1.30 11.69 65.20 2510 3.46 87 400 0.72 6 300 1.9 3
1092 MDEBAXM-090-12
214
4.05 1.10 6.40 37.00 1420 2.70 50 400 0.77 6 300 2.5 2
1093 MDEBAXM-090-12
254
7.05 2.00 6.40 37.00 2535 4.70 87 400 0.77 6 300 2 2
1094 MDEBAXM-090-32
215
5.40 1.50 4.80 26.00 1415 3.60 50 400 0.77 6 300 2 2
1095 MDEBAXM-090-32
255
9.30 2.70 4.80 26.00 2530 6.20 87 400 0.77 6 300 1 2
1096 MDEBAXM-100-12
216
7.20 2.20 2.90 20.00 1425 4.80 50 400 0.80 6 300 1 1.5
1097 MDEBAXM-100-12
256
12.45 3.90 2.90 20.00 2535 8.30 87 400 0.80 6 300 0.8 1.5
1098 MDEBAXM-100-32
217
9.90 3.00 2.10 17.00 1415 6.60 50 400 0.81 6 300 2.5 1.5
1099 MDEBAXM-100-32
257
17.10 5.35 2.10 17.00 2530 11.40 87 400 0.81 6 300 1.4 1.8
1100 MDEBAXM-112-22
218
12.45 4.00 1.50 11.00 1435 8.30 50 400 0.82 6 300 2 2
1101 MDEBAXM-112-22
258
21.45 7.10 1.50 11.00 2545 14.30 87 400 0.82 6 300 1 2
1102 MDEBAXM-112-32
219
17.85 5.50 2.71 21.40 1425 11.90 50 400 0.84 6 300 1.5 10
1114 MDFMAxx-200-32
224
83.25 30.00 1465 55.50 50 400 0.85 6 300 1 2
1115 MDFMAxx-200-32
264
145.50 52.00 2575 97.00 87 400 0.85 6 300 1 2
