Installation
4-16

BA9300SU EN 2.1
Types 9330 and 9331
T1
T2
PE
UV
W
M5 X 12


• Strain relief by using cable binders .
• Correct screen connection with screened cables:
– Apply motor cable screen to the screening plate using
clamp and screws M5x12
ó.
– Fix the screen of the thermal contact (see
^ 4-28 ) at
the stud PE net to the motor connection with a surface
as large as possible.
Type 9332
T1
T2
PE

U
V
W
M5 X 12
M4 X 12


• Strain relief by using cable clamps and screws M4x12. ì.
– Additional strain relief/fixing can be achieved by using
cable binders.
.
• Correct screen connection with screened cables:
– Apply motor cable screen to the screening plate using
clamp and screws M5x12
ó.
– Fix the screen of the thermal contact (see
^ 4-28 ) at
the stud PE net to the motor connection with a surface
as large as possible.

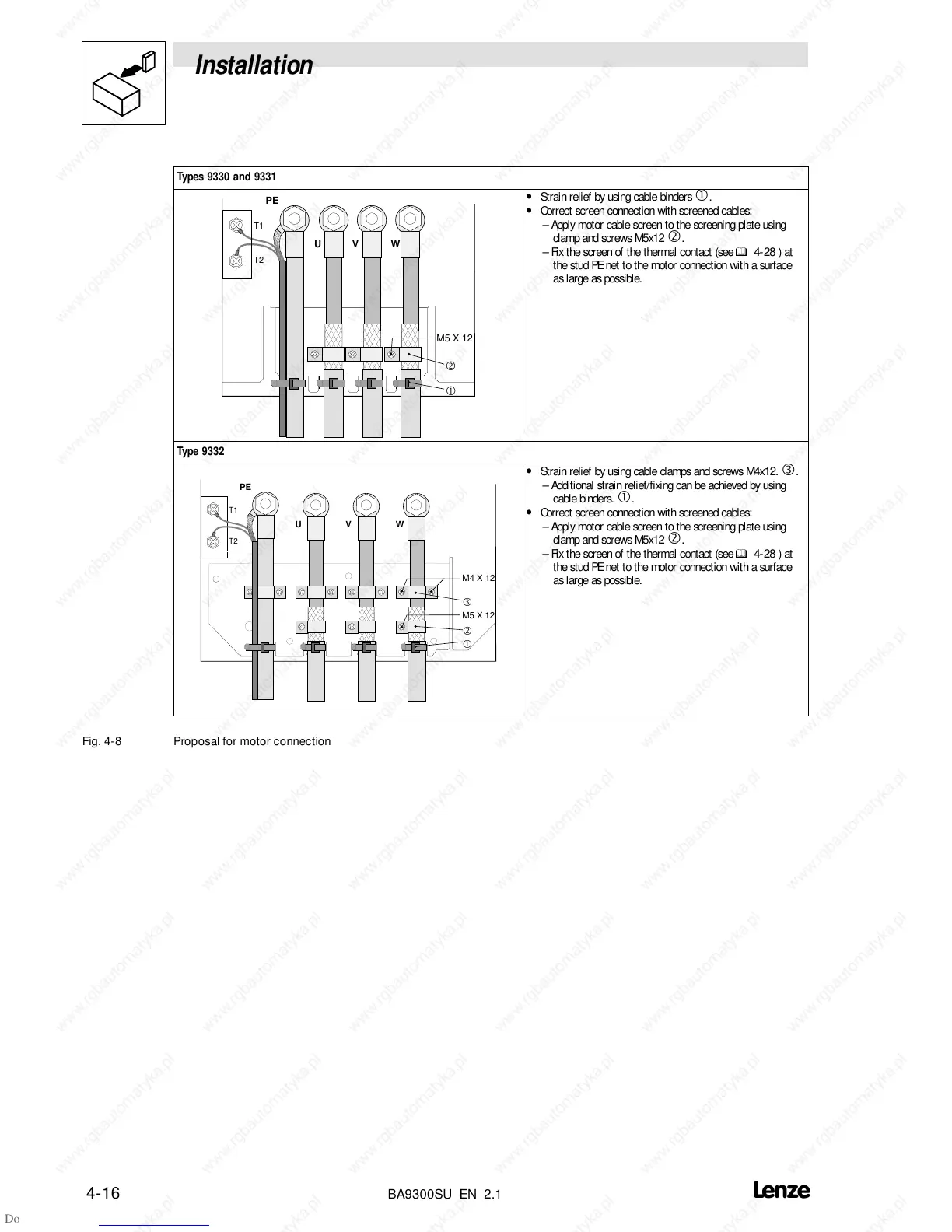

Fig. 4-8 Proposal for motor connection
