Installation
4-35
BA9300SU EN 2.1
K1
K1
L3
N
PE
L1
L2
U
V
W
M
3~
PE
PE
L1 L2 L3
K1
F1 ... F3
932X - 933X
+UG -UG
+UG
-UG
9351
A3
28
E1E2 E3E4E5
A1
A2
59
39
A4
+
123
4
763
+
7
62
Z1
-X1
Z2
K1
OFF
ON
RFR
RB
T1
T2
R
X7
F4 F5
K35.0124
PES
PES
PES
PES
PES
PES
PES
PES
PES
PES
PE
PE
PE

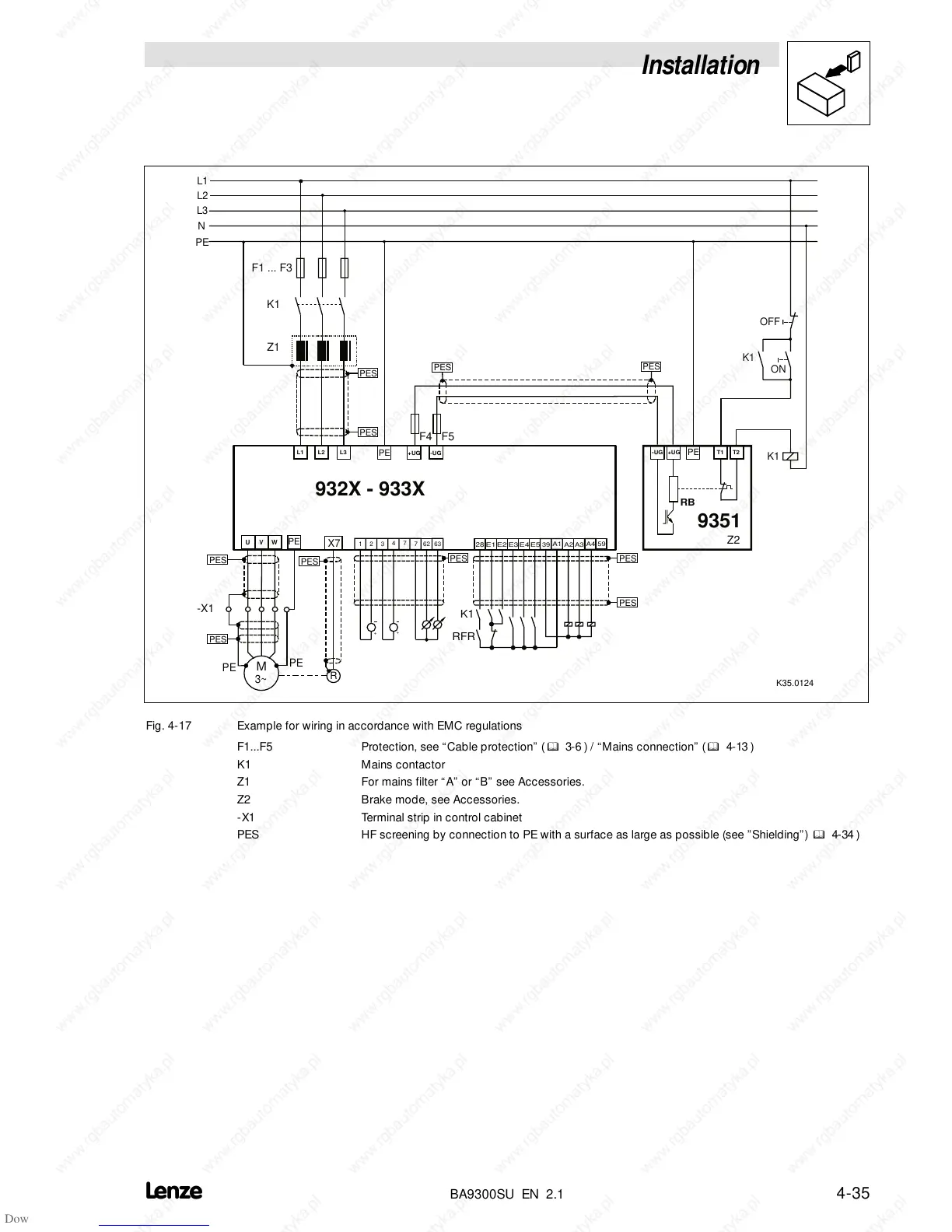

Fig. 4-17 Example for wiring in accordance with EMC regulations
F1...F5 Protection, see “Cable protection” (
^
3-6 )/“Mains connection” (
^
4-13 )
K1 Mains contactor
Z1 For mains filter “A” or “B” see Accessories.
Z2 Brake mode, see Accessories.
-X1 Terminal strip in control cabinet
PES HF screening by connection to PE with a surface as large as possible (see ”Shielding”)
^
4-34 )
