Lenze L-force PROFIBUS-DP User Manual

Product description
Connections and interfaces
3

14
EDS82ZAFPC010 EN 4.0

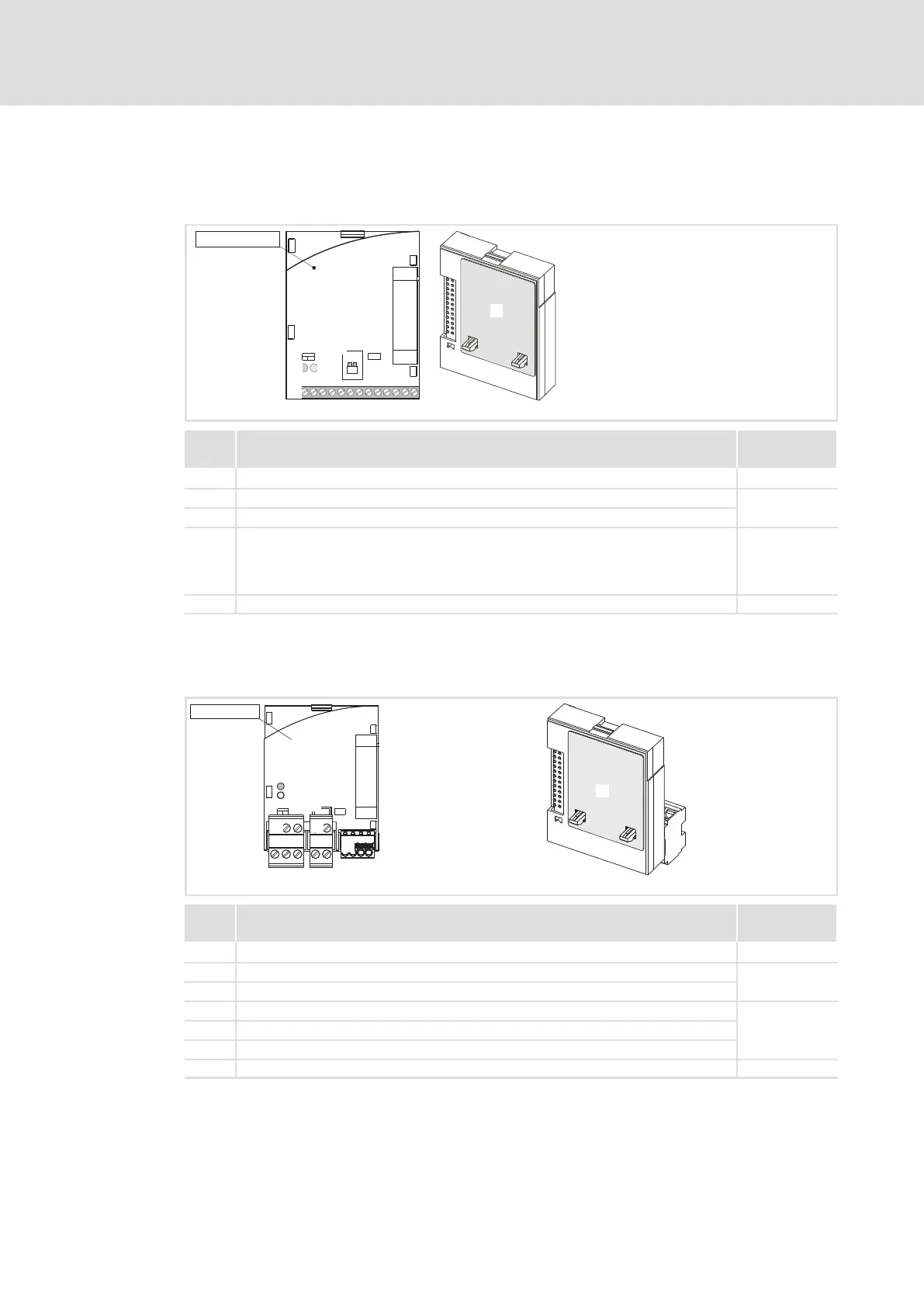

3.4 Connections and interfaces
E82ZAFPC001function module
4
ON
AABB
CN
VP
7
40 39 28 20 59
7
+
0
2
3
1
E82ZAFPC001
E82ZAFP004/AFX009
Pos. Description Detailed
information

DIP switch for activating the bus terminating resistor  40

Status of PROFIBUS communication (yellow LED)
 67

Connection status to the standard device (green LED)

Terminal strip X3, connection for
l PROFIBUS
l Controller inhibit (CINH)
l External voltage supply
 28

Nameplate  12
E82ZAFPC010 function module
2
3
4
5
0
1
E82ZAFPC010
6
E82ZAFP012/E82ZAFX015
Pos. Description Detailed
information

DIP switch for activating the bus terminating resistor  40

Status of PROFIBUS communication (yellow LED)
 67

Connection status to the standard device (green LED)

Plug connector X3.1, connection for PROFIBUS
 29

Plug connector X3.2, connection for external voltage supply

Plug connector X3.3, connection for controller inhibit (CINH)

Nameplate  12
