Diagnostics
LED status displays
9
67
EDS82ZAFPC010 EN 4.0
9 Diagnostics

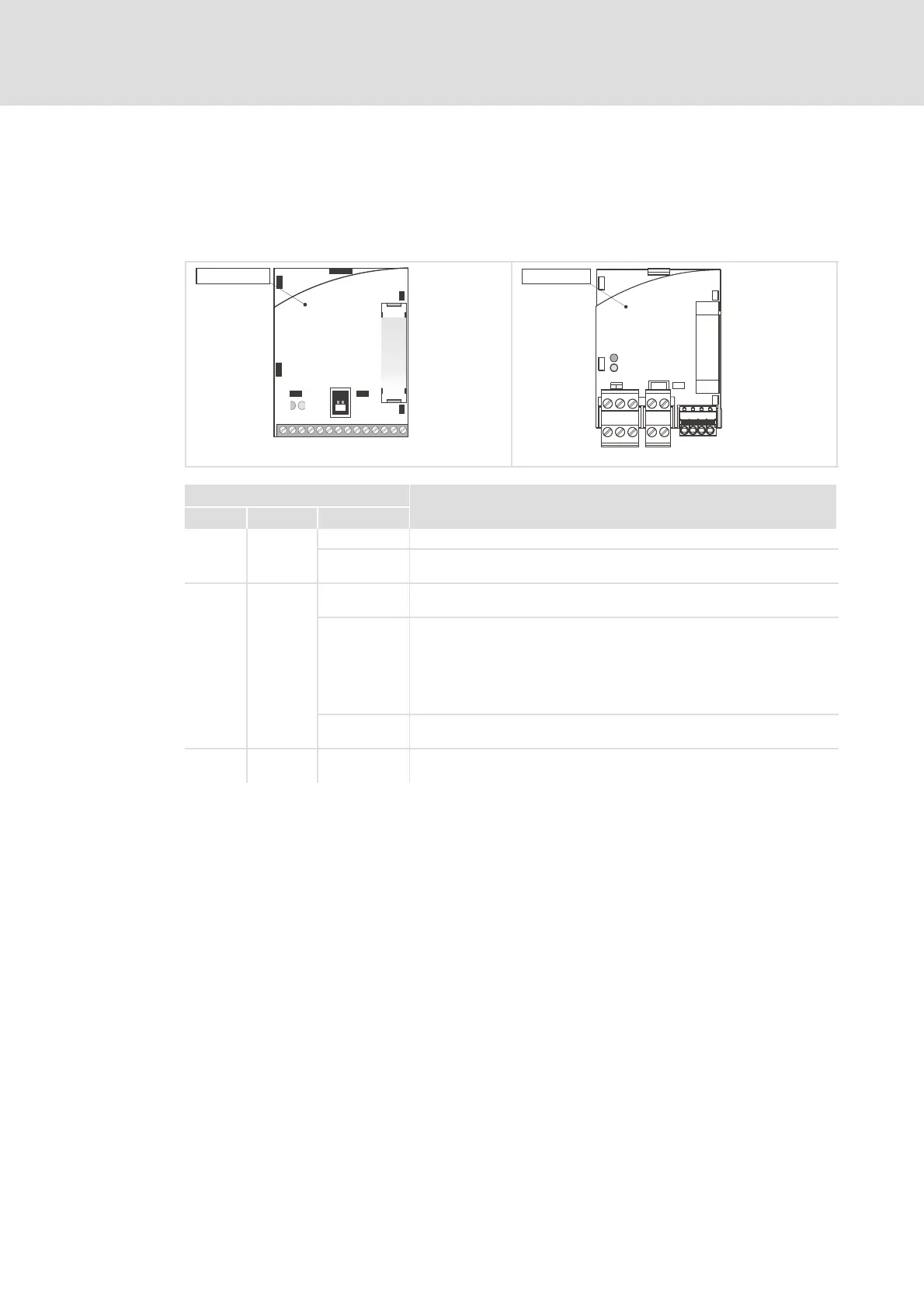

9.1 LED status displays
1
ON
AABB
CN
VP
7
40 39 28 20 59
7
+
2
1
E82ZAFP00x
2
1
E82ZAFP010
E82ZAFP004 E82ZAFP008
LED
Description
Pos. Colour Condition
yellow
off No communication with the PROFIBUS master.
blinking Communication with the PROFIBUS master has been established via the
function module.
green
off l The function module is not supplied with voltage.
l The standard device and/or the external voltage supply is switched off.
blinking The function module is supplied with voltage but is not connected to the
standard device.
Causes:
l The standard device is switched off.
l The standard device is in the initialisation phase.
l The standard device is not available
on The function module is supplied with voltage and is connected to the
standard device.
+ yellow/
green
blinking Internal function module error
