Electrical installation
Screwed connections on the terminal box
6
29
Lenze ¯ BA 33.0005 ¯ 5.0

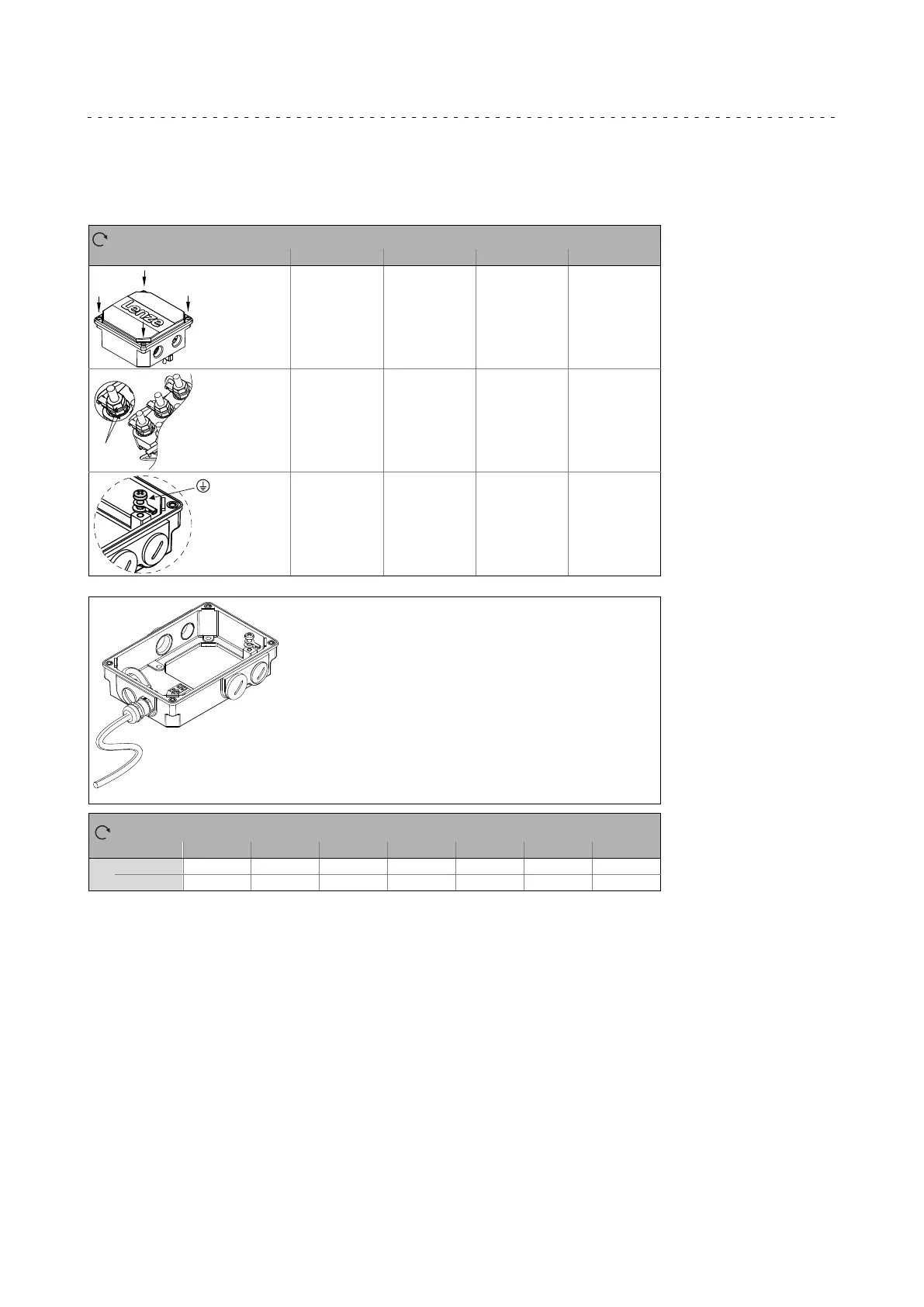

6.4 Screwed connections on the terminal box
Tightening torques
[Nm] +/− 10%
M4 M5 M6 M8
2.2 3.5 4.5 −−−−−
CuZn
1.2 2.0 3.0 6.0
2.2 3.5 −−−−− −−−−−
[Nm]
Material M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5
Plastic 0.7 1 1 2.5 3 3 3
Metal 3 3 4 6 8 10 14
Tab. 1 Locking screws and cable glands
