Maintenance/repair
Repair
Assembly of the cover seal
8
49
Lenze ¯ BA 33.0005 ¯ 5.0
Mounting the flange without additional screws
1. Apply the flange (6) to the end shield (15). Check pitch circle and thread of the
screw−on bore holes.
2. Mount the brake.
8.4.6 Assembly of the cover seal
15
13
12
10
1
1.2
12
15
6
13
27
13
10
KL458−010−a KL458−007−a

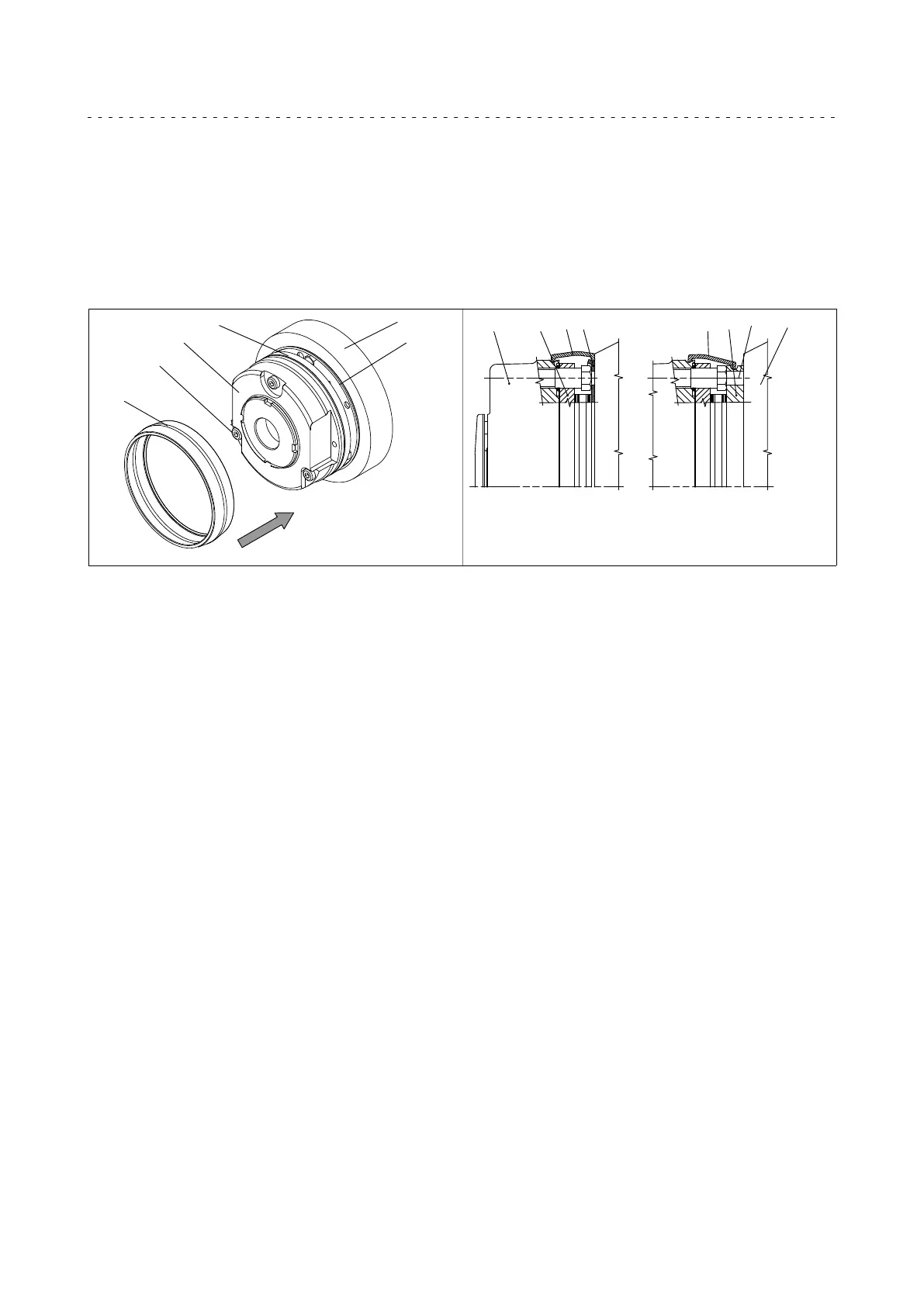

Fig. 9 Cover ring mounting
1 Complete stator 10 Cheese head screw 15 End shield
2 Armature plate 27 Friction plate
6 Flange 13 Cover ring
1. Insert the cable through the cover ring.
2. Push the cover ring over the stator.
3. Press the lips of the cover ring into the groove of rotor and flange.
– If a friction plate is used, the lip must be pulled over the flanged edge.
8.5 Repair
¯ We recommend having all repairs carried out by the Lenze customer service.
