Printhead removal
1. Remove the top cover. See “Top cover removal” on page 4-14 for
more information.
2. Remove the right side cover. See “Right side cover removal” on
page 4-12.
3. Notice the alignment of the printhead at each screw.
4. Unplug the printhead cables at locations J13 and J14.

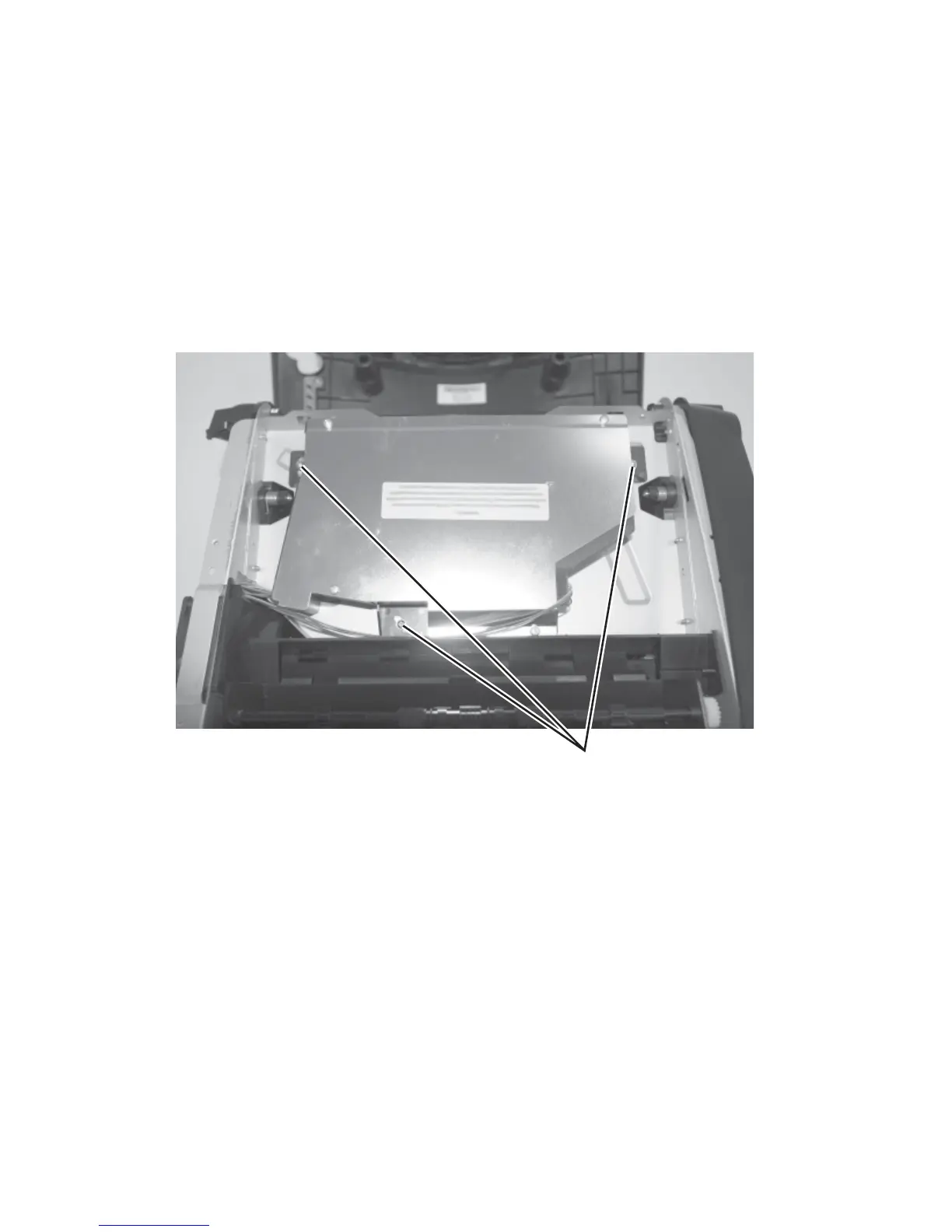

5. Remove three screws (A) securing the printhead to the cross brace.
6. Remove the printhead.
Install the new printhead in the same position as the old one. Always run the
registration test following replacement, and adjust as needed. See
“Registration” on page 3-21.
Check skew caused by the printhead by printing the Quick Test. For E340
and E342n, see “Quick Test” on page 3-22. For the E238, E240, and
E240n, enter Diagnostic mode (see “Diagnostics mode selections” on
page 3-11), and select Continuous print—simplex Tray 1.
The printed test sheets have horizontal lines and two vertical lines.
Printhead misalignment causes skewed horizontal lines, but not vertical
lines (that is, the vertical lines will be parallel to the vertical edges). If the
ends of the horizontal lines on the right side drop down from the left side to
the right side, adjust the printhead clockwise to the printer. Adjust the
printhead counterclockwise if the horizontal lines rise from left to right.
A

Lexmark E342n Specifications

General

Processor frequency	366 MHz
Maximum internal memory	160 MB
Sound power level (standby)	27 dB
Sound pressure level (printing)	52 dB
I/O ports	1x IEEE 1284 Bidirectional Parallel 1x RJ-45 1x USB 2.0
Mac compatibility	Yes
Printer management	Zero configuration, DDNS, mDNS, NTP: Network Time Protocol, ping, finger, telnet, TFTP
Networking features	Ethernet 10/100BaseTx
Standard media sizes	10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, B5 Envelope, C5 Envelope, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal
Compatible operating systems	Red Flag Linux 4.0 Linpus Linux 9.2 Red Hat Enterprise Linux WS 3.0, 4.0 SuSE Linux Enterprise Server 8.0, 9.0 SuSE Linux Professional 9.0, 9.1, 9.2 Debian GNU/Linux 3.0 Linspire Linux 4.5 - Microsoft Windows 2000 (Professional/Server/Advanced Server) Microsoft Windows NT (4.00/4.00 Server) Microsoft Windows Me Microsoft Windows XP (Home, Professional) Microsoft Windows Server 2003 (Standard, Enterprise) Microsoft Windows 98 2nd Edition Microsoft Windows XP Professional x64 Microsoft Windows Server 2003 running Terminal Server Microsoft Windows 2000 Server running Terminal Services - Novell Open Enterprise Server Novell NetWare 5.x, 6.x + iPrint, Novell Distributed Print Services (NDPS) IBM iSeries or IBM AS/400 - Sun Solaris 7, 8, 9, 10 HP-UX 11.00, 11.11 IBM AIX 5.1, 5.2, 5.3 Sun Solaris 7, 8, 9, 10 HP-UX 11.00, 11.11 IBM AIX 5.1, 5.2, 5.3 - Apple Mac OS X Apple Mac OS 9.x
Print quality (black, best quality)	2400 DPI
Color	No
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Maximum input capacity	250 sheets
Maximum print size	210 x 297 mm
Media types supported	Card Stock, Envelopes, Labels, Plain Paper, Transparencies
Media weight (tray 1)	75 gsm
Maximum ISO A-series paper size	A4
Display	LCD
Certification	FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Maximum duty cycle	15000 pages per month
Package weight	12100 g
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	396 x 353 x 249 mm
Maximum dimensions (W x D x H)	460 x 420 x 355 mm
