LG 19LG3000 User Manual

EXTERNAL EQUIPMENT SETUP

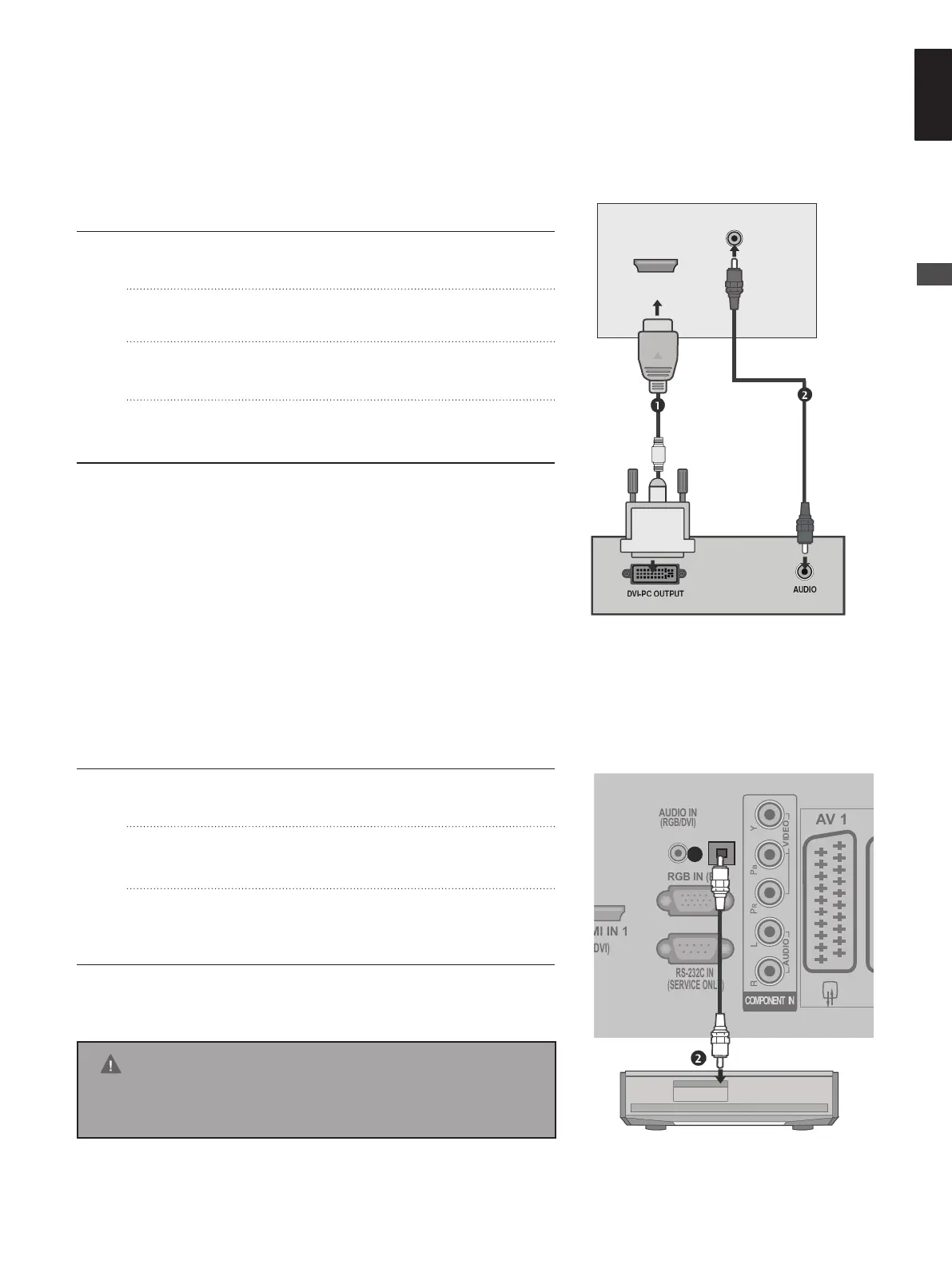

Connecting with a HDMI to DVI cable

Connect the digital set-top box to HDMI IN 1(DVI) jack on
the TV.

Connect the audio output of the digital set-top box to the
AUDIO IN (RGB/DVI) jack on the TV.

Turn on the digital set-top box. (Refer to the owner’s manual
for the digital set-top box.)

Select HDMI1 input source using the INPUT button on the
remote control.
Digital Audio Out Setup
- Sending the TV’s audio signal to external audio equipment via the Digital Audio Output (Optical) port.

Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.

Connect the other end of the optical cable to the digital
audio (optical) input on the audio equipment.

Set the “ TV Speaker option - Off ” in the AUDIO menu.
(► p.58) Refer to the external audio equipment instruction
manual for operation.
CAUTION
 Do not look into the optical output port. Looking at the laser
beam may damage your vision.
AUDIO IN
(RGB/DVI)
HDMI IN 1
(DVI)
RGB IN (PC)
AV 1 AV 2
RS-232C IN
(SERVICE ONLY)
AUDIO IN
(RGB/DVI)
HDMI IN 1
(DVI)
COMPONENT IN
VIDEO
AUDIO
OPTICAL
DIGITAL
AUDIOOUT
1
17
ENGLISH
EXTERNAL EQUIPMENT SETUP

LG 19LG3000 Specifications

General

Teletext function	Yes
RMS rated power	6 W
Number of speakers	2
Equalizer bands quantity	5
Audio (L/R) in	1
Product color	Black
LED indicators	Stand-by
HD type	WXGA
Display diagonal	19 \
Display brightness	380 cd/m²
Display resolution	1440 x 900 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, vertical	170 °
Viewing angle, horizontal	160 °
Power consumption (standby)	1 W
Power consumption (typical)	56 W

Weight and Dimensions

Depth (with stand)	189.2 mm
Width (with stand)	458.8 mm
Height (with stand)	391 mm
Weight (with stand)	5020 g
Depth (without stand)	69 mm
Height (without stand)	344.5 mm
Weight (without stand)	4760 g
