LG 19LG3100 User Manual

170
APPENDIX
APPENDIX

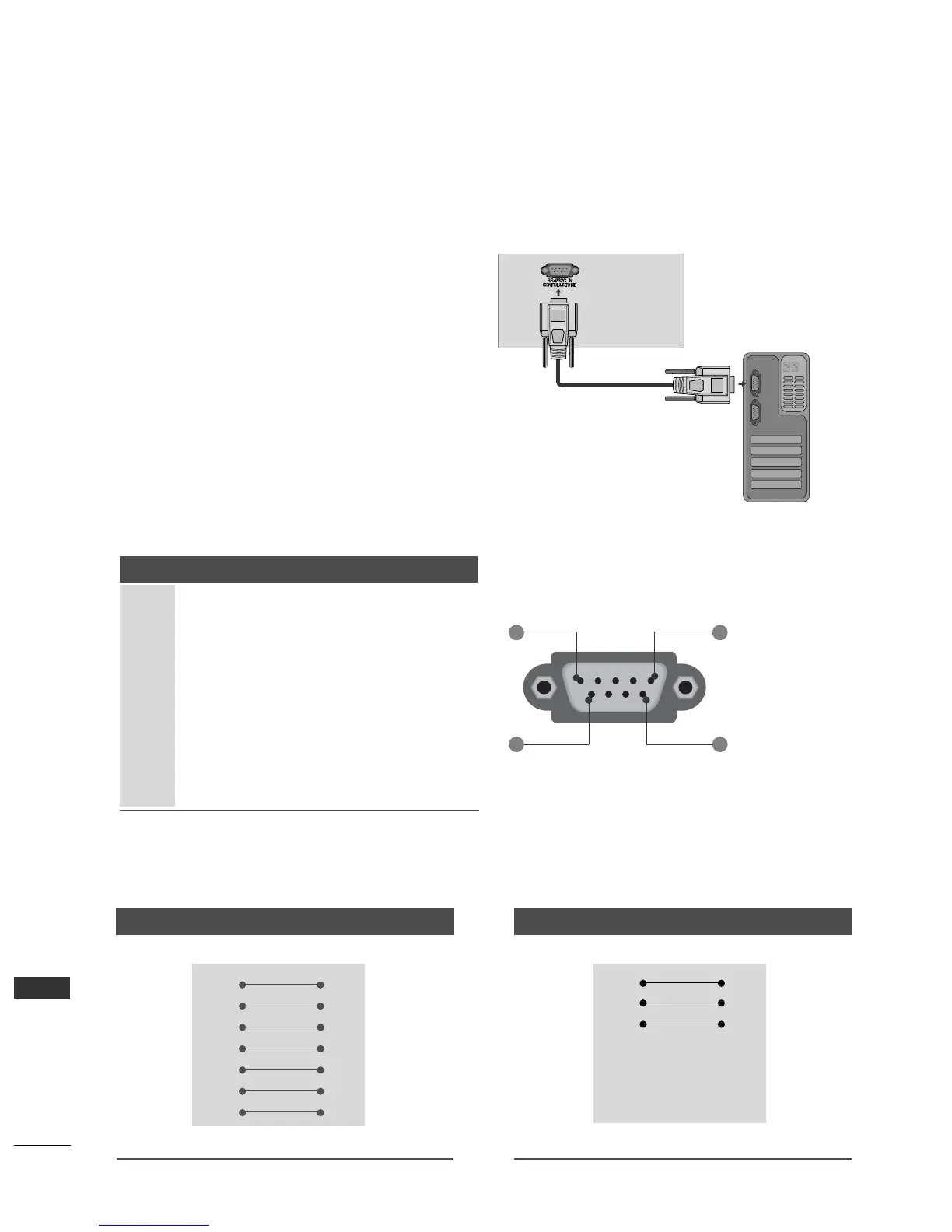

EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an A/V
control system) to control the product’s functions
externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied
with the product.
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1 5
6 9
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9

LG 19LG3100 Specifications

General

Audio system	SRS TruSurround
RMS rated power	6 W
Number of speakers	2
Child lock	Yes
Package weight	6200 g
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
Product color	White
LED indicators	Stand-by
Sustainability certificates	ENERGY STAR
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Contrast ratio (dynamic)	8000:1
Display diagonal (metric)	48 cm
Power consumption (standby)	1 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth (with stand)	189.2 mm
Width (with stand)	458.8 mm
Height (with stand)	391 mm
Weight (with stand)	5000 g
Depth (without stand)	85.4 mm
Height (without stand)	344.5 mm
Weight (without stand)	4800 g
