EXTERNAL EQUIPMENT SETUP
GG
If both S-VIDEO and VIDEO sockets have been connected to
the S-VHS VCR simultaneously, only the S-VIDEO can be
received.
NOTE
GG
Check if the CI module is inserted into the PCMCIA card slot in
the right direction. If the module is not inserted properly, this
can cause damage to the TV and the PCMCIA card slot.
NOTE

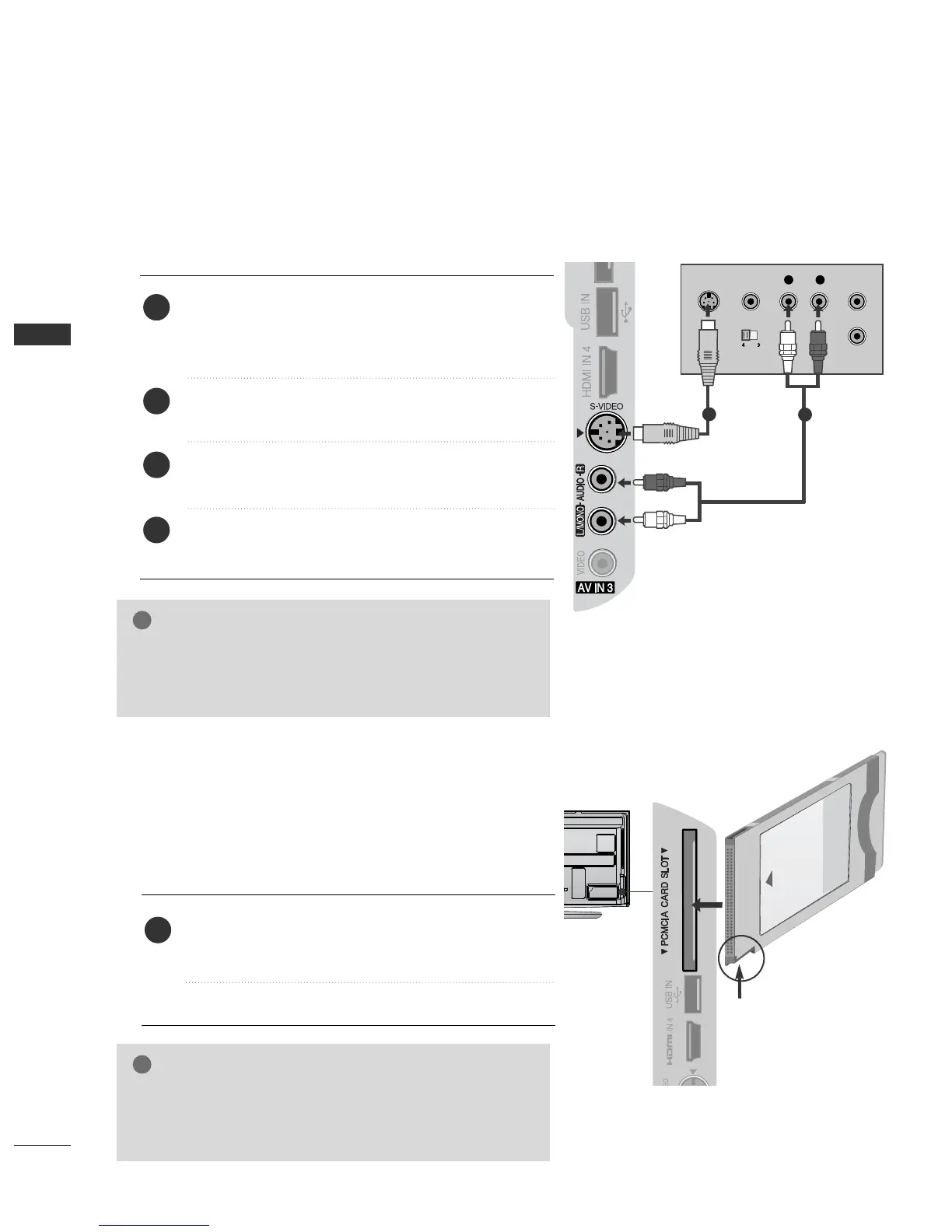

Connecting with a S-Video cable
(Only 32/37/42/47LH70
**,
50/60PS70
**,
50/60PS80
**,
42/50PQ35
**,
42PQ65
**,
50PS65
**
)
Connect the S-VIDEO output of the VCR to the
SS --
VVIIDDEEOO
input on the TV set. The picture quality is
improved; compared to normal composite (RCA cable)
input.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the TV.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select
AAVV33
input source with using the
IINNPPUUTT
button on
the remote control.
2
3
4
1
1
2
Insert the CI Module to
PPCCMMCCIIAA
(Personal Computer
Memory Card International Association)
CCAARRDD SSLLOOTT
of TV as shown.
For further information, see p.77.
1
INSERTION OF CI MODULE
-- TToo vviieeww tthhee eennccrryypptteedd ((ppaayy)) sseerrvviicceess iinn ddiiggiittaall TTVV
mmooddee..
-- TThhiiss ffeeaattuurree iiss nnoott aavvaaiillaabbllee iinn aallll ccoouunnttrriieess..
1
Check this point as shown
and insert the CI Module.
