LG 19LG3100 User Manual

43
EXTERNAL EQUIPMENT SETUP
L
R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
(R) AUDIO (L)
AUDIO/
VIDEO

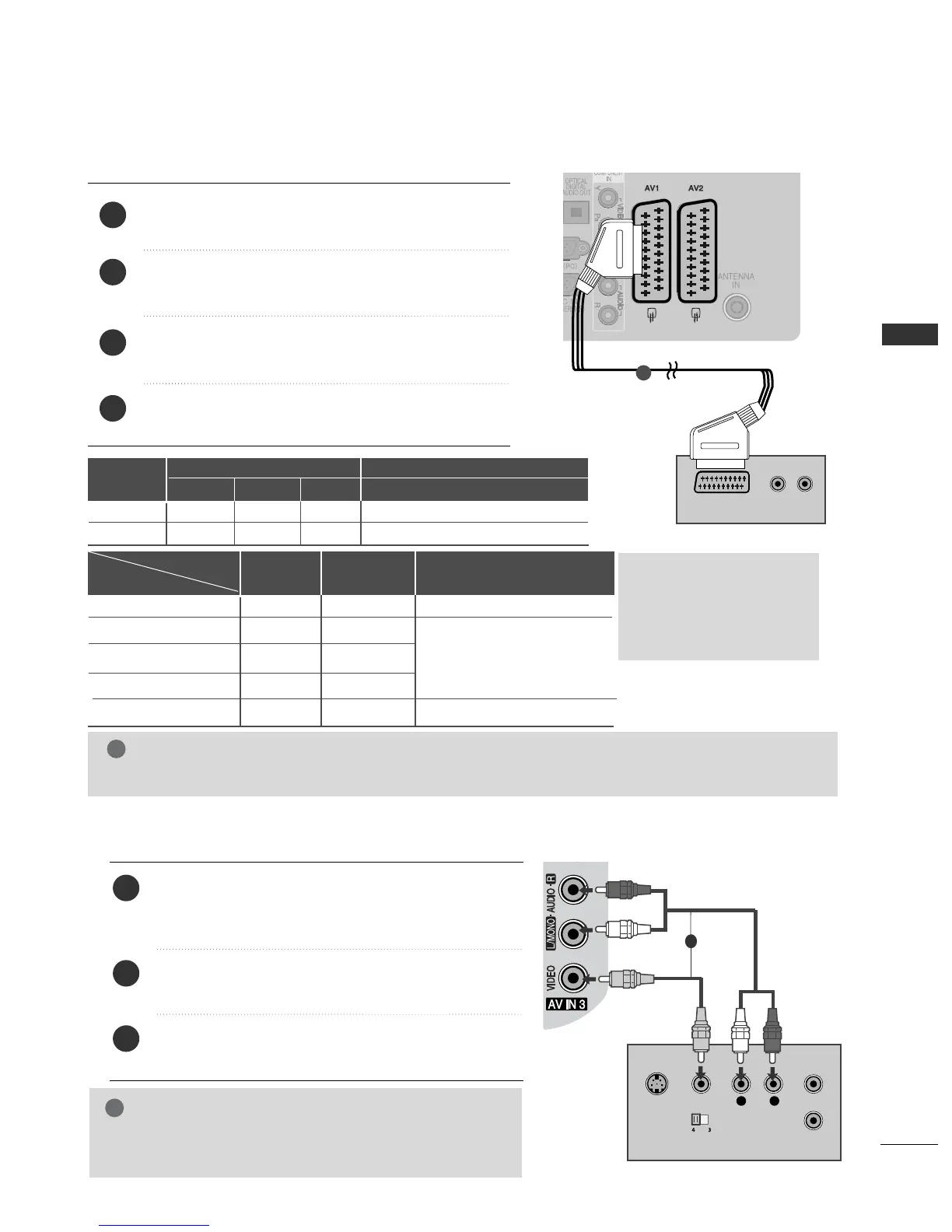

Connecting with a Euro Scart cable
1
Connect the Euro scart socket of the VCR to the
AAVV11
Euro scart socket on the TV.
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select
AAVV11
input source using the
IINNPPUUTT
button on
the remote control.
If connected to
AAVV22
Euro scart socket, select
AAVV22
input source.
2
3
4
1
Connecting with a RCA cable
(Except for 19/22LU40
**,
19/22LU50
**,
19/22LH20
**,
19/22LD3
**,
19/22LG31
**,
32/37/42LF25
**
)
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
VCR. Match the jack colours (Video = yellow, Audio Left
= white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on
the VCR.
(
Refer to the VCR owner’s manual.
)
Select
AAVV33
input source using the
IINNPPUUTT
button on
the remote control.
1
2
3
GG
If you have a mono VCR, connect the audio cable from the
VCR to the
AAUUDDIIOO LL//MMOONNOO
jack of the TV.
NOTE
!
1
NOTE
!
GG
Any Euro Scart cable used must be signal shielded.
Scart
AV1
AV2
Input
Video Audio RGB
Output
Video, Audio
Analogue only
Analogue
, DTV, AV1/2/3 output is available.
OOO
OOX
Digital TV
Analogue TV, AV1/3
Component/RGB
HDMI
AV2
AV1
(TV Out)
XO O
OO O
OX
XX
OO O
AV2
(Monitor Out)
AV2
(When DTV scheduled recording is in
progress using recording equipment.)
GG
TV Out : Outputs analogue
TV signals.
Monitor Out: Outputs
the current screen image.
(The input mode is converted to
DTV.)
Output Type
Current
input mode

LG 19LG3100 Specifications

General

Audio system	SRS TruSurround
RMS rated power	6 W
Number of speakers	2
Child lock	Yes
Package weight	6200 g
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
Product color	White
LED indicators	Stand-by
Sustainability certificates	ENERGY STAR
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Contrast ratio (dynamic)	8000:1
Display diagonal (metric)	48 cm
Power consumption (standby)	1 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth (with stand)	189.2 mm
Width (with stand)	458.8 mm
Height (with stand)	391 mm
Weight (with stand)	5000 g
Depth (without stand)	85.4 mm
Height (without stand)	344.5 mm
Weight (without stand)	4800 g
