LG 32PC5 series User Manual

15
PREPARATION
ANTENNA
IN
AV 1 AV 2

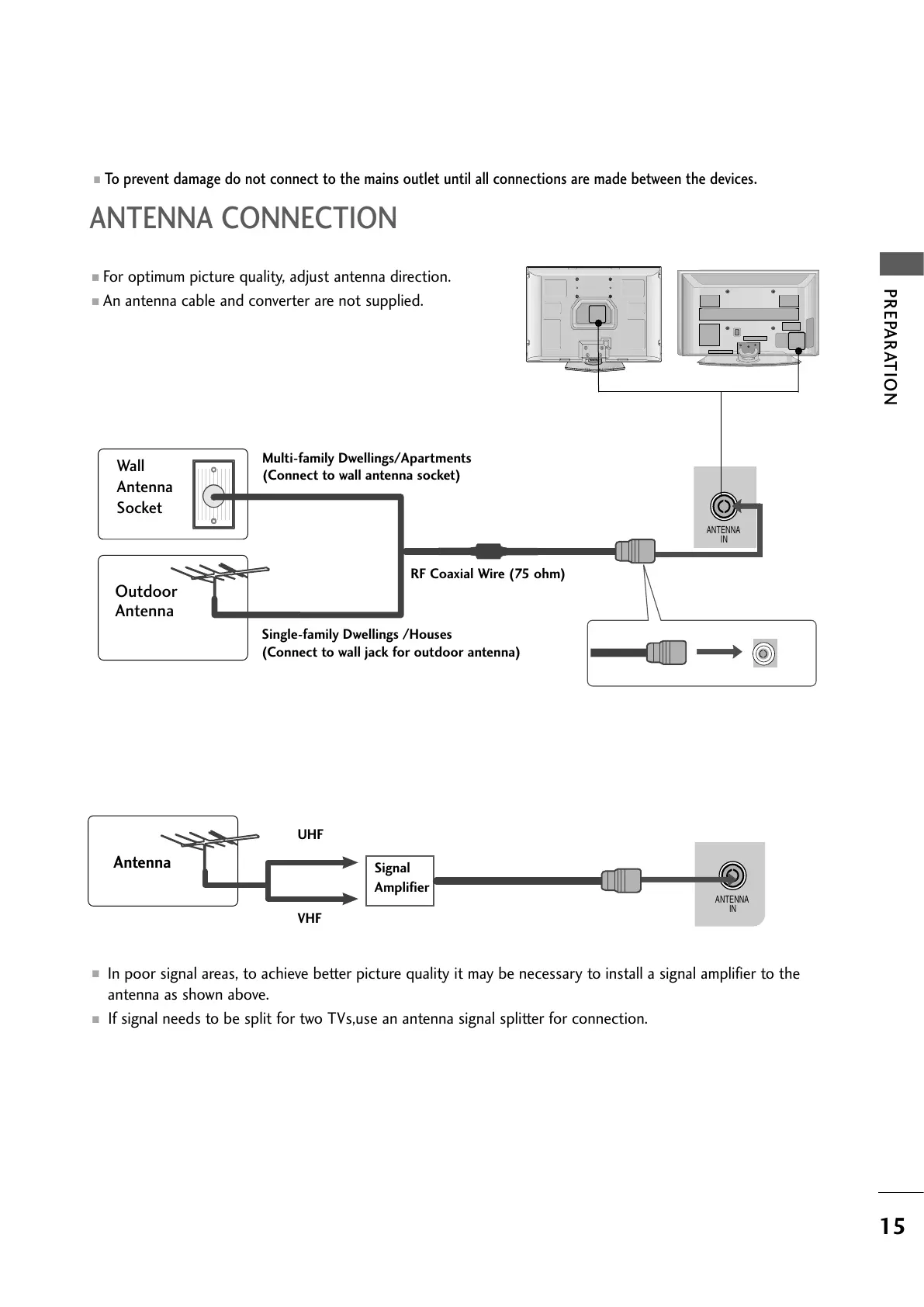

ANTENNA CONNECTION
■
For optimum picture quality, adjust antenna direction.
■
An antenna cable and converter are not supplied.
■
To prevent damage do not connect to the mains outlet until all connections are made between the devices.
ANTENNA
IN
AV 1 AV 2
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Antenna
UHF
Signal
Amplifier
VHF
■
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the
antenna as shown above.
■
If signal needs to be split for two TVs,use an antenna signal splitter for connection.
VIDEO
AUDIO
COMPONENT IN
HDMI INHDMI/DVI IN
12
RGB IN (PC)
ANTENNA
IN
1
2
VARIABLE
OUT
AUDIO IN
(RGB/DVI)
AV O UT AV IN
L/MONO
R
AUDIO
VIDEO
VIDEO
AUDIO
COMPONENT IN
HDMI INHDMI/DVI IN
12
RGB IN (PC)
ANTENNA
IN
1
2
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
AV OUT AV IN
L/MONO
R
AUDIO
VARIABLE AUDIO OUT
VIDEO
AUDIO
AV
VIDEO
VARIABLE AUDIO OUT
