LG 32PC5 series User Manual

19
EXTERNAL EQUIPMENT SETUP

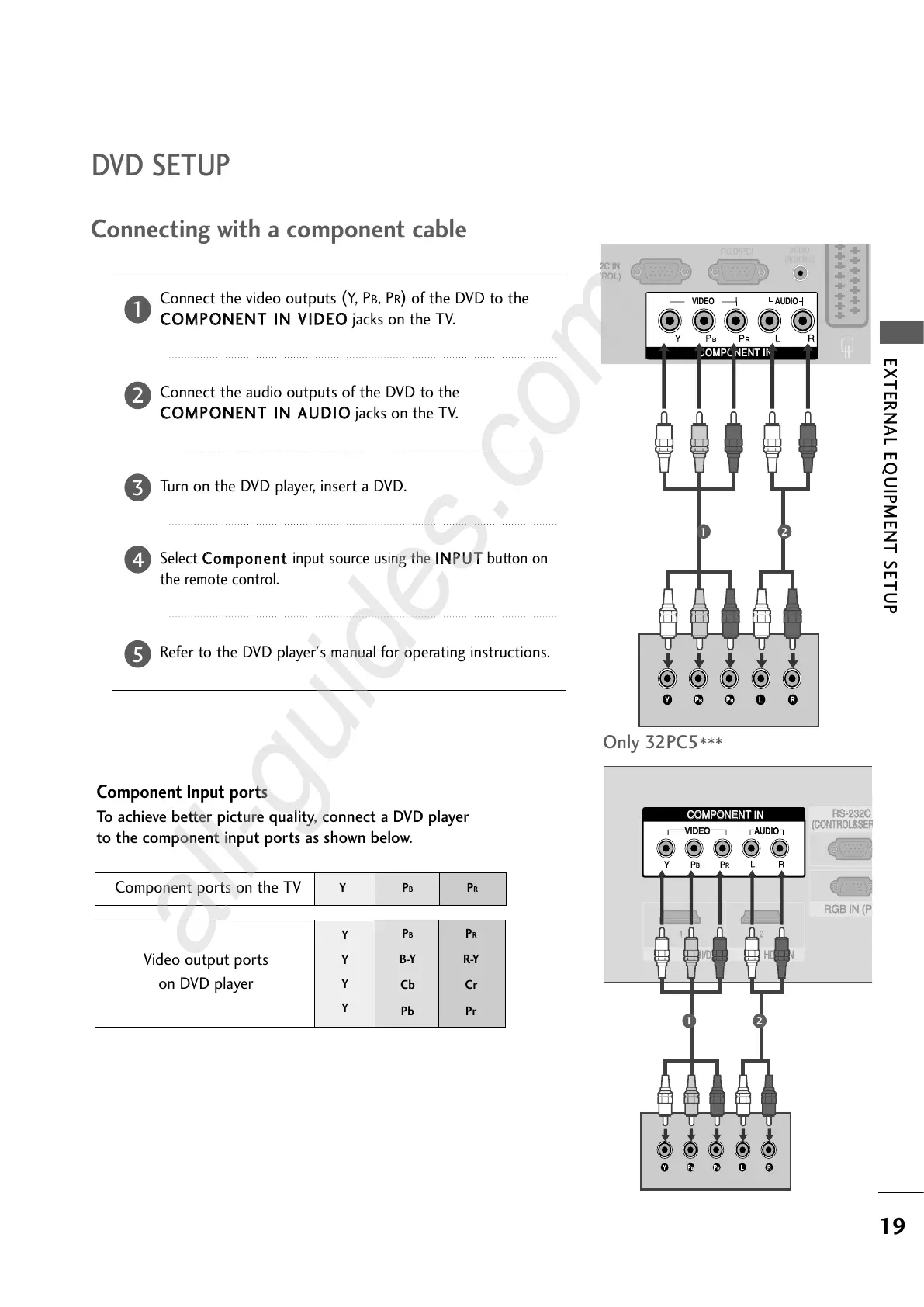

DVD SETUP
Connecting with a component cable
Component Input ports
To achieve better picture quality, connect a DVD player
to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video outputs
(
Y, PB
, PR
)
of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the TV.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the TV.
Turn on the DVD player, insert a DVD.
Select
CCoommppoonneenntt
input source using the
IINNPPUUTT
button on
the remote control.
Refer to the DVD player's manual for operating instructions.
2
3
4
5
1
2C IN
TROL)
AUDIO
(RGB/DVI)
RGB (PC)
COMPONENT IN
VIDEO
AUDIO
AV 1 AV 2
1 2
VIDEOVIDEO
AUDIO
COMPONENTCOMPONENT IN
HDMI INHDMI INHDMI/DVI INHDMI/DVI IN
1 2
AV 2 AV 1
RGB IN (PRGB IN (PC)
RS-232C RS-232C IN
(CONTROL&SER(CONTROL&SERVICE)
AUDIO IN
(RGB/DVI)
ANTENNA
IN
1 2
Only 32PC5
***
