EXTERNAL CONTROL DEVICE SETUP
APPENDIX
RS-232C Setup

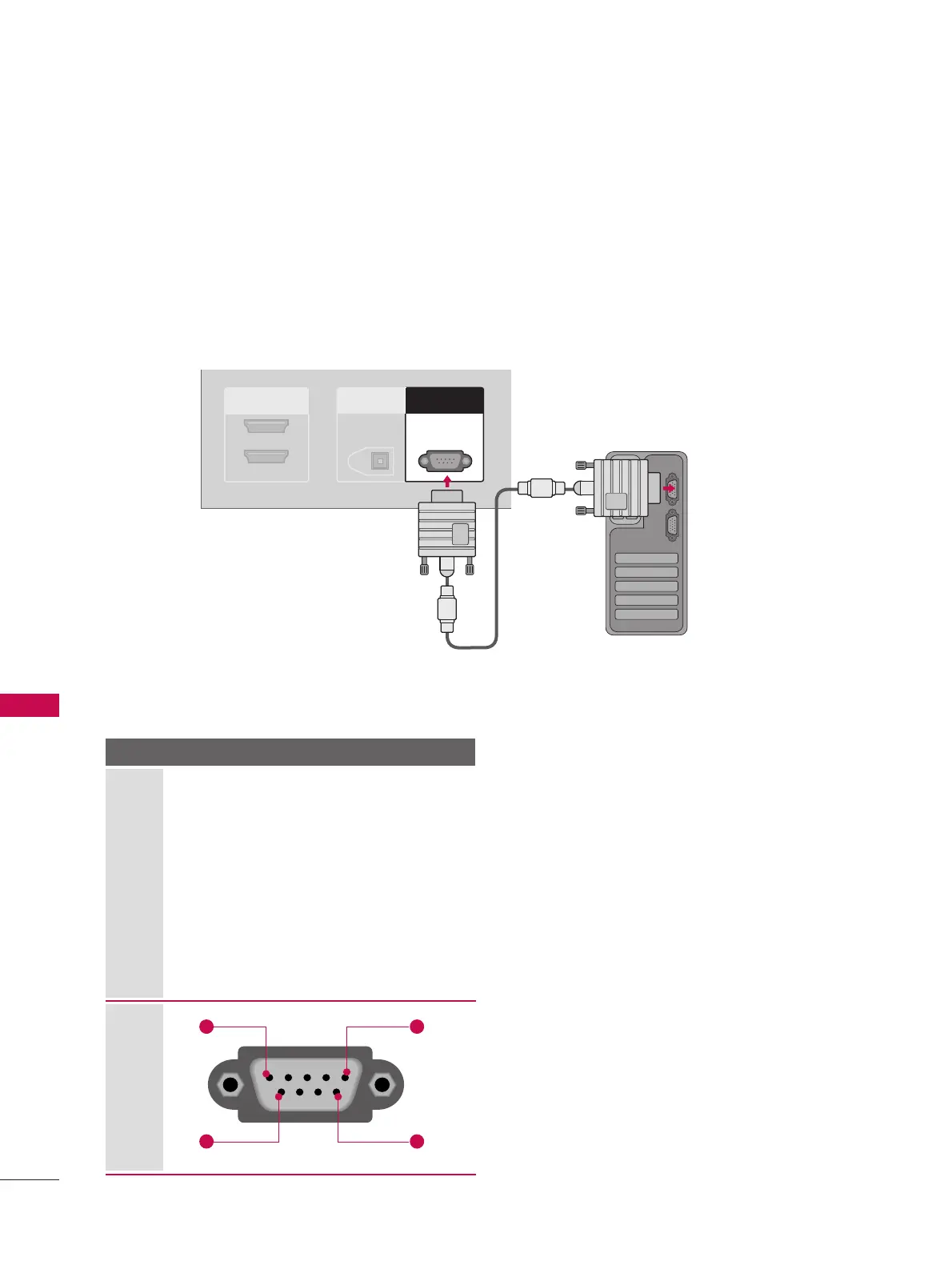

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V
control system) to control the TV’s functions externally.
Note: RS-232C connection cables are not supplied with the TV.
HDMI IN
DIGITAL AUDIO
OUT
OPTICAL
2
1 (DVI)
RS-232C INRS-232C IN
(CONTROL(CONTROL & SERVICE)SERVICE)
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1 5
6 9
